PLAN 120-244
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description
This spacious home comes complete with plans for a guest house that's perfect for visitors or live-in relatives with a kitchenette, full bathroom, and loft. In the main house, everyone will love to gather in the family room and open kitchen. Special meals will take place in the spacious dining room, within view of the lovely entry hall and rotunda, and within easy serving distance from the butler's pantry and kitchen. When quiet work is in order, retreat to the library where there's a surprise: a hidden desk! The master suite offers an enormous walk-in closet, a luxurious bath, and even a coffee kitchen. Nearby, a safe room is accessed from a secret cabinet.
Floor Plans

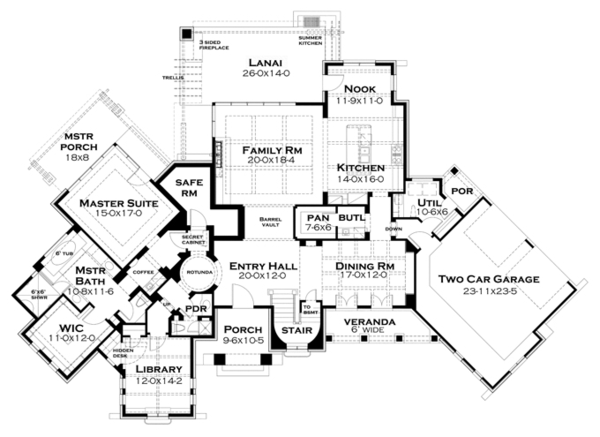

Floor Plan - Other Floor

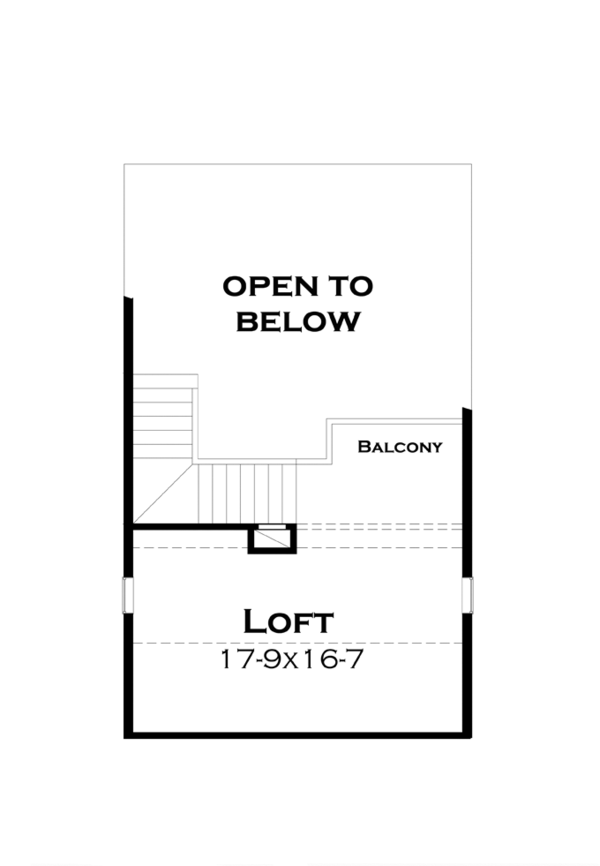

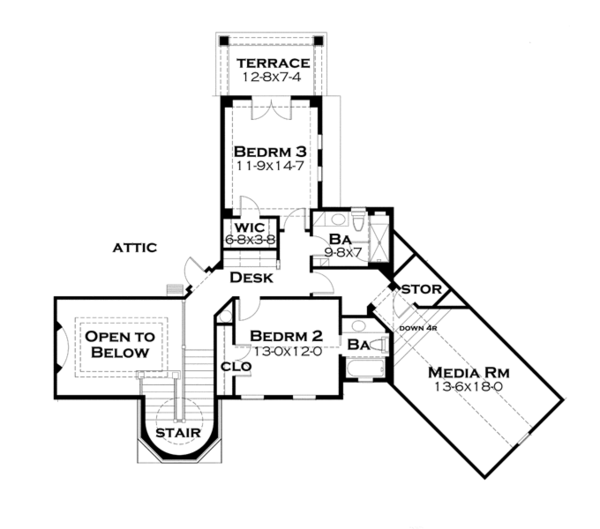

Floor Plan - Upper Floor

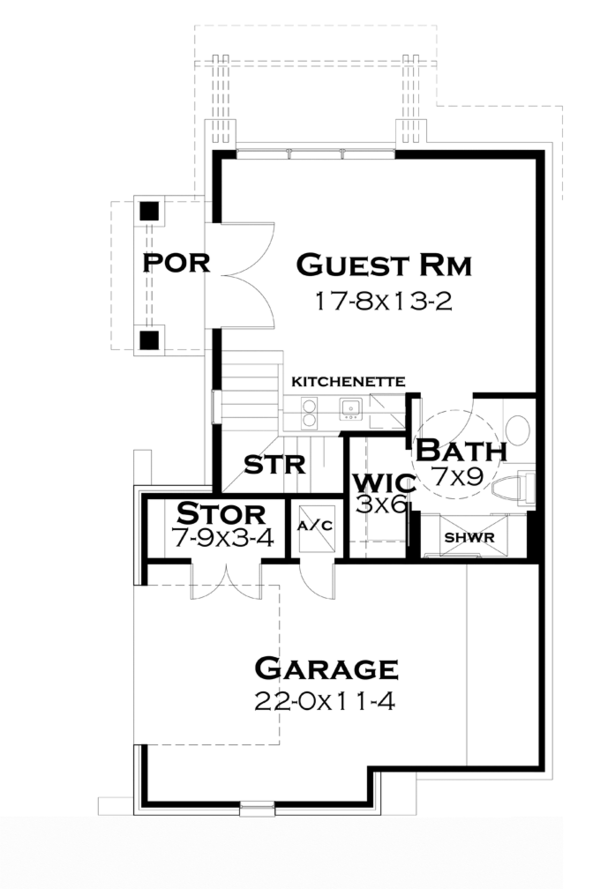

Floor Plan - Main Floor
Floor Plan - Upper Floor
Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 75' 5"
Height : 27' 5"
Width : 106' 7"
Height : 27' 5"
Width : 106' 7"
Area
Bonus: 673 sq/ft
First Floor: 2886 sq/ft
Garage: 598 sq/ft
Second Floor: 1041 sq/ft
First Floor: 2886 sq/ft
Garage: 598 sq/ft
Second Floor: 1041 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 6:12
Roof Framing : Conventional
Roof Type : Composition
Secondary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Composition
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Stone/Stucco
Framing : Wood - 2x6
Framing : Wood - 2x6
Bedroom Features
Cabana
Fireplace
Formal Dining Room
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Fireplace
Formal Dining Room
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Kitchen Island
Walk In Pantry Cabinet Pantry
Butler's Pantry
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Media Room
Open Floor Plan
Safe Room / Hidden Room
Storage Area
Unfinished Future Space
Vaulted / Cathedral Ceilings
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Media Room
Open Floor Plan
Safe Room / Hidden Room
Storage Area
Unfinished Future Space
Vaulted / Cathedral Ceilings
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
Courtyard
Covered Front Porch
Covered Rear Porch
Deck
Grill Deck Sundeck
Outdoor Fireplace
Outdoor Kitchen Grill
Courtyard
Covered Front Porch
Covered Rear Porch
Deck
Grill Deck Sundeck
Outdoor Fireplace
Outdoor Kitchen Grill
Rooms
Bath 3:
width 9' 8" x depth 7'
Bedroom 2:
width 13' x depth 12'
Bedroom 3:
width 11' 9" x depth 14' 7"
Bedroom 3 Closet:
width 61' 8" x depth 3' 8"
Bonus / Casita:
673 sq/ft
Dining Room:
width 17' x depth 12'
Entry:
width 20' x depth 12'
Family Room:
width 20' x depth 18' 4"
Garage:
598 sq/ft width 23' 11" x depth 23' 5"
Kitchen:
width 14' x depth 16'
Lanai:
width 26' x depth 14'
Library:
width 12' x depth 14' 2"
Master Bath:
width 10' 8" x depth 11' 6"
Master Bedroom:
width 15' x depth 17'
Master Closet:
width 11' x depth 12'
Master Porch:
width 18' x depth 8'
Media:
width 13' 6" x depth 18'
Nook:
width 11' 9" x depth 11'
Porch Front:
225 sq/ft width 9' 6" x depth 10' 5"
Utility:
width 10' 6" x depth 6'
Utility Porch:
36 sq/ft
What's Included In This Plan Set
- Designer offers a 2nd Build License for $395 with a PDF purchase as well as an Unlimited License for $395 with the purchase of a CAD.
- Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
- Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
- Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
- Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances.
- Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
- Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
- Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.
