PLAN 17-3341
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Full Specs & Features
Dimension
Depth : 65' 2"
Height : 31'
Width : 91' 4"
Height : 31'
Width : 91' 4"
Area

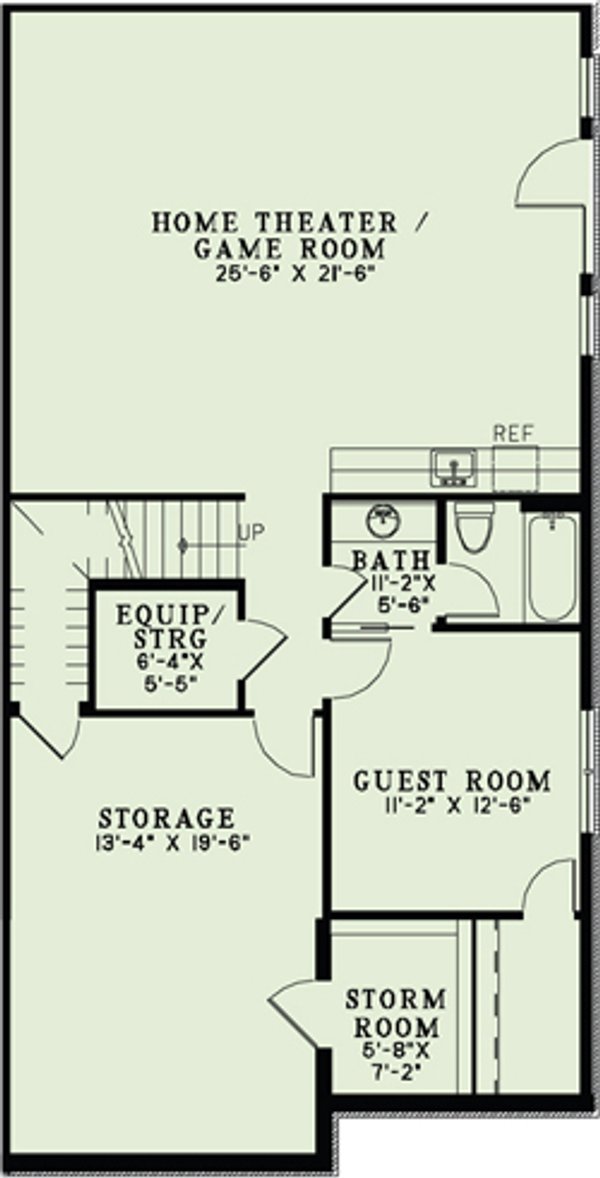

Basement Living: 1360 sq/ft height 8'

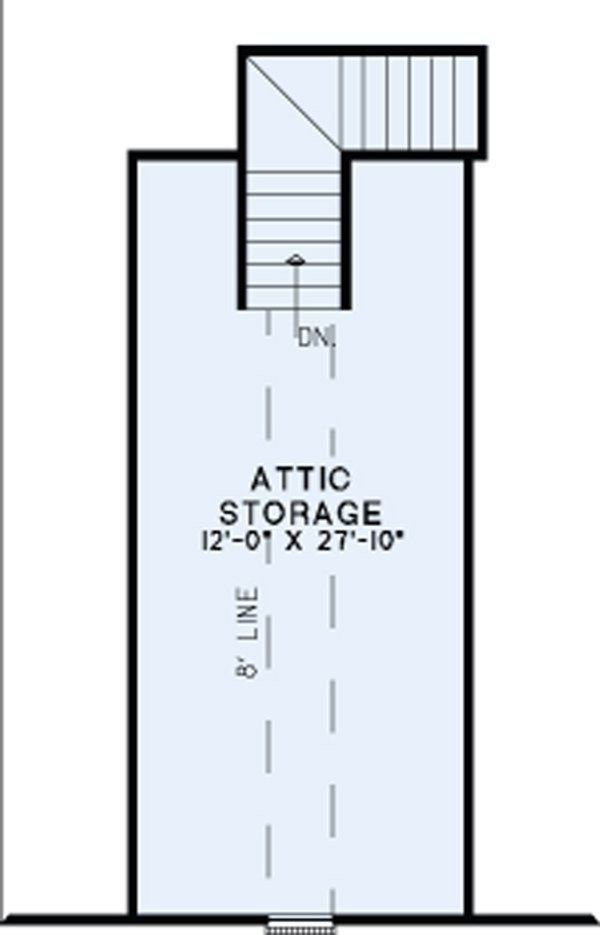

Bonus: 339 sq/ft height 8'

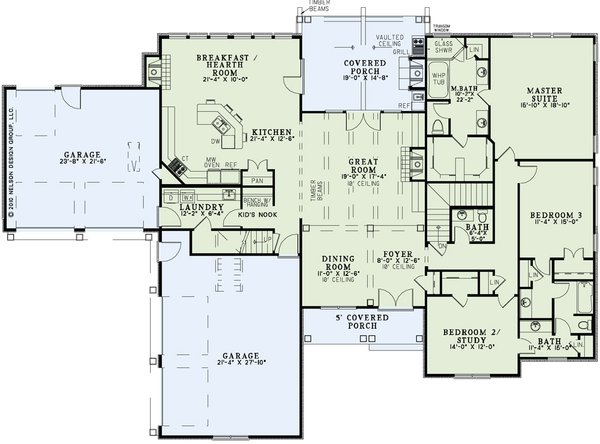

First Floor: 2618 sq/ft height 8'
Garage: 1196 sq/ft height 8'
Porch: 387 sq/ft
Bonus: 339 sq/ft height 8'
First Floor: 2618 sq/ft height 8'
Garage: 1196 sq/ft height 8'
Porch: 387 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Guest Suite
Main Floor Master Bedroom
Walk In Closet
Formal Dining Room
Guest Suite
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Media Room
Open Floor Plan
Storage Area
Unfinished Future Space
Vaulted / Cathedral Ceilings
Workshop
Great Room Living Room
Main Floor Laundry
Media Room
Open Floor Plan
Storage Area
Unfinished Future Space
Vaulted / Cathedral Ceilings
Workshop
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Rear Porch
Grill Deck Sundeck
Grill Deck Sundeck
Rooms
Bathroom 2:
169 sq/ft width 11' 4" x depth 15'
Bedroom 2:
168 sq/ft width 14' x depth 12'
Bedroom 3:
169 sq/ft width 11' 4" x depth 15'
Breakfast:
213 sq/ft width 21' 4" x depth 10'
Covered Porch:
278 sq/ft width 19' x depth 14' 8"
Dining Room:
137 sq/ft width 11' x depth 12' 6"
Foyer:
100 sq/ft width 8' x depth 12' 6"
Garage:
508 sq/ft width 23' 8" x depth 21' 6"
Garage Two:
593 sq/ft width 21' 4" x depth 27' 10"
Great Room:
329 sq/ft width 19' x depth 17' 4"
Half Bathroom:
31 sq/ft width 6' 4" x depth 5'
Kitchen:
266 sq/ft width 21' 4" x depth 12' 6"
Laundry Room:
77 sq/ft width 12' 2" x depth 6' 4"
Master Bathroom:
225 sq/ft width 10' 2" x depth 22' 2"
Master Suite:
298 sq/ft width 15' 10" x depth 18' 10"
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
- Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
