Full Specs & Features
Depth : 71'
Height : 32'
Width : 89' 4"

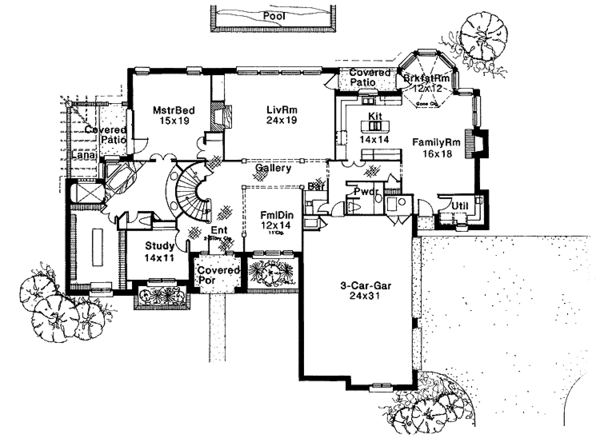

First Floor: 2997 sq/ft

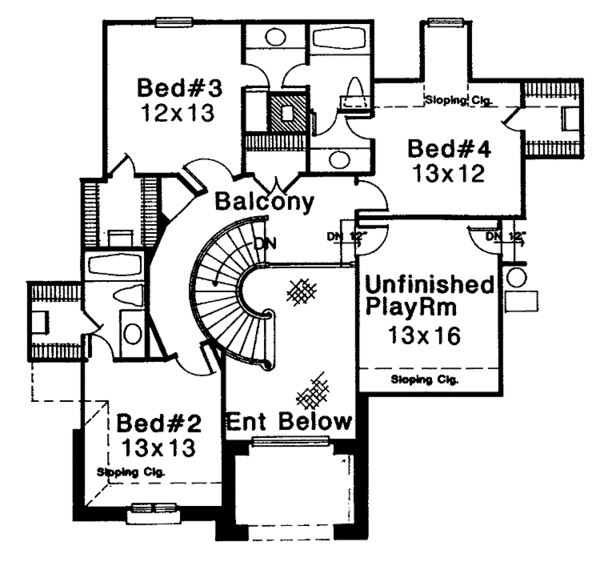

Second Floor: 983 sq/ft
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x6
Formal Dining Room
Formal Living Room / Parlor
Additional Room Features
Den Office Study Computer
169 sq/ft width 13' x depth 13'
156 sq/ft width 12' x depth 13'
156 sq/ft width 13' x depth 12'
168 sq/ft width 12' x depth 14'
288 sq/ft width 16' x depth 18'
744 sq/ft width 24' x depth 31'
196 sq/ft width 14' x depth 14'
456 sq/ft width 24' x depth 19'
285 sq/ft width 15' x depth 19'
154 sq/ft width 14' x depth 11'
What's Included In This Plan Set

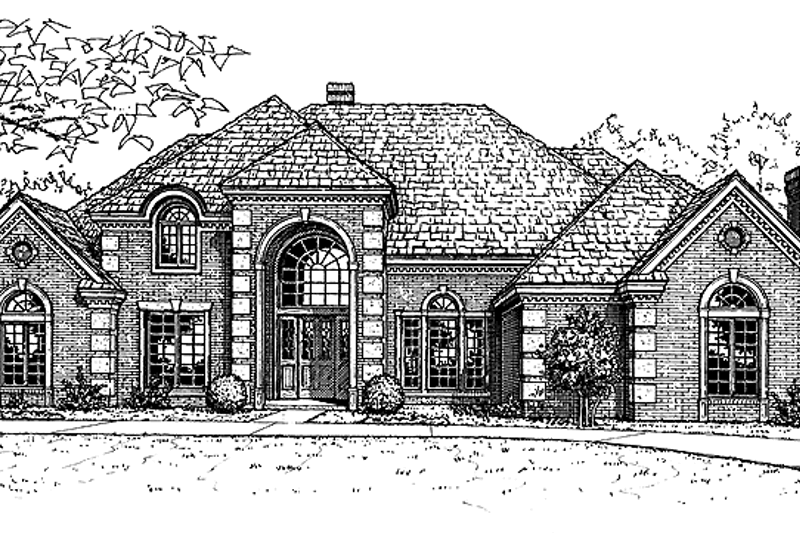

- Cover Sheet: Showing architectural rendering of residence
- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.
- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
