PLAN 929-947

Home > Style > Tudor

Key Specs

3983
sq ft

4
Beds

4.5
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

A hint of Tudor flair adorns the exterior of this hillside walkout estate home, most visibly in the stucco-and-timber detailed central gable but also in the style of the windows. An abundance of bay windows also creates interesting turret-like details on the roof. Inside, you'll find spacious living accommodations on three levels. The main floor features the great room, oversize dining room, and gourmet kitchen complete with a walk-in pantry and massive island. Nearby is a generous screen porch with a grill and sink. The super-deluxe master suite offers a private porch, luxurious bathroom, and easy access to the study (or guest room). Two more bedrooms and a spacious rec room with window seats wait on the lower level, accessed by the elevator or the staircase. A huge bonus room offers more space above the garage.

Floor Plans

Floor Plan - Main Floor

Reverse

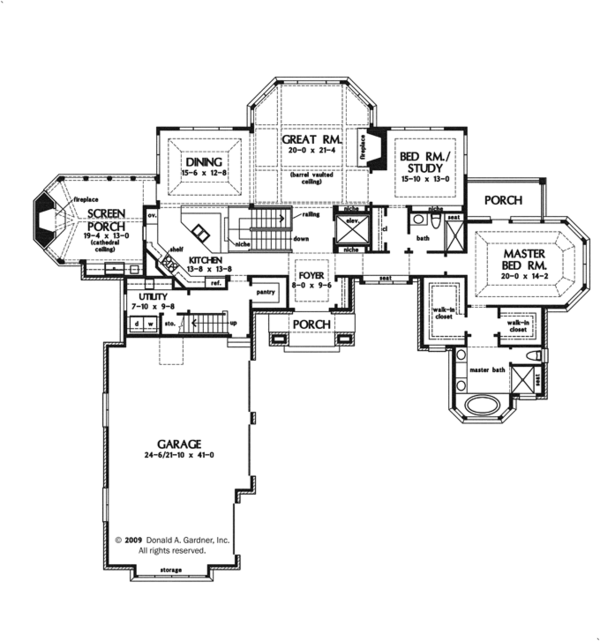

Home Plan - Tudor Floor Plan - Main Floor Plan #929-947

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Lower Floor

Reverse

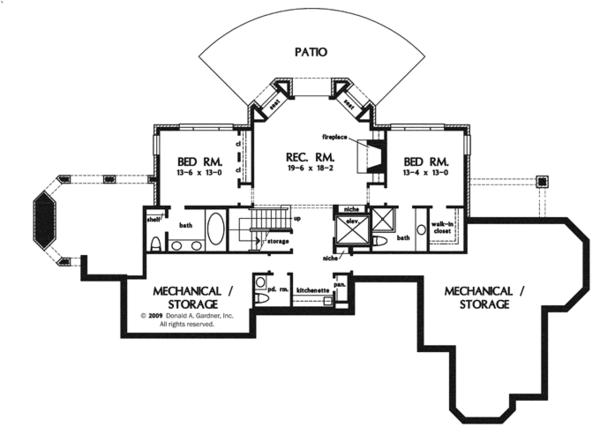

Home Plan - Tudor Floor Plan - Lower Floor Plan #929-947

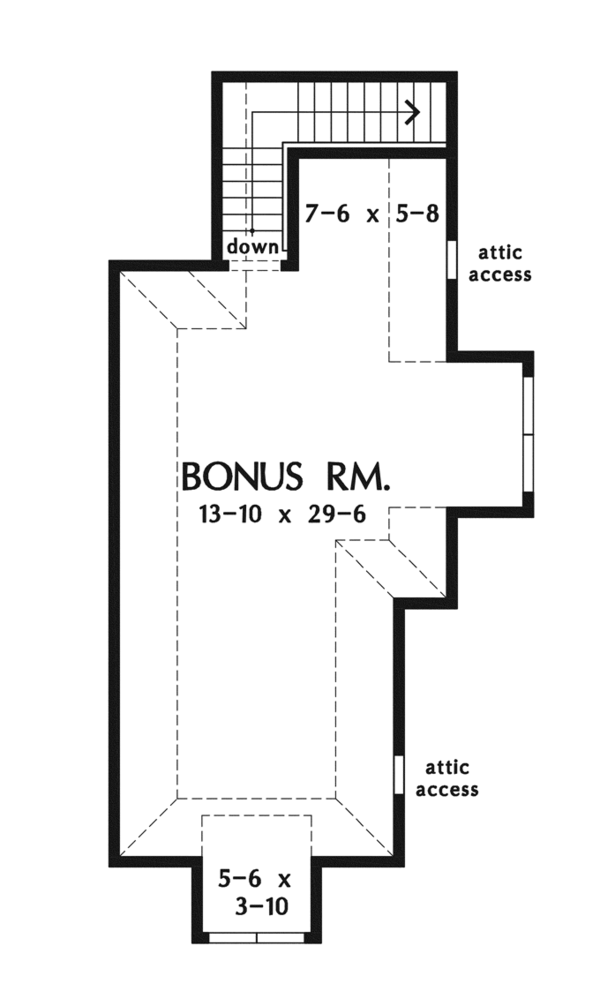

Floor Plan - Other Floor

Reverse

Full Specs & Features

Dimension

Depth : 86'

Height : 45' 4"

Width : 95' 1"

Area

Basement Living: 1482 sq/ft height 9'

Basement Unfinished: 976 sq/ft

Bonus: 604 sq/ft height 9'

First Floor: 2501 sq/ft height 10'

Garage: 1022 sq/ft height 9'

Patio: 432 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 14:12

Roof Framing : Conventional

Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Stone/Stucco

Framing : Wood - 2x6

Bedroom Features

Fireplace

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Hobby Rec Room Game Room

Main Floor Laundry

Open Floor Plan

Storage Area

Sunroom

Unfinished Future Space

Vaulted / Cathedral Ceilings

Garage Features

Side Entry Garage

Outdoor Spaces

Courtyard

Covered Rear Porch

Screened Porch

Wheelchair Adaptable

Rooms

Bedroom 2:

width 15' 10" x depth 13'

Bedroom 3:

width 13' 6" x depth 13'

Bedroom 4:

width 13' 4" x depth 13'

Dining:

width 15' 6" x depth 12' 6"

Foyer:

width 8' x depth 9' 6"

Garage:

1022 sq/ft width 24' 6" x depth 40'

Great Room:

width 20' x depth 21' 4"

Kitchen:

width 13' 8" x depth 13' 8"

Master Bedroom:

width 20' x depth 14' 2"

Porch Screened:

302 sq/ft width 19' 4" x depth 13'

Rec. Room:

width 19' 6" x depth 18' 2"

Utility:

width 7' 10" x depth 9' 8"

What's Included In This Plan Set

See a sample plan set

This designer charges $49.00 to review plan changes and prepare an estimate for your modifications. This fee can be applied to your plan modifications once you move forward with the service. Please call if you would like to order a Plan Modification quote.

Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.

Cover Sheet - A rendering of the front exterior of the house.
Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
Door and window schedules - Sizes, quantities and descriptions of all doors and windows shown on the plan.
Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
Each plan is designed to be consistent with CABO One and Two Family Dwelling Code or the International Residential Code in effect at the time the plan was created. Modifications may be necessary to meet applicable building codes, ordinances, local climatic, and geographical design criteria. Consult a builder, architect or other construction professional as necessary. Manufacturer instructions should be followed for all materials, appliances, and systems. Heating/air conditioning layouts, plumbing pipe layouts, and electrical wiring layouts are not included. Consult a local mechanical contractor for systems suitable for local climate conditions.

Questions? Call 1-888-447-1946
