Full Specs & Features
Depth : 82' 2"
Height : 28' 5"
Width : 112'

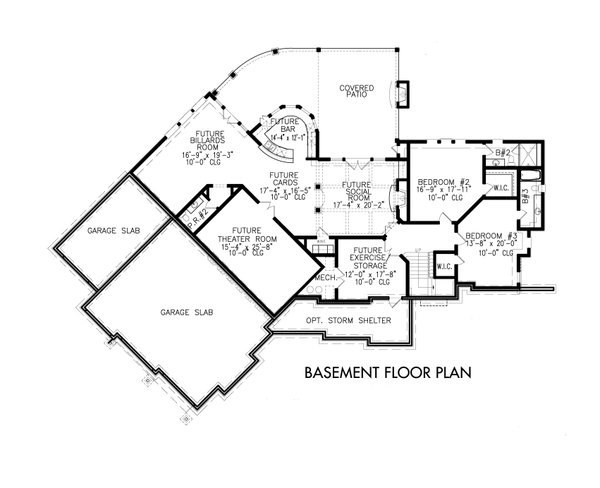

Basement : 928 sq/ft
Garage : 1317 sq/ft

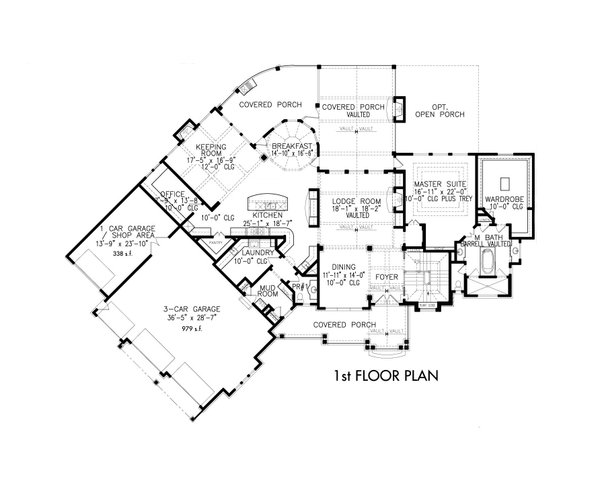

Main Floor : 3071 sq/ft
Ceiling Details : Basement - 10'
Main Ceiling : 10'
Exterior Wall Framing
Framing : 2x4
Main Floor Bedrooms
Main Floor Master Bedroom
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Covered Front Porch
Covered Rear Porch
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
