PLAN 1073-40

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description


Turn your backyard into a wealth generating income or provide a loved one their own space to be close and independent with this extremely economical 400 square foot accessory structure. This model features a fully functional 5pc Kitchen, full bathroom, spacious sleeping and living area, stacked laundry, water heater, lots of natural light and a Mini-Split Heater / Air conditioner for optimal temperature control.

Full Specs & Features


Dimension

Depth : 20'

Height : 14' 6"

Width : 20'

Area

Main Floor : 400 sq/ft

Porch : 80 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Center dormer raises portion of ceiling height to 11'-6"

Main Ceiling : 8' 1"

Roof

Primary Pitch : 6:12

Roof Framing : Conventional

Roof Load : 30LL / 15DL

Roof Type : Truss & Stick

Secondary Pitch : 2:12

Exterior Wall Framing

Exterior Wall Finish : SIDING

Framing : 2 x 4

Insulation : R-13

Bedroom Features

Main Floor Bedrooms

Kitchen Features

Eating Bar

Additional Room Features

Main Floor Laundry

Lot Characteristics

Suited For Corner Lot

Suited For Narrow Lot

Suited For Sloping Lot

Suited For View Lot

Zero Lot Lines

Outdoor Spaces

Covered Front Porch

More

Economical To Build

Empty Nester

Suited For Vacation Home

Wheelchair Adaptable

Energy Efficient Features

Energy Efficient Design

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

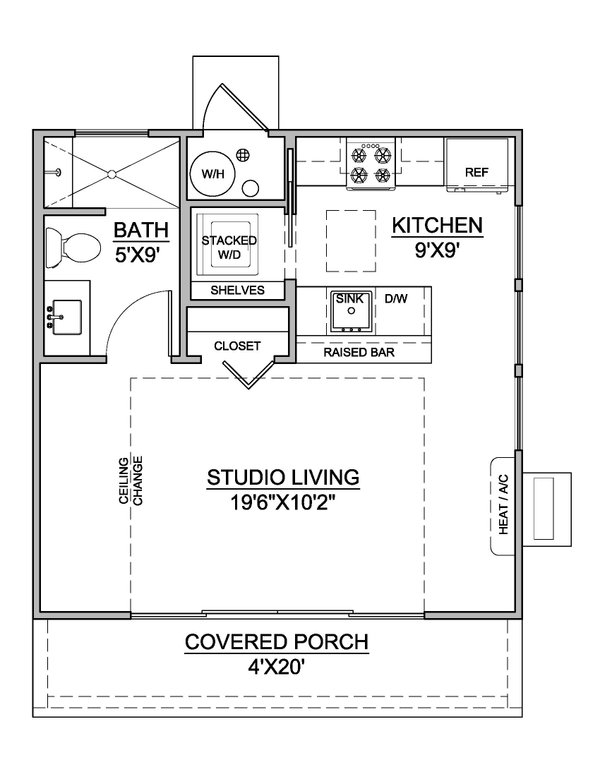

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
