PLAN 927-420

Key Specs

4003
sq ft

3
Beds

3.5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

Craftsman details grace the facade of this two-story cottage; a three-car, side-entry garage maximizes its curb appeal. A broad front porch is lined with double doors: one set leads to the foyer, and the other two may be thrown open to give the formal dining room the feel of a sidewalk cafe. The attention given to architectural detail enhances the sense of luxury throughout the home. The vaulted grand room features built-in cabinetry and a wall of windows overlooking the deck; it shares a through-fireplace with the breakfast nook. The casual living space forms an "L" with the fabulous open kitchen in the corner. It features a massive island snack bar which unites the kitchen, the nook, and the keeping room. The master suite occupies the opposite wing of the lower level; with no rooms above, it offers maximum peace and solitude. Upstairs are two bedrooms, each with a built-in window seat, walk-in closet, and private bath. A bonus room and bath may be finished as a fourth bedroom or rec room.

Special offer for builders! Select a CAD, PDF, or Reproducible format, and you will receive an unlimited use license at no additional cost. Build as many times as you like with no re-use fees! This offer only applies to plans bearing this note. Unless explicitly noted, a purchased plan may only be built once. An unlimited use license is not transferable.

Floor Plans

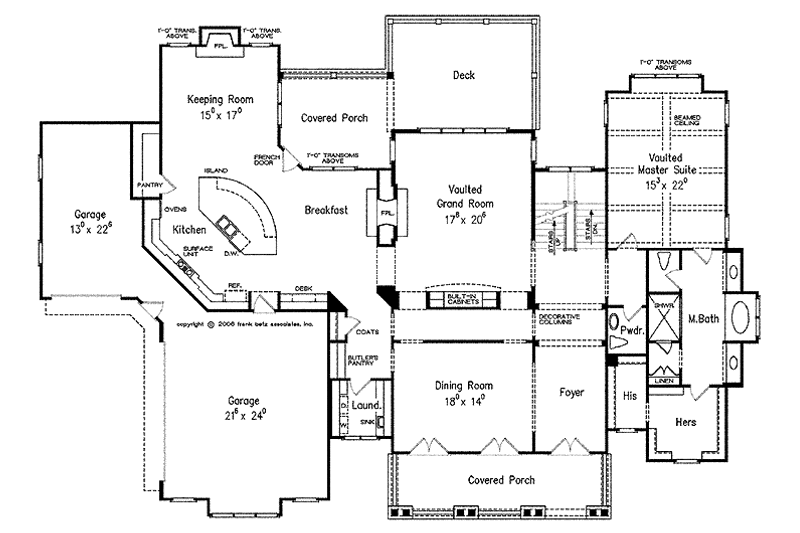

Floor Plan - Main Floor Plan

Reverse

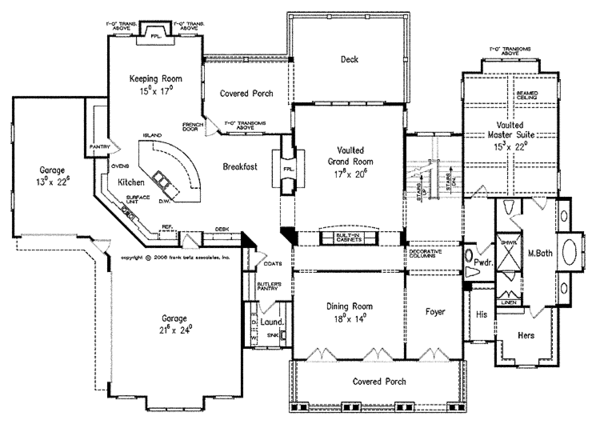

Craftsman Floor Plan - Main Floor Plan Plan #927-420

Floor Plan - Upper Floor Plan

Reverse

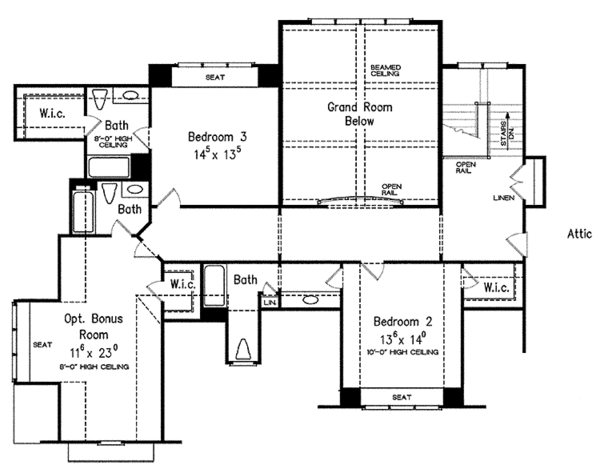

Craftsman Floor Plan - Upper Floor Plan Plan #927-420

Full Specs & Features

Dimension

Depth : 63' 4"
Height : 30'
Width : 93'

Area

Bonus: 429 sq/ft
First Floor: 2908 sq/ft height 10'
Garage: 877 sq/ft
Second Floor: 1095 sq/ft height 9'

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : Wood - 2x4

Bedroom Features

Fireplace
Formal Dining Room
Main Floor Master Bedroom

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room
Main Floor Laundry

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Rooms

Bedroom 2:

189 sq/ft width 13' 6" x depth 14'

Bedroom 3:

193 sq/ft width 14' 5" x depth 13' 5"

Bonus Room - Finished:

264 sq/ft width 11' 6" x depth 23'

Breakfast Room:

204 sq/ft width 13' x depth 15' 9"

Dining Room:

252 sq/ft width 18' x depth 14'

Family Room:

362 sq/ft width 17' 8" x depth 20' 6"

Foyer:

126 sq/ft width 9' x depth 14'

Garage:

516 sq/ft width 21' 6" x depth 24'

Garage Two:

292 sq/ft width 13' x depth 22' 6"

Keeping Room:

255 sq/ft width 15' x depth 17'

Kitchen:

242 sq/ft width 17' x depth 14' 3"

Laundry Room:

58 sq/ft width 8' x depth 7' 3"

Master Bathroom:

245 sq/ft width 14' x depth 17' 6"

Master Bedroom:

335 sq/ft width 15' 3" x depth 22'

Master Closet - Hers:

94 sq/ft width 10' x depth 9' 5"

Master Closet - His:

47 sq/ft width 5' x depth 9' 5"

Porch:

183 sq/ft width 14' 8" x depth 12' 6"

What's Included In This Plan Set

See a sample plan set

Purchasing a CAD set, PDF set, or Reproducible set, gives you an unlimited build license. All other plan sets, allow you to build the home one time.
All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.

» See important information before purchasing.

Questions? Call 1-888-447-1946

Plan Set

5 Copy Set : $1625.00	5 printed plan sets mailed to you.
8 Copy Set : $1775.00	8 printed plan sets mailed to you.
PDF Set : $1925.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set : $2020.00	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set : $3670.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace: $0.00	Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Daylight Basement: $0.00	Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x4:
$0.00

Wood 2x4

Additional Options

Right-Reading Reverse : $250.00	Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets : $45.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $100.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $39.00	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $200.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Material List : $85.00	A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets : $55.00	A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
