PLAN 54-308
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

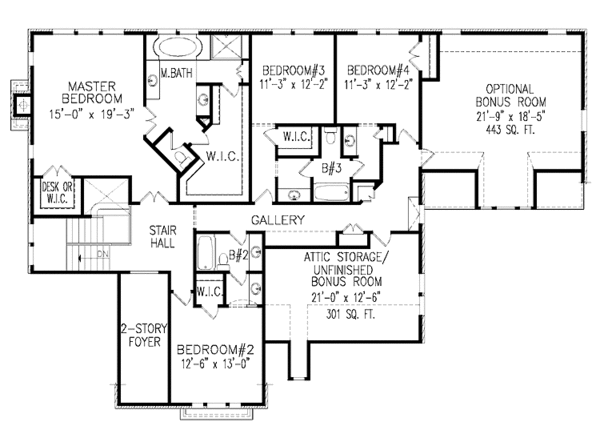

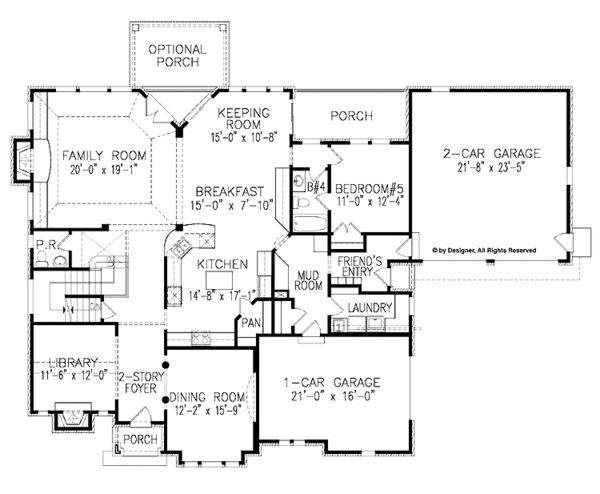

Floor Plans
Full Specs & Features
Dimension
Depth : 53' 11"
Height : 34' 10"
Width : 79' 2"
Area
Bonus: 443 sq/ft
First Floor: 2090 sq/ft
Garage: 862 sq/ft
Second Floor: 1923 sq/ft
Storage: 301 sq/ft
Roof
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Unfinished Future Space
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
187 sq/ft width 12' 6" x depth 15'
Bedroom 3:
136 sq/ft width 11' 3" x depth 12' 2"
Bedroom 4:
136 sq/ft width 11' 3" x depth 12' 2"
Bedroom 5:
135 sq/ft width 11' x depth 12' 4"
Bonus Room - Finished:
400 sq/ft width 21' 9" x depth 18' 5"
Breakfast:
42 sq/ft width 15' x depth 2' 10"
Dining Room:
190 sq/ft width 12' 2" x depth 15' 8"
Family Room:
381 sq/ft width 20' x depth 19' 1"
Garage:
507 sq/ft width 21' 8" x depth 23' 5"
Garage Two:
336 sq/ft width 21' x depth 16'
Keeping Room:
160 sq/ft width 15' x depth 10' 8"
Kitchen:
250 sq/ft width 14' 8" x depth 17' 1"
Library:
138 sq/ft width 11' 6" x depth 12'
Master Bedroom:
288 sq/ft width 15' x depth 19' 3"
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1615.50
$2740.50
$2826.00
Foundation
$0.00
$0.00
$315.00
Framing
$0.00
$315.00
Additional Options
$225.00
$90.00
$35.10
$180.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
