Plan Description
This traditional garage plan can house up to 3 cars and has a small living area on the right side. The door that is set back is 8' wide and 7' tall, and the other door is 16' wide and 7' tall. On the right side is a great room, bedroom and full bathroom.
Please Note: Exterior framing around garage portion of the design is 2x4 while the living area indicates 2x6 exterior wall framing.
Floor Plans

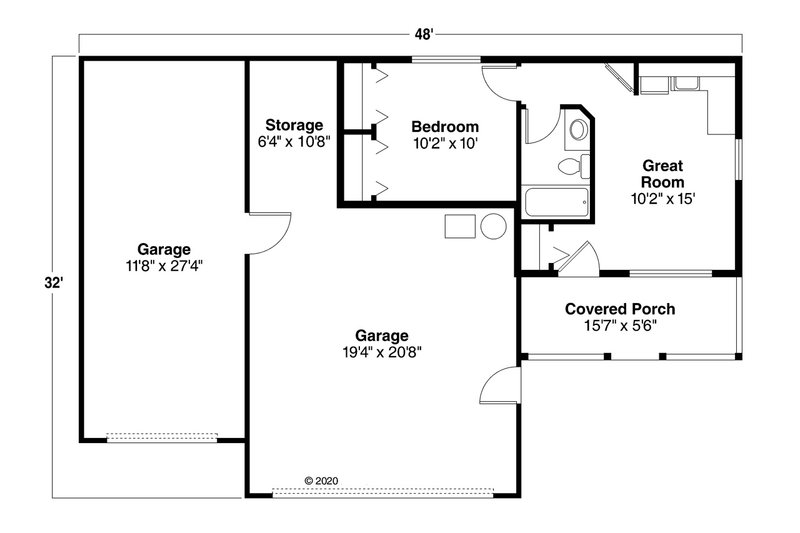

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 32'
Height : 19'
Width : 48'
Area
First Floor: 405 sq/ft height 8'
Garage: 827 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 7:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2x6
Bedroom Features
Main Floor Bedrooms
Additional Room Features
Great Room Living Room
Garage Features
Oversized Garage
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Code Compliance
Irc 2006
Structural Information Provided
Foundation Drawing
Structural 1st Floor Framing
Structural Roof Framing
Rooms
Bedroom 1:
101 sq/ft width 10' 2" x depth 10'
Garage:
605 sq/ft width 19' 4" x depth 31' 4"
Garage Two:
318 sq/ft width 11' 8" x depth 27' 4"
Great Room:
152 sq/ft width 10' 2" x depth 15'
