PLAN 84-508
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

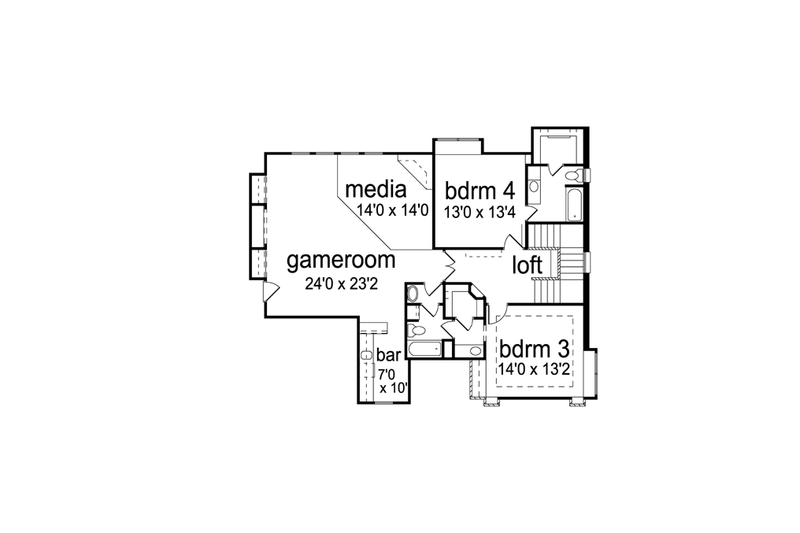

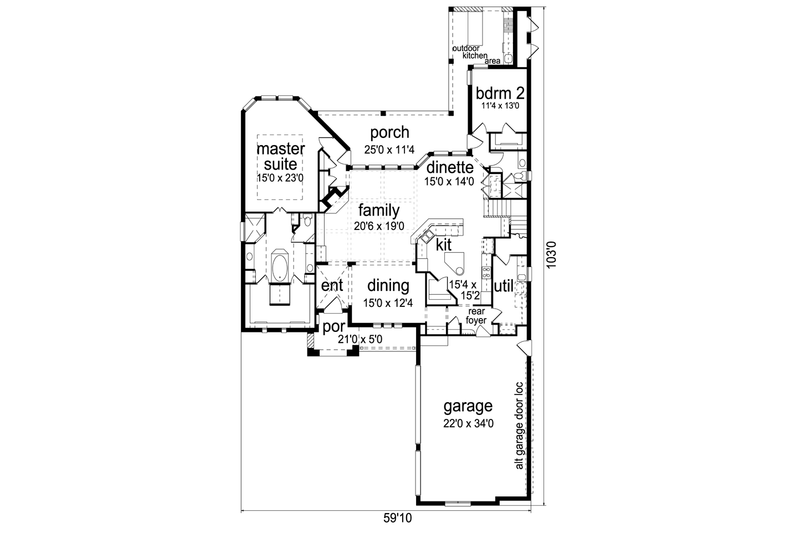

Floor Plans
Full Specs & Features
Dimension
Depth : 103'
Height : 33'
Width : 59' 10"
Area
First Floor: 2589 sq/ft height 10'
Second Floor: 1464 sq/ft height 8'
Ceiling
Garage Ceiling : 8'
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 14:12
Roof Framing : stick
Roof Type : gables
Exterior Wall Framing
Exterior Wall Finish : Brick, Stucco
Framing : 2"x4"
Bedroom Features
Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Media Room
Mud Room
Wet Bar
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
Code Compliance
Irc 2003
Rooms
Bar:
70 sq/ft width 7' x depth 10'
Bedroom 2:
147 sq/ft width 11' 4" x depth 13'
Bedroom 3:
184 sq/ft width 14' x depth 13' 2"
Bedroom 4:
173 sq/ft width 13' x depth 13' 4"
Dinette:
210 sq/ft width 15' x depth 14'
Dining Room:
184 sq/ft width 15' x depth 12' 4"
Family Room:
389 sq/ft width 20' 6" x depth 19'
Game Room:
556 sq/ft width 24' x depth 23' 2"
Garage:
748 sq/ft width 22' x depth 34'
Kitchen:
232 sq/ft width 15' 4" x depth 15' 2"
Master Suite:
345 sq/ft width 15' x depth 23'
Media Room:
196 sq/ft width 14' x depth 14'
Porch - Front:
105 sq/ft width 21' x depth 5'
Porch - Rear:
283 sq/ft width 25' x depth 11' 4"
What's Included In This Plan Set
- FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
- FRONT RENDERING: 1/4" Scale
- FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.
- ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
- ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
- STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
Plan Set
$1200.00
$1230.00
$1330.00
$1330.00
$2260.00
$1030.00
Foundation
$0.00
$0.00
$0.00
Additional Options
$200.00
$50.00
$100.00
$39.00
$200.00
$75.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
