PLAN 23-832

Home > Style > Colonial

Key Specs

4177
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This colonial design floor plan is 4177 sq ft and has 4 bedrooms and 4.5 bathrooms.

Floor Plans

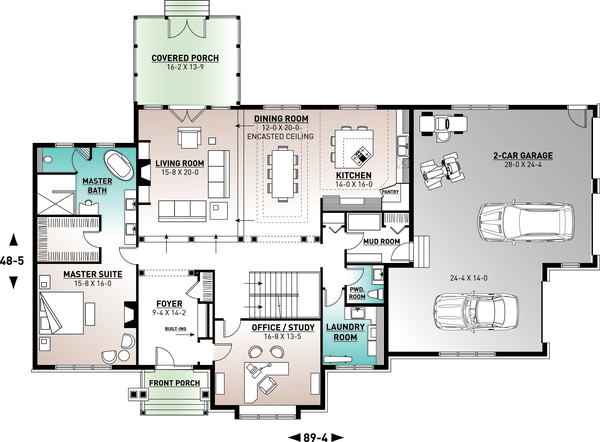

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

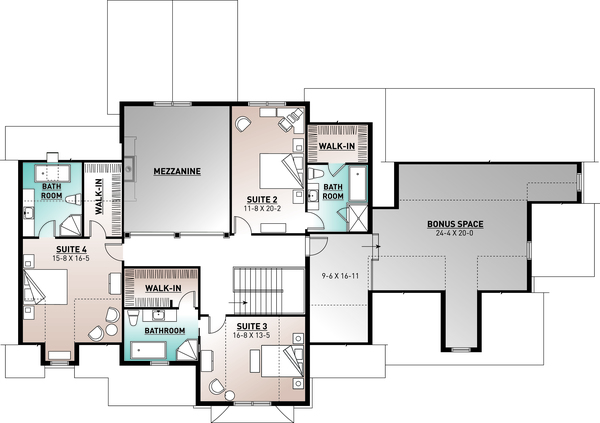

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 62' 5"

Height : 38' 10"

Width : 89' 4"

Area

Bonus: 779 sq/ft height 11'

First Floor: 2483 sq/ft height 11'

Garage: 1119 sq/ft height 11'

Second Floor: 1694 sq/ft height 11'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 11'

Upper Ceiling Ft : 9'

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Stone

Framing : Wood - 2x6

Bedroom Features

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Loft

Master Sitting Area

Play Flex Room

Storage Area

Unfinished Future Space

Garage Features

Oversized Garage

Side Entry Garage

Outdoor Spaces

Balcony

Covered Rear Porch

Rooms

Bathroom 4:

99 sq/ft width 9' 4" x depth 10' 8"

Bedroom 4 Closet:

58 sq/ft width 9' 8" x depth 6'

Coat Closet:

8 sq/ft width 4' x depth 2'

Dining Room:

252 sq/ft width 12' x depth 21'

Family Room:

313 sq/ft width 15' 8" x depth 20'

Foyer:

130 sq/ft width 9' 4" x depth 14'

Guest Suite 4:

235 sq/ft width 11' 8" x depth 20' 2"

Half Bathroom:

34 sq/ft width 5' 10" x depth 6'

Hall Closet:

9 sq/ft width 2' x depth 4' 8"

Home Office:

223 sq/ft width 16' 8" x depth 13' 5"

Kitchen:

224 sq/ft width 14' x depth 16'

Master Bathroom:

167 sq/ft width 15' 8" x depth 10' 8"

Master Bedroom:

250 sq/ft width 15' 8" x depth 16'

Master Closet:

69 sq/ft width 9' 10" x depth 7' 1"

Pantry:

18 sq/ft width 4' 3" x depth 4' 3"

Porch - Front:

54 sq/ft width 12' 8" x depth 4' 4"

Storage:

7 sq/ft width 3' 6" x depth 2'

Utility Room:

84 sq/ft width 9' 2" x depth 9' 3"

What's Included In This Plan Set

See a sample plan set

*Important* This designer may need 5-7 business days to update the plan content when an order is placed. Please call to confirm your order details.

This plan set typically contains:
Exterior Elevations (front, rear, left & right sides) typically include:

Floor and ceiling heights
Dimensions of standard windows
Dimensions of roof overhangs
Location of all needed flashings (mention of “typical” in most cases)
Height and location of foundation indicated in dashed lines
Type of finishing and textures (we write siding, horizontal or vertical but not the company)
Dimension and height of chimney (dimensions yes but the height is determined by the local building code)

Foundation plans typically include:

All exterior and interior dimensions
Thickness of foundation walls (if variable)
All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location. (The load application is not present. Same for the beam, we mention they are but not the size because this can be changed as per manufacturer)
Location of stairwell
Location and sizes of windows
Location and dimensions of footings (where applicable and required)

Floor plan(s) typically include:

All interior and exterior dimensions (included but not as a schedule)
Location and sizes of doors and windows
Indication of the structure above (second floor or roof)
Indication of details that are available on other pages

Roof plans typically include:

Location of all the different trusses needed
The general overcharge of the roof compared to the floor footprint underneath

Building cross-section(s) and truss details typically include:

All the different floor and ceiling heights
Dimensions and design of trusses
Dimensions and details of overhand
Roof pitch on all truss sections

Construction details typically include:

Roof sections
Sections of concrete wall with wood connection
Section of walls with particulars called out
Section of concrete porch and connection with wood frame
Foundation particulars in the garage entrance
Components of certain types of walls (ex: between garage and living quarters)

Typical wall sections typically include;

All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
Note: This plan does not include HVAC, electrical and plumbing.
