Full Specs & Features
Depth : 85' 4"
Height : 36'
Width : 86'
Bonus: 320 sq/ft

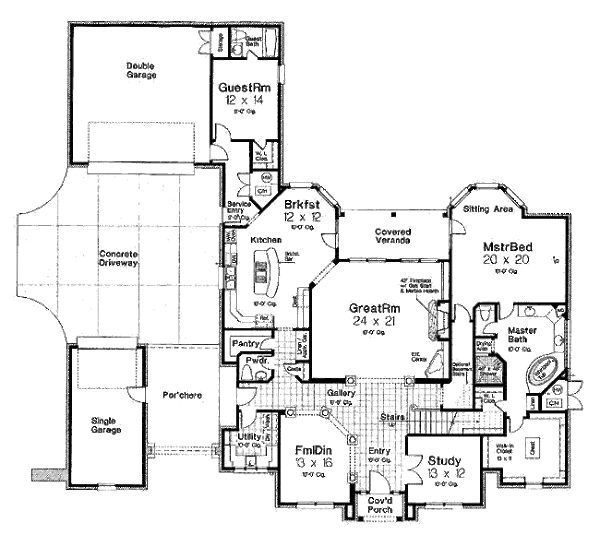

First Floor: 3142 sq/ft height 10'

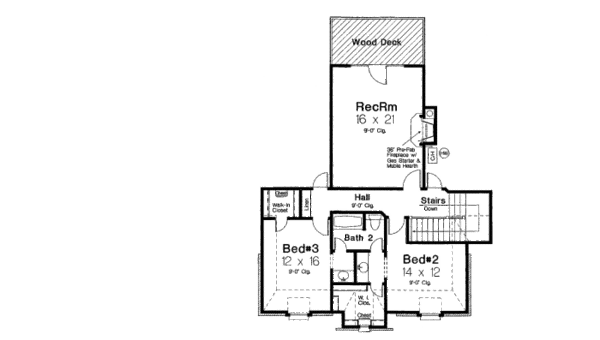

Second Floor: 1040 sq/ft
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 16:12
Exterior Wall Framing
Exterior Wall Finish : Stone/Stucco
Framing : 2"x4"
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Master Sitting Area
Friend S Entry
Suited For View Lot
Jack & Jill Bath
30 sq/ft width 6' x depth 5'
108 sq/ft width 9' x depth 12'
168 sq/ft width 14' x depth 12'
192 sq/ft width 12' x depth 16'
168 sq/ft width 12' x depth 14'
144 sq/ft width 12' x depth 12'
208 sq/ft width 13' x depth 16'
336 sq/ft width 16' x depth 21'
504 sq/ft width 24' x depth 21'
208 sq/ft width 16' x depth 13'
400 sq/ft width 20' x depth 20'
143 sq/ft width 13' x depth 11'
25 sq/ft width 5' x depth 5'
156 sq/ft width 13' x depth 12'
What's Included In This Plan Set
- Cover Sheet: Showing architectural rendering of residence
- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.
- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
