PLAN 23-2015

Key Specs

4200
sq ft

4
Beds

3.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Floor Plans

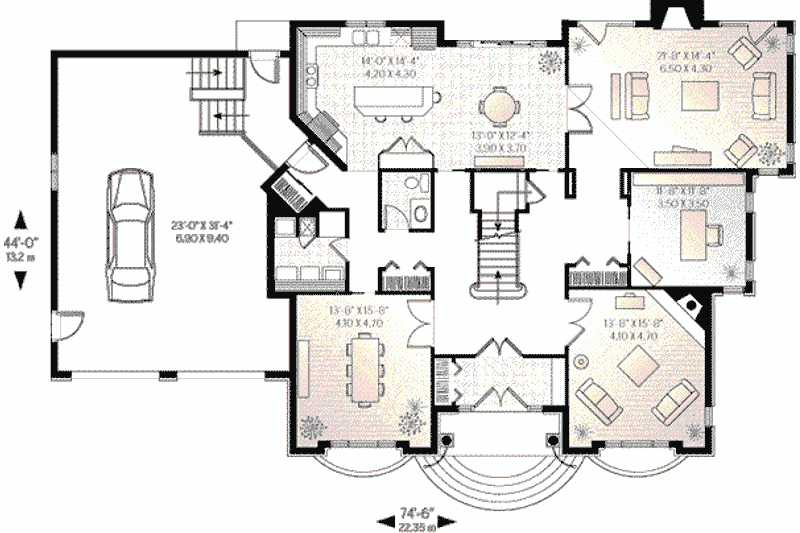

Floor Plan - Main Floor Plan

Reverse

European Floor Plan - Main Floor Plan Plan #23-2015

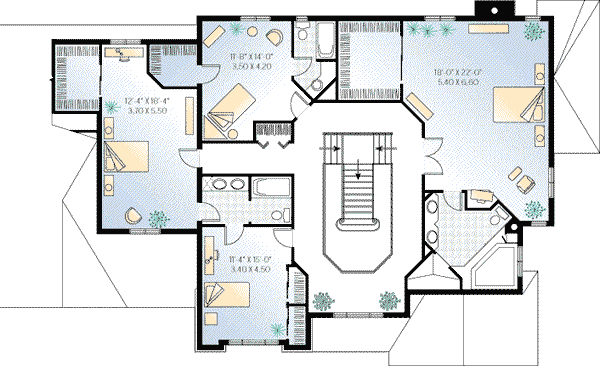

Floor Plan - Upper Floor Plan

Reverse

European Floor Plan - Upper Floor Plan Plan #23-2015

Full Specs & Features

Dimension

Depth : 46'
Height : 33'
Width : 74' 6"

Area

Basement Living: 1988 sq/ft
First Floor: 2207 sq/ft
Garage: 764 sq/ft
Second Floor: 1993 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 6:12
Roof Framing : Truss
Secondary Pitch : 10:12

Exterior Wall Framing

Exterior Wall Finish : Stone
Framing : 2"x6"

Bedroom Features

Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Loft
Storage Area

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Balcony
Covered Front Porch

Jack & Jill Bath

Rooms

3rd BR Closet:

20 sq/ft width 2' x depth 10'

Basement Foundation:

2229 sq/ft width 50' 8" x depth 44'

Bathroom 2:

71 sq/ft width 11' 8" x depth 6' 2"

Bathroom 3:

53 sq/ft width 5' 4" x depth 10'

Bedroom 2:

226 sq/ft width 12' 4" x depth 18' 4"

Bedroom 2 Closet:

46 sq/ft width 5' 4" x depth 8' 8"

Bedroom 3:

168 sq/ft width 11' 4" x depth 14' 10"

Bedroom 3 Closet:

46 sq/ft width 5' 4" x depth 8' 8"

Bedroom 4:

153 sq/ft width 11' 8" x depth 13' 2"

Bedroom 4 Closet:

31 sq/ft width 6' x depth 5' 4"

Breakfast Room:

160 sq/ft width 12' 8" x depth 12' 8"

Dining Room:

209 sq/ft width 13' 6" x depth 15' 6"

Foyer:

24 sq/ft width 5' x depth 4' 10"

Game Room:

134 sq/ft width 11' 6" x depth 11' 8"

Garage:

689 sq/ft width 22' x depth 31' 4"

Gathering Room:

310 sq/ft width 21' 8" x depth 14' 4"

Hall:

71 sq/ft width 13' x depth 5' 6"

Hall Closet:

10 sq/ft width 2' x depth 5'

Kitchen:

200 sq/ft width 14' 4" x depth 14'

Living Room:

216 sq/ft width 13' 10" x depth 15' 8"

Master Bathroom:

125 sq/ft width 12' 2" x depth 10' 4"

Master Bedroom:

396 sq/ft width 18' x depth 22'

Porch - Front:

48 sq/ft width 4' x depth 12'

Porch - Rear:

288 sq/ft width 36' x depth 8'

Powder Room:

25 sq/ft width 4' 8" x depth 5' 6"

Study:

134 sq/ft width 11' 6" x depth 11' 8"

Walk-In Closet:

80 sq/ft width 7' 10" x depth 10' 4"

Wash Room:

52 sq/ft width 7' x depth 7' 6"

What's Included In This Plan Set

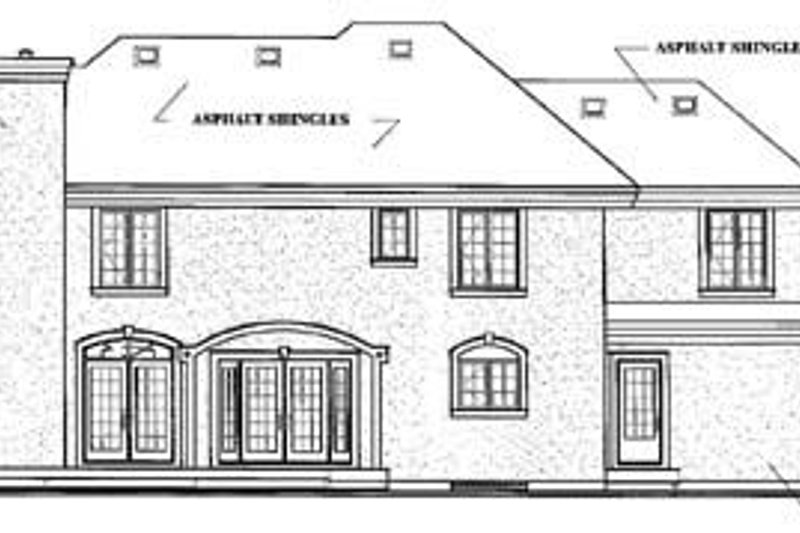

See a sample plan set Exterior Elevations (front, rear, left & right sides) typically include:

Floor and ceiling heights
Dimensions of standard windows
Dimensions of roof overhangs
Location of all needed flashings
Height and location of foundation indicated in dashed lines
Type of finishing and textures
Dimension and height of chimney

Foundation plans typically include:

All exterior and interior dimensions
Thickness of foundation walls (if variable)
All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location
Location of stairwell
Location and sizes of windows
Location and dimensions of footings (where applicable and required)

Floor plan(s) typically include:

All interior and exterior dimensions
Location and sizes of doors and windows
Types of interior doors that correspond to a schedule
Indication of the structure above (second floor or roof)
Location of columns, beams and floor joists, including dimensions
Indication of details that are available on other pages

Roof plans typically include:

Location of all the different trusses needed
The general overcharge of the roof compared to the floor footprint underneath
Location of ridges and valleys

Building cross-section(s) and truss details typically include:

All the different floor and ceiling heights
Dimensions and design of trusses
Dimensions and details of overhand
Roof pitch on all truss sections

Construction details typically include:

Roof sections
Sections of concrete wall with wood connection
Section of walls with particulars called out
Section of concrete porch and connection with wood frame
Foundation particulars in the garage entrance
Components of certain types of walls (ex: between garage and living quarters)

Typical wall sections typically include;

All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
Note: This plan does not include an electrical layout.
