Full Specs & Features
Depth : 52' 2"
Height : 33'
Width : 118' 1"
First Floor: 3120 sq/ft
Second Floor: 1083 sq/ft
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Formal Dining Room
Formal Living Room / Parlor
Walk In Closet
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Covered Front Porch
Covered Rear Porch
Wrap Around Porch
164 sq/ft width 13' 4" x depth 12' 4"
173 sq/ft width 13' 4" x depth 13'
179 sq/ft width 13' 4" x depth 13' 6"
145 sq/ft width 11' 8" x depth 12' 6"
209 sq/ft width 15' 6" x depth 13' 6"

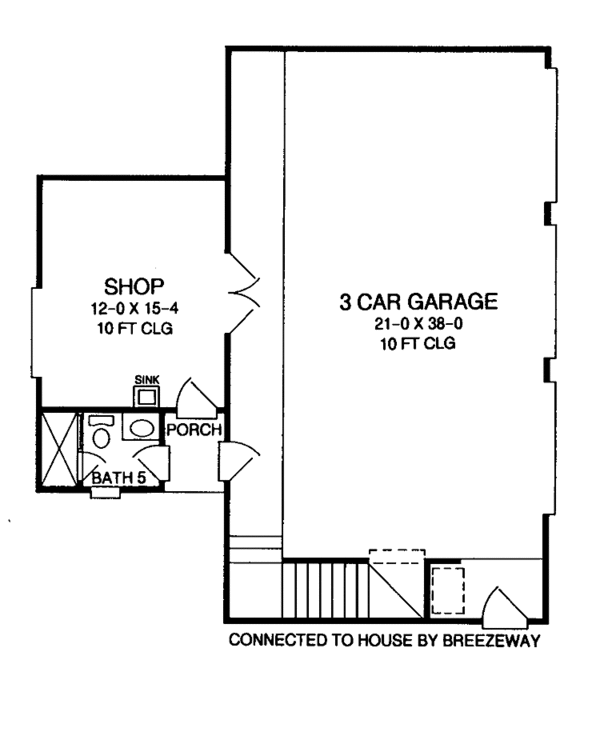

798 sq/ft width 21' x depth 38'
363 sq/ft width 22' x depth 16' 6"
298 sq/ft width 21' 4" x depth 14'
306 sq/ft width 17' x depth 18'
86 sq/ft width 11' 6" x depth 7' 6"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

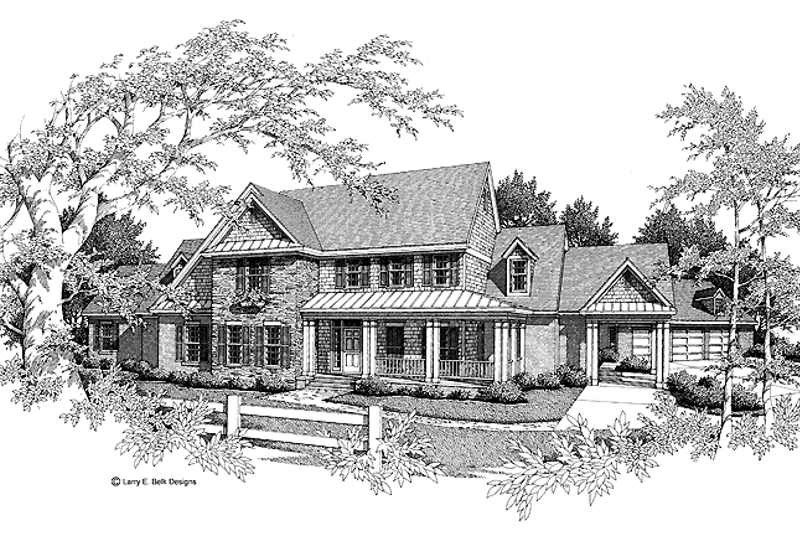

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

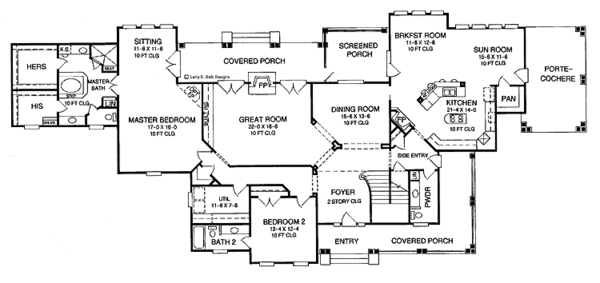

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
