PLAN 17-3358
Key Specs
4212
sq ft
8
Beds
8
Baths
2
Floors
0
Garages
Cost to Build Reports Only $9.99 for a Limited Time! Use Code CTB2021
This report will provide you cost estimates based on location and building materials.
Phone: 1-888-447-1946
See our Terms & Conditions and Privacy Policy.
PLAN 17-3358
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description
An attractive exterior featuring large windows and eye-catching stone makes this fourplex a standout. Each two-story unit offers open living space downstairs, with a snack bar and eat-in kitchen opening to the rear patio. A full bath down here and another upstairs with two vanities serve two bedrooms, each of which boasts a walk-in closet.
Full Specs & Features
Height : 29'
Width : 71' 8"

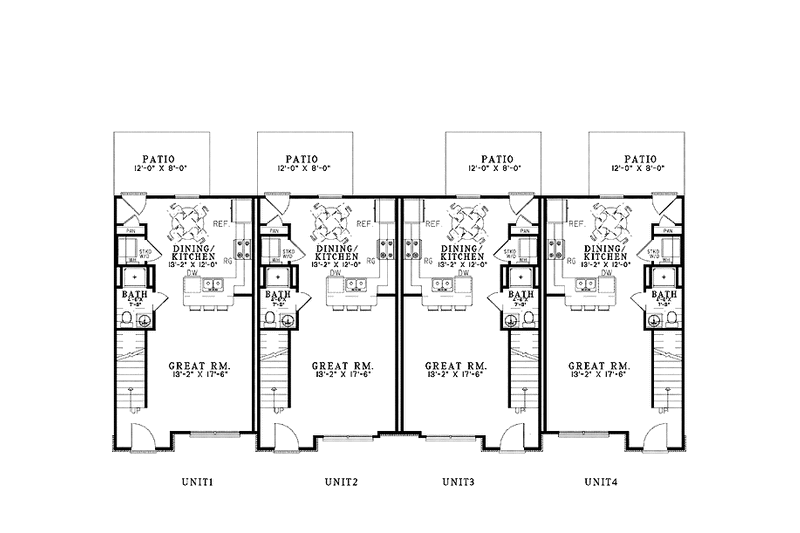

First Floor: 548 sq/ft height 9'
First Floor: 548 sq/ft height 9'
First Floor: 548 sq/ft height 9'

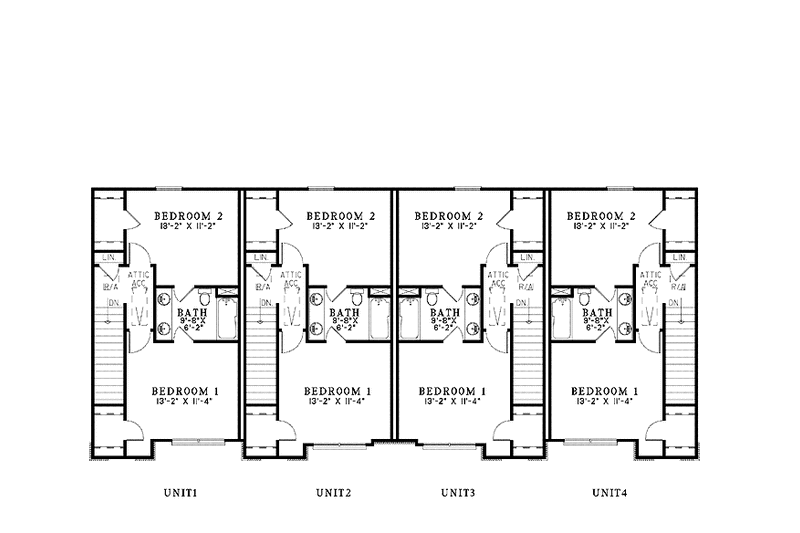

Second Floor: 505 sq/ft height 8'
Second Floor: 505 sq/ft height 8'
Second Floor: 505 sq/ft height 8'
Second Floor: 505 sq/ft height 8'
Framing : Wood - 2x4
Bathroom 1:
34 sq/ft width 4' 6" x depth 7' 8"
Bathroom 1:
34 sq/ft width 4' 6" x depth 7' 8"
Bathroom 1:
34 sq/ft width 4' 6" x depth 7' 8"
Bathroom 1:
34 sq/ft width 4' 6" x depth 7' 8"
Bathroom 2:
59 sq/ft width 9' 8" x depth 6' 2"
Bathroom 2:
59 sq/ft width 9' 8" x depth 6' 2"
Bathroom 2:
59 sq/ft width 9' 8" x depth 6' 2"
Bathroom 2:
59 sq/ft width 9' 8" x depth 6' 2"
Bedroom 1:
149 sq/ft width 13' 2" x depth 11' 4"
Bedroom 1:
149 sq/ft width 13' 2" x depth 11' 4"
Bedroom 1:
149 sq/ft width 13' 2" x depth 11' 4"
Bedroom 1:
149 sq/ft width 13' 2" x depth 11' 4"
Bedroom 2:
147 sq/ft width 13' 2" x depth 11' 2"
Bedroom 2:
147 sq/ft width 13' 2" x depth 11' 2"
Bedroom 2:
147 sq/ft width 13' 2" x depth 11' 2"
Bedroom 2:
147 sq/ft width 13' 2" x depth 11' 2"
Great Room:
230 sq/ft width 13' 2" x depth 17' 6"
Great Room:
230 sq/ft width 13' 2" x depth 17' 6"
Great Room:
230 sq/ft width 13' 2" x depth 17' 6"
Great Room:
230 sq/ft width 13' 2" x depth 17' 6"
Kitchen:
158 sq/ft width 13' 2" x depth 12'
Kitchen:
158 sq/ft width 13' 2" x depth 12'
Kitchen:
158 sq/ft width 13' 2" x depth 12'
Kitchen:
158 sq/ft width 13' 2" x depth 12'
Patio:
96 sq/ft width 12' x depth 8'
Patio:
96 sq/ft width 12' x depth 8'
Patio:
96 sq/ft width 12' x depth 8'
Patio:
96 sq/ft width 12' x depth 8'
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
- Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
| PDF Set
: $2250.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 5 Copy Set
: $2350.00 |
5 printed plan sets mailed to you. |
| 5 Copy and PDF Set
: $2600.00 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Slab: $0.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
| Wood 2x6: $299.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse
: $199.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets
: $75.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
