PLAN 120-212
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Modify This Plan
Floor Plans

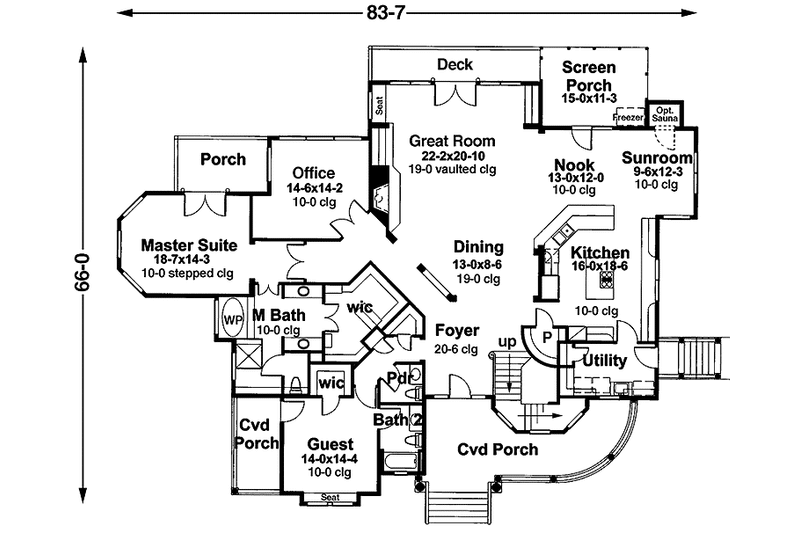

Floor Plan - Main Floor

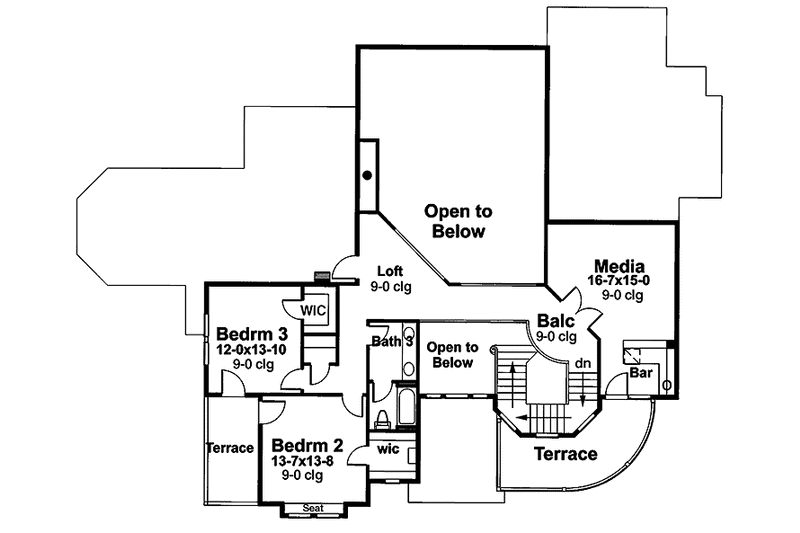

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 66'
Height : 29'
Width : 84'
Area
Basement Unfinished: 3184 sq/ft
First Floor: 3184 sq/ft
Second Floor: 1161 sq/ft
Roof
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Guest Suite
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Loft
Main Floor Laundry
Media Room
Sunroom
Outdoor Spaces
Balcony
Screened Porch
Rooms
Bedroom 2:
185 sq/ft width 13' 7" x depth 13' 8"
Bedroom 3:
165 sq/ft width 12' x depth 13' 10"
Breakfast Nook:
156 sq/ft width 13' x depth 12'
Dining Room:
110 sq/ft width 13' x depth 8' 6"
Entry:
104 sq/ft width 9' 2" x depth 11' 5"
Great Room:
461 sq/ft width 22' 2" x depth 20' 10"
Guest Bedroom:
200 sq/ft width 14' x depth 14' 4"
Kitchen:
296 sq/ft width 16' x depth 18' 6"
Loft:
100 sq/ft width 10' x depth 10'
Master Bathroom:
120 sq/ft width 15' x depth 8'
Master Bedroom:
266 sq/ft width 18' 7" x depth 14' 4"
Media Room:
248 sq/ft width 16' 7" x depth 15'
Porch - Screened:
167 sq/ft width 15' x depth 11' 2"
Study:
205 sq/ft width 14' 6" x depth 14' 2"
Sun Room:
117 sq/ft width 9' 6" x depth 12' 4"
Utility Room:
113 sq/ft width 13' 6" x depth 8' 5"
What's Included In This Plan Set
- Designer offers a 2nd Build License for $395 with a PDF purchase as well as an Unlimited License for $395 with the purchase of a CAD.
- Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
- Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
- Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
- Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances.
- Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
- Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
- Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.
Plan Set
$1355.75
$1355.75
$1483.25
$1568.25
$2035.75
Foundation
$0.00
$0.00
$335.75
$335.75
Framing
$0.00
$208.25
Additional Options
$165.75
$42.50
$335.75
$85.00
$382.50
$33.15
$335.75
$165.75
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
