PLAN 1060-23

Photographs may show modified designs.

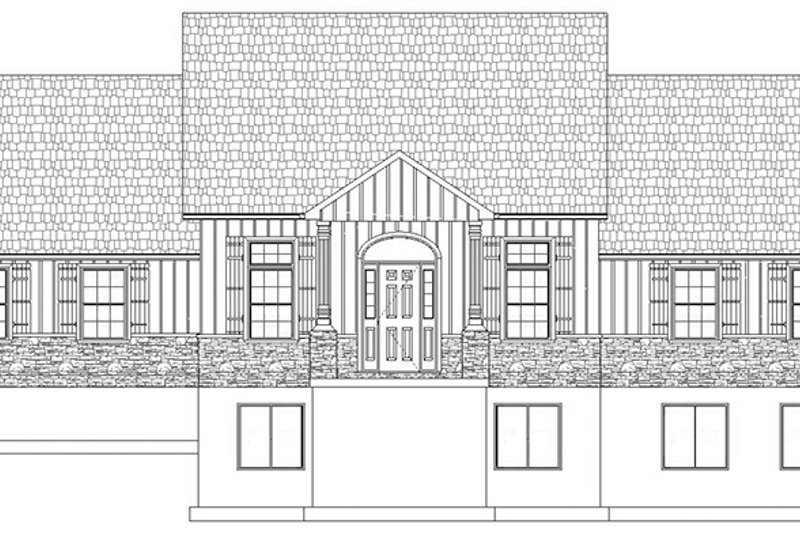

Home Plan - Ranch Exterior - Front Elevation Plan #1060-23

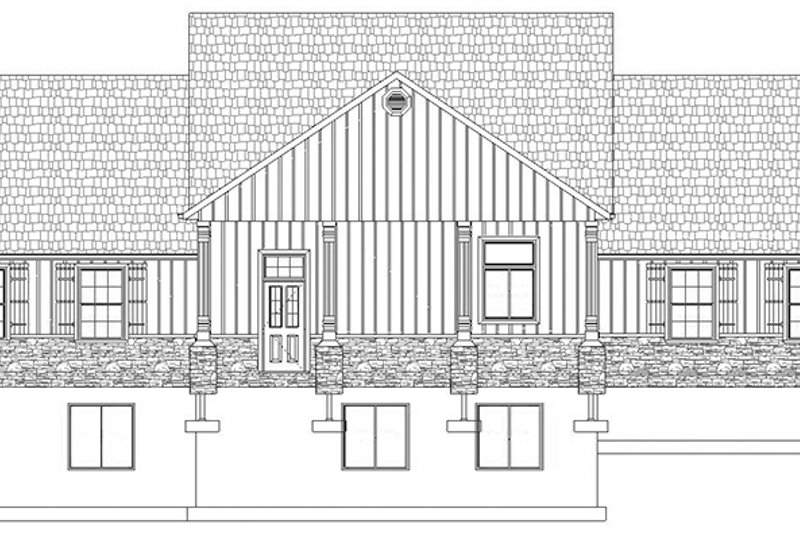

Home Plan - Ranch Exterior - Rear Elevation Plan #1060-23

Home Plan - Ranch Interior - Other Plan #1060-23

Home Plan - Ranch Interior - Dining Room Plan #1060-23

Home Plan - Ranch Interior - Kitchen Plan #1060-23

Home Plan - Ranch Interior - Master Bedroom Plan #1060-23

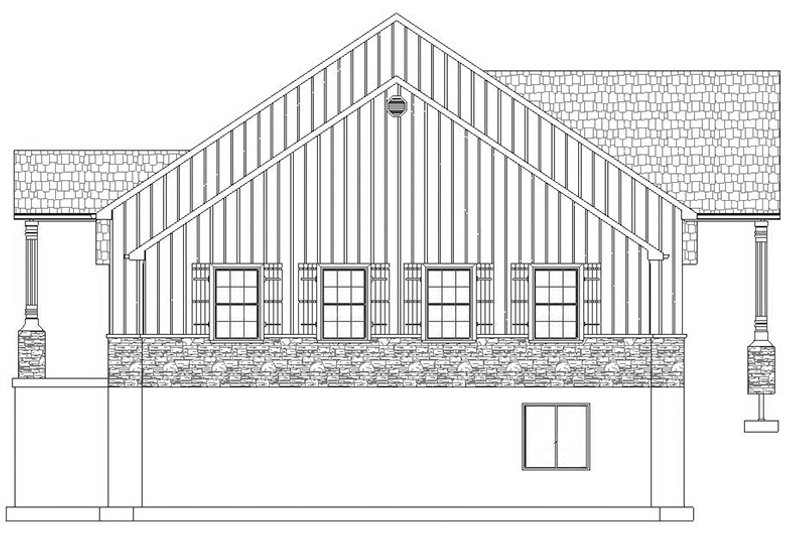

Home Plan - Ranch Exterior - Other Elevation Plan #1060-23

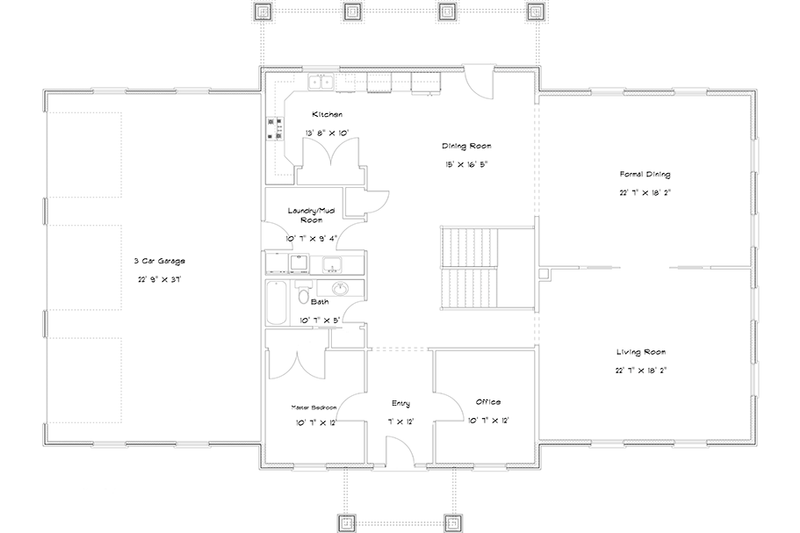

Home Plan - Ranch Floor Plan - Main Floor Plan #1060-23

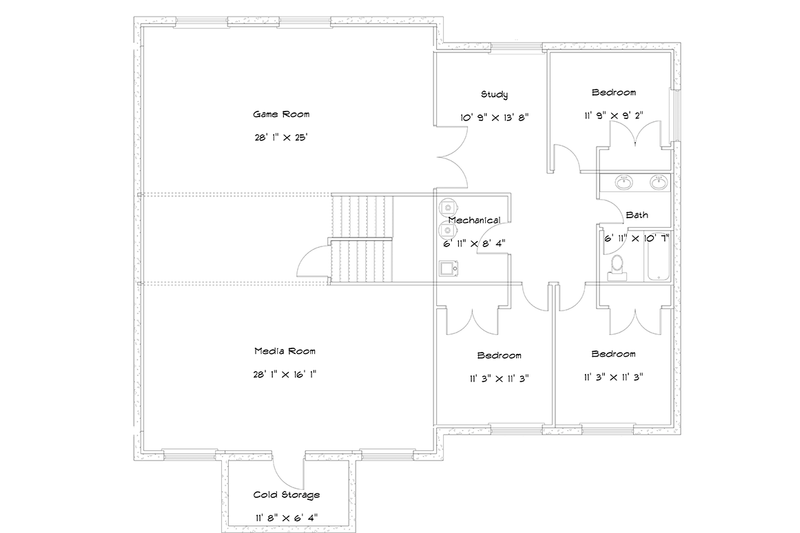

Home Plan - Ranch Floor Plan - Lower Floor Plan #1060-23

Jump to:
All (13)
Exterior (7)
Interior (4)
Floor plans (2)

Get Personalized Help

Home > Style > Ranch

Key Specs

4410
sq ft

4
Beds

2
Baths

1
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$195.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$395.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$1250.00

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 1060-23

Home > Style > Ranch

Key Specs

4410
sq ft

4
Beds

2
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

An exterior of siding and stone creates a facade that matches the country elegance of this plan. Perfect for hosting large gatherings, there is both a formal living room and a formal dining room. There is a chef style country kitchen, four bedrooms and a study for privacy. The lower level also has a media room and game room for family entertainment.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Lower Floor

Reverse

Full Specs & Features

Dimension

Depth : 50'

Height : 27' 11"

Width : 76'

Area

Basement Living: 2255 sq/ft height 9'

First Floor: 2155 sq/ft height 12'

Garage: 882 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Siding/Stucco

Framing : Wood - 2x6

Bedroom Features

Formal Dining Room

Formal Living Room / Parlor

Main Floor Master Bedroom

Split Bedrooms

Additional Room Features

Den Office Study Computer

Hobby Rec Room Game Room

Main Floor Laundry

Media Room

Mud Room

Vaulted / Cathedral Ceilings

Garage Features

Side Entry Garage

Outdoor Spaces

Covered Front Porch

Rooms

Bath 1:

53 sq/ft width 10' 7" x depth 5'

Bath 2:

73 sq/ft width 6' 11" x depth 10' 7"

Bedroom 2:

108 sq/ft width 11' 9" x depth 9' 2"

Bedroom 3:

127 sq/ft width 11' 3" x depth 11' 3"

Bedroom 4:

127 sq/ft width 11' 3" x depth 11' 3"

Cold Storage:

74 sq/ft width 11' 8" x depth 6' 4"

Covered Front Porch:

70 sq/ft

Covered Front Porch:

70 sq/ft

Covered Rear Porch:

178 sq/ft

Covered Rear Porch:

178 sq/ft

Dining Area:

246 sq/ft width 15' x depth 16' 5"

Entry:

84 sq/ft width 7' x depth 12'

Formal Dining Room:

410 sq/ft width 22' 7" x depth 18' 2"

Game Room:

702 sq/ft width 28' 1" x depth 25'

Garage:

882 sq/ft width 22' 9" x depth 37'

Kitchen:

137 sq/ft width 13' 8" x depth 10'

Laundry Room/ Mud Room:

99 sq/ft width 10' 7" x depth 9' 4"

Living Room:

410 sq/ft width 22' 7" x depth 18' 2"

Master Bedroom:

127 sq/ft width 10' 7" x depth 12'

Mechanical:

58 sq/ft width 6' 11" x depth 8' 4"

Media Room:

452 sq/ft width 28' 1" x depth 16' 1"

Office:

127 sq/ft width 10' 7" x depth 12'

Study:

147 sq/ft width 10' 9" x depth 13' 8"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$1250.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$1395.00

5 printed plan sets mailed to you.

5 Copy and PDF Set:
$1550.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

PDF Unlimited Build:
$1795.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD and PDF Set:
$1950.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Daylight Basement:
$0.00

Ideal for sloping lot, lower level of home partially underground.

Crawlspace:
$350.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$350.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Wood 2x4:
$250.00

Wood 2x4 Exterior Walls

Additional Options

Right-Reading Reverse:
$195.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$50.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$395.00

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
