PLAN 132-498
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Full Specs & Features
Dimension
Depth : 91'
Height : 30'
Width : 56'
Height : 30'
Width : 56'
Area

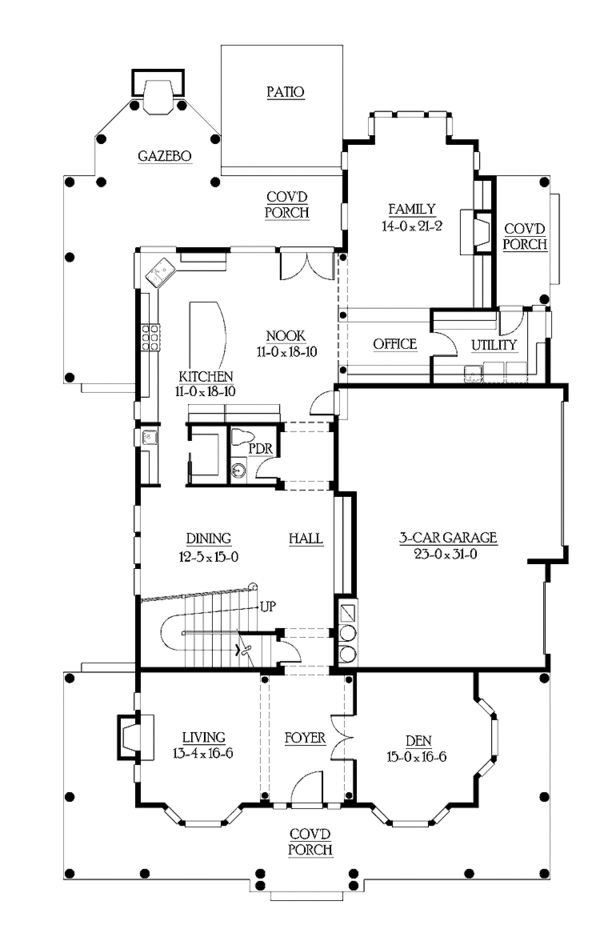

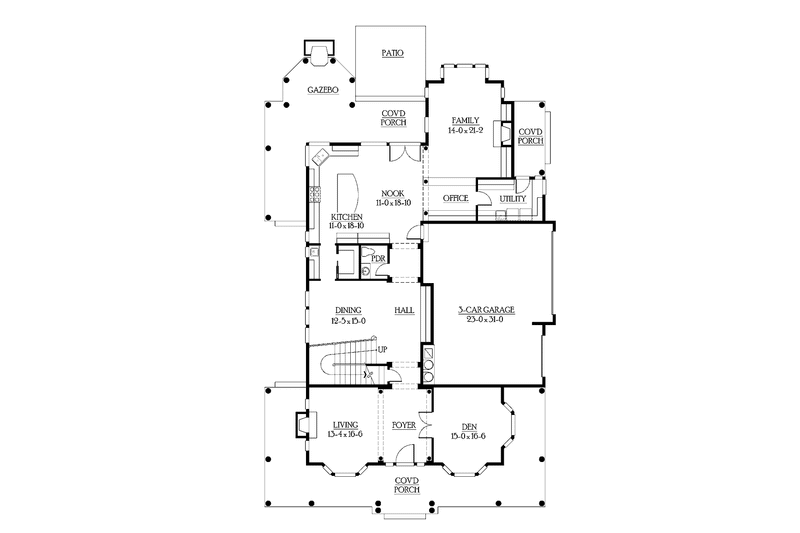

First Floor: 2250 sq/ft
Garage: 749 sq/ft
Porch: 1207 sq/ft

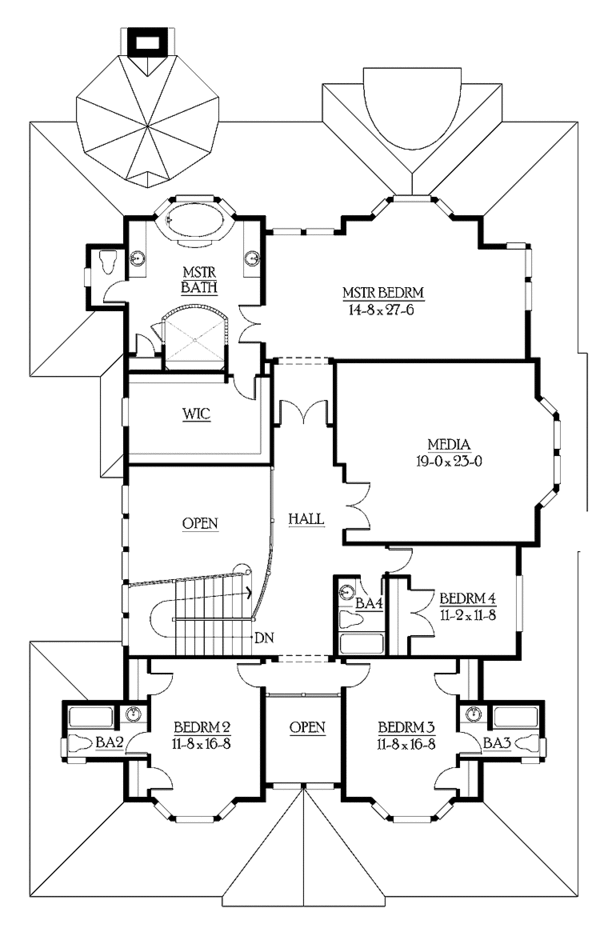

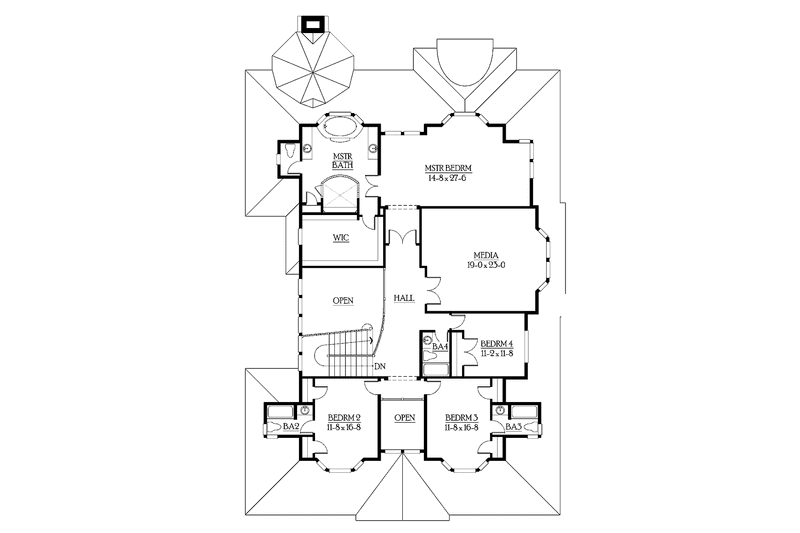

Second Floor: 2316 sq/ft
Garage: 749 sq/ft
Porch: 1207 sq/ft
Second Floor: 2316 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Shingle
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle
Framing : Wood - 2x6
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Split Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Formal Dining Room
Formal Living Room / Parlor
Split Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Master Sitting Area
Media Room
Storage Area
Unfinished Future Space
Vaulted / Cathedral Ceilings
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Master Sitting Area
Media Room
Storage Area
Unfinished Future Space
Vaulted / Cathedral Ceilings
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
Courtyard
Covered Front Porch
Covered Rear Porch
Outdoor Fireplace
Courtyard
Covered Front Porch
Covered Rear Porch
Outdoor Fireplace
Rooms
Bedroom 2:
194 sq/ft width 11' 8" x depth 16' 8"
Bedroom 3:
194 sq/ft width 11' 8" x depth 16' 8"
Bedroom 4:
130 sq/ft width 11' 2" x depth 11' 8"
Den:
247 sq/ft width 15' x depth 16' 6"
Dining Room:
186 sq/ft width 12' 5" x depth 15'
Family Room:
296 sq/ft width 14' x depth 21' 2"
Garage:
713 sq/ft width 23' x depth 31'
Kitchen:
207 sq/ft width 11' x depth 18' 10"
Living Room:
219 sq/ft width 13' 4" x depth 16' 6"
Master Bedroom:
403 sq/ft width 14' 8" x depth 27' 6"
Media Room:
437 sq/ft width 19' x depth 23'
Nook:
207 sq/ft width 11' x depth 18' 10"
What's Included In This Plan Set
Purchasing a CAD set gives you a multi-build license. The 5 copy set allows you to build the home one time.
If you are building this plan in the state of Washington, please call us before placing your order.
- Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
- Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
- Detail Sheet: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
- Foundation Plan Sheet: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
- Floor Plan Sheet: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
- Roof Framing Plan Sheet: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
- Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
- Building Section Sheet: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Questions? Call 1-888-447-1946
Plan Set
| PDF Set : $2160.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Unlimited Build : $3600.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
Framing
| Wood 2x6: $0.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse : $225.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $45.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design : $90.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $35.10 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $180.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
