PLAN 47-1017

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

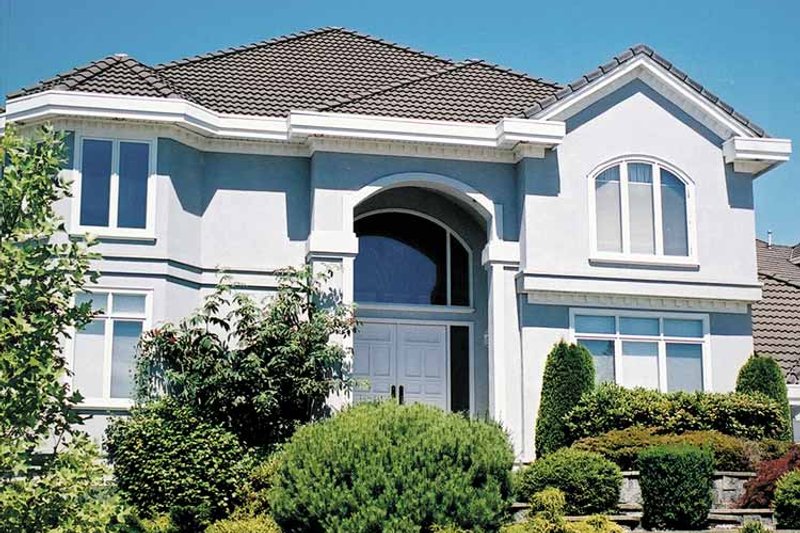

A vaulted, recessed portico creates a strong first impression of contemporary classicism that echoes throughout the home. The foyer is traditionally flanked by a formal dining room and living room, yet the plan is far from stuffy symmetry. The living room is slightly sunken and features a polygonal nook. This shape is repeated in the study and in the master bedroom upstairs. At the rear of the lower level lies the kitchen, where a gentle curving wall and island countertop lend a contemporary air. At one end of the kitchen, a butler's pantry leads to the dining room, and a short corridor gives access to the laundry room and three-car garage. At the other end of the kitchen, a breakfast nook and hearth-warmed family room enfold an outdoor patio. The grand staircase leads to three private bedroom suites plus the master suite, whose luxury bath promises the ultimate in indulgence.

Floor Plans

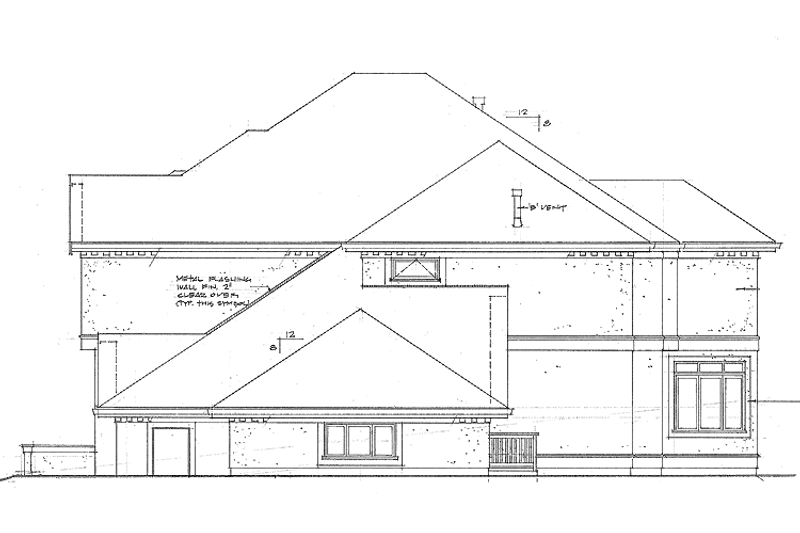

Floor Plan - Other Floor


BUILDER Advantage Program


Join the club and save 5% on your first order plus exclusive discounts and more.


Click to Get Your Trend Report

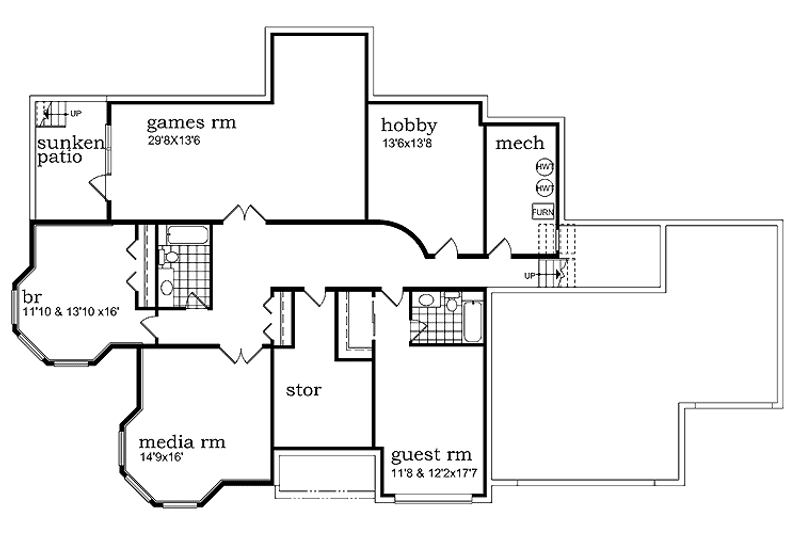

Floor Plan - Lower Floor

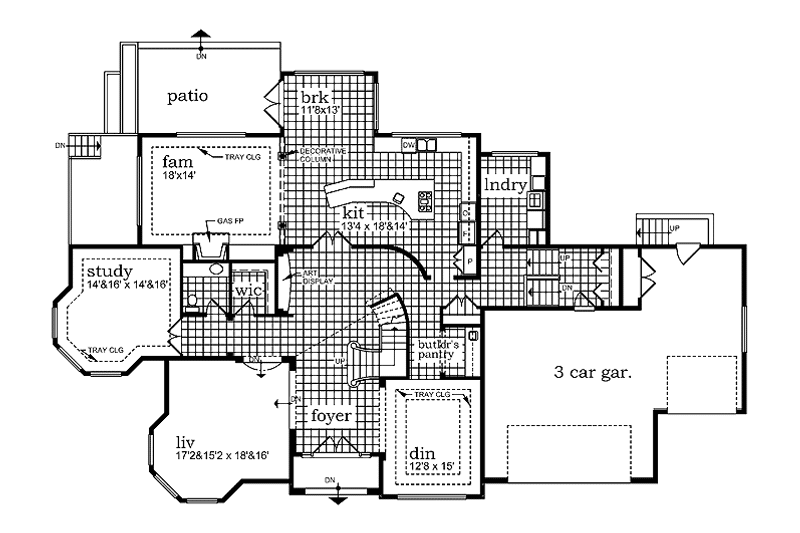

Floor Plan - Main Floor

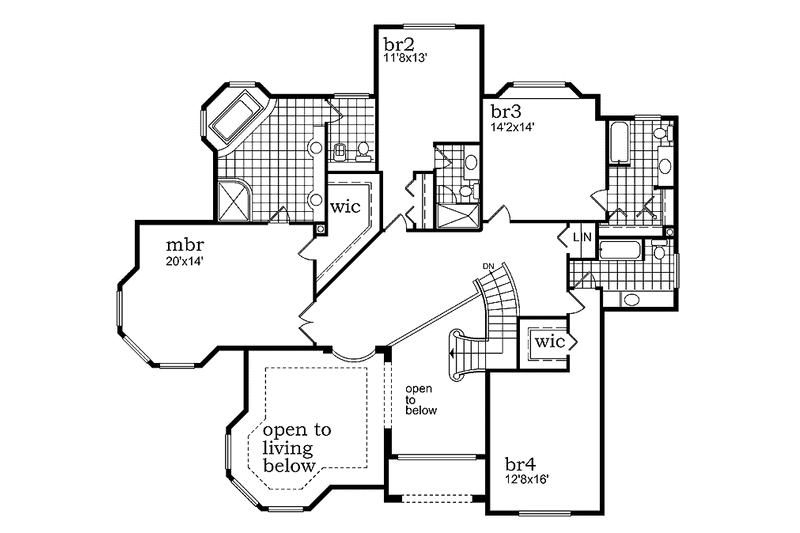

Floor Plan - Upper Floor


Full Specs & Features


Depth : 56'

Height : 33'

Width : 90'


First Floor: 2528 sq/ft

Second Floor: 2045 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Primary Pitch : 8:12

Roof Framing : Truss

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Wood - 2x6

Bedroom Features


Formal Dining Room

Formal Living Room / Parlor

Guest Suite

Upstairs Master Bedrooms

Kitchen Features

Breakfast Nook

Butler's Pantry

Kitchen Island

Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Hobby Rec Room Game Room


Main Floor Laundry

Media Room

Outdoor Spaces



Covered Front Porch


3rd BR Closet:

19 sq/ft width 9' 9" x depth 2'

Basement Foundation:

4172 sq/ft width 74' 6" x depth 56'

Bathroom 2:

54 sq/ft width 5' 8" x depth 9' 8"

Bathroom 3:

82 sq/ft width 7' 6" x depth 11'

Bathroom 4:

67 sq/ft width 8' 8" x depth 7' 10"

Bathroom 5:

58 sq/ft width 6' x depth 9' 8"

Bathroom 6:

49 sq/ft width 8' 4" x depth 6'

Bedroom 2:

151 sq/ft width 11' 8" x depth 13'

Bedroom 2 Closet:

12 sq/ft width 2' x depth 6' 4"

Bedroom 3:

198 sq/ft width 14' 2" x depth 14'

Bedroom 3 Closet:

12 sq/ft width 2' x depth 6' 4"

Bedroom 4:

202 sq/ft width 12' 8" x depth 16'

Bedroom 4 Closet:

31 sq/ft width 5' 4" x depth 6'

Bedroom 5:

189 sq/ft width 11' 10" x depth 16'

Bedroom 5 Closet:

19 sq/ft width 9' 8" x depth 2'

Bedroom 6:

205 sq/ft width 11' 8" x depth 17' 7"

Bedroom 6 Closet:

31 sq/ft width 7' 10" x depth 4'

Breakfast Room:

151 sq/ft width 11' 8" x depth 13'

Butler's Pantry:

32 sq/ft width 7' x depth 4' 7"

Coat Closet:

36 sq/ft width 5' 8" x depth 6' 5"

Covered Porch:

72 sq/ft width 11' 2" x depth 6' 6"

Dining Room:

190 sq/ft width 12' 8" x depth 15'

Family Room:

252 sq/ft width 18' x depth 14'


272 sq/ft width 10' 8" x depth 25' 6"

Game Room:

236 sq/ft width 14' 9" x depth 16'


1037 sq/ft width 34' x depth 30' 6"

Gathering Room:

252 sq/ft width 18' x depth 14'


239 sq/ft width 13' 4" x depth 18'

Laundry Room:

97 sq/ft width 8' 6" x depth 11' 6"

Living Room:

309 sq/ft width 17' 2" x depth 18'

Master Bathroom:

257 sq/ft width 18' 2" x depth 14' 2"

Master Bedroom:

280 sq/ft width 20' x depth 14'

Master Closet:

60 sq/ft width 6' x depth 10'


256 sq/ft width 16' x depth 16'

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

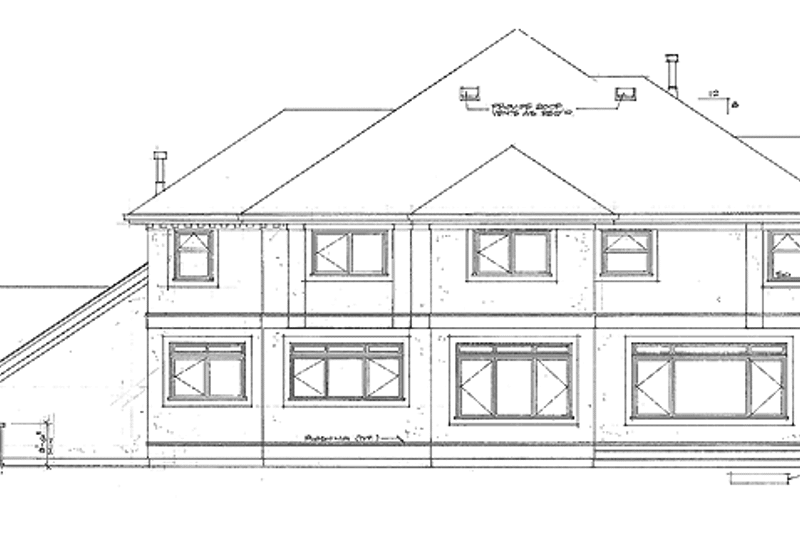

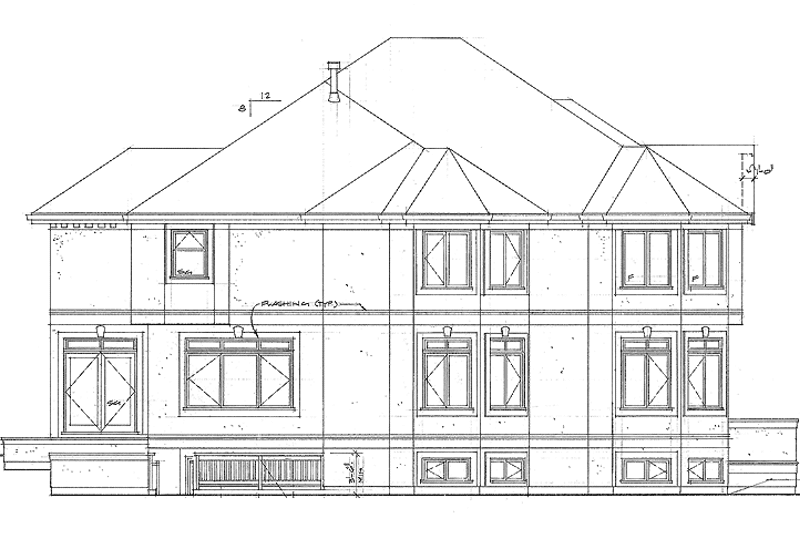

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
