Full Specs & Features
Depth : 93' 4"
Height : 28' 6"
Width : 102' 5"
Garage : 846 sq/ft
Main Floor : 3747 sq/ft
Upper Floor : 858 sq/ft
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Exterior Wall Framing
Framing : 2x4
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

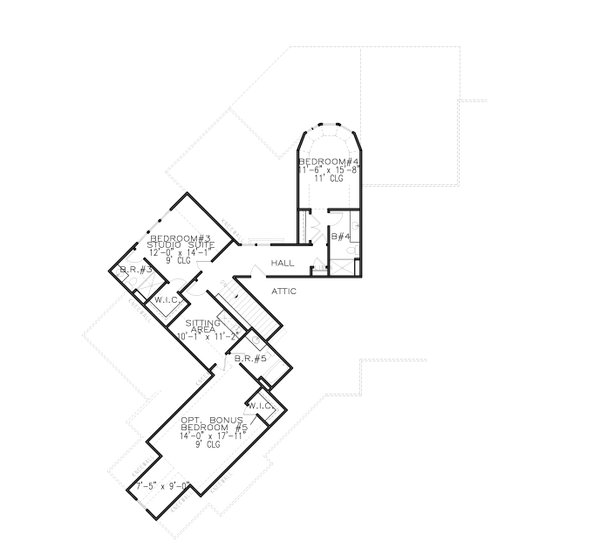

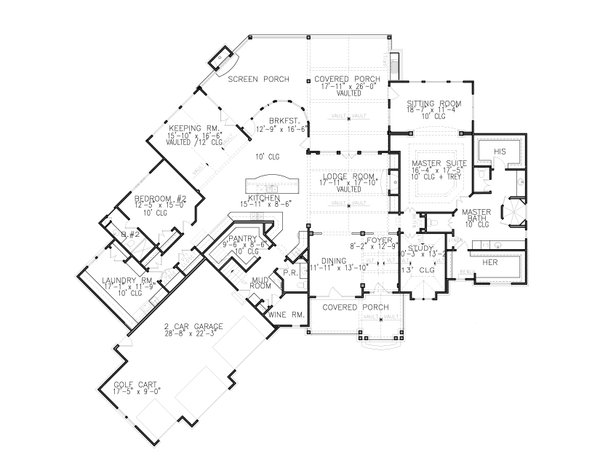

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
