PLAN 132-501

Photographs may show modified designs.

Save
Home  /  Style  /  Craftsman

Key Specs


Plan Sq Ft

4660
sq ft

Plan Bedrooms

5
Beds

Plan Bathrooms

4
Baths

Plan Floors

2
Floors

Plan Garages

3
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Subtotal
$2500.00
Best Price Guaranteed*

Also order by phone: 1-888-447-1946
Cost-to-Build Estimates

Cost to Build Reports Only $4.99 with Code CTBSUMMER (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-888-447-1946
Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 132-501

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

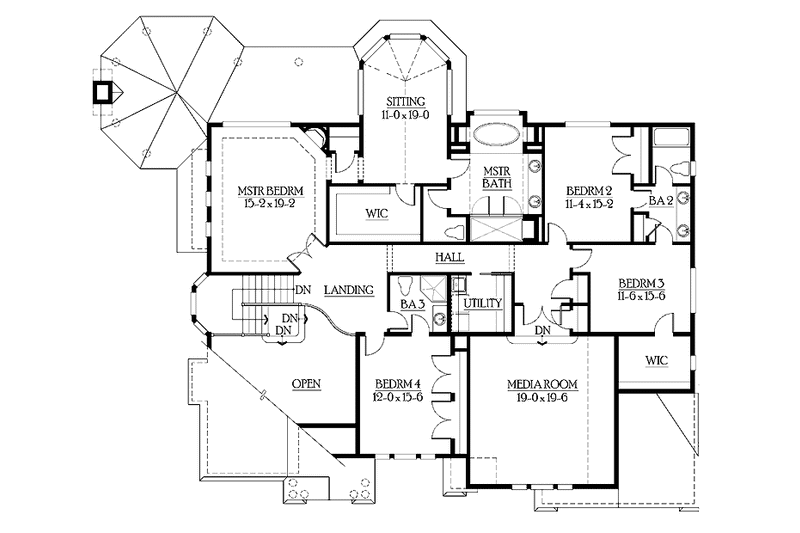

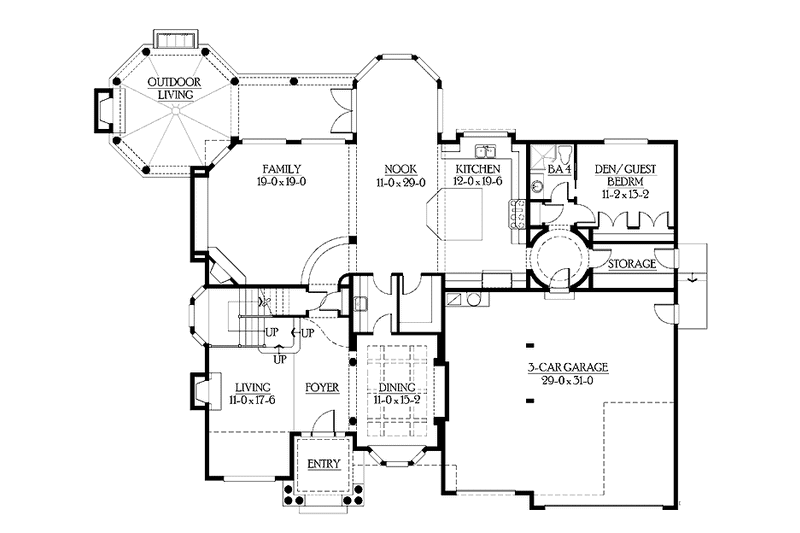

Stone and shingle contribute to the character of this striking Craftsman home. Lovely details are everywhere, such as built-in cabinets and window seats, a coffered ceiling in the dining room, and bumped-out rooms for both the breakfast nook and master sitting area. An open floor plan merges the family room, breakfast nook and kitchen for ease of serving and movement. The fireplace-warmed patio encourages outdoor living. A guest suite resides downstairs, while upstairs, the enormous master suite encompasses a walk-in closet, sitting room and spa-like bath. Three family bedrooms, two baths and a media room complete the floor.

Full Specs & Features


Dimension

Depth : 65'

Height : 30' 2"

Width : 79'

Area

First Floor: 2160 sq/ft

Garage: 936 sq/ft

Porch: 425 sq/ft

Second Floor: 2500 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Shingle/Stone

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Guest Suite

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Butler's Pantry

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Hobby Rec Room Game Room

Loft

Master Sitting Area

Mud Room

Storage Area

Unfinished Future Space

Upstairs Laundry

Vaulted / Cathedral Ceilings

Outdoor Spaces

Balcony

Courtyard

Covered Front Porch

Covered Rear Porch

More

Jack & Jill Bath

Rooms

Bedroom 2:

171 sq/ft width 11' 4" x depth 15' 2"

Bedroom 3:

178 sq/ft width 11' 6" x depth 15' 6"

Den:

147 sq/ft width 11' 2" x depth 13' 2"

Dining Room:

166 sq/ft width 11' x depth 15' 2"

Family Room:

361 sq/ft width 19' x depth 19'

Garage:

899 sq/ft width 29' x depth 31'

Kitchen:

234 sq/ft width 12' x depth 19' 6"

Living Room:

192 sq/ft width 11' x depth 17' 6"

Master Bedroom:

290 sq/ft width 15' 2" x depth 19' 2"

Master Sitting Area:

209 sq/ft width 11' x depth 19'

Media Room:

370 sq/ft width 19' x depth 19' 6"

Nook:

319 sq/ft width 11' x depth 29'
