PLAN 928-183

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description

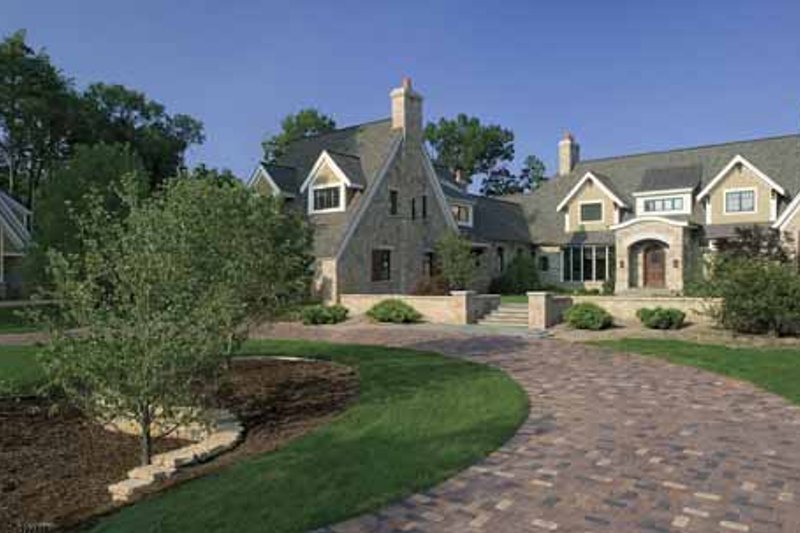

This spectacular home by Visbeen Architects won the Custom Luxury category at the 2009 American Residential Design Awards. Everything about the design alludes to the grandeur of the past, from the European-style courtyard at the front of the house to stone accents and fireplaces throughout. Yet the four-car garage with easy access to a circular front drive is totally modern, as is the home’s open layout. The main-level master suite offers both elegance and comfort with a beamed, barrel-vaulted ceiling, access to a private porch, and a spectacular spa bath. Two large family bedrooms, each with its own bath, reside on the second floor. The optional lower level sports an exercise room, a billiards room, and an elaborate home theater complete with a snack bar.

Floor Plans

Floor Plan - Main Floor Plan
Floor Plan - Upper Floor Plan
Floor Plan - Lower Floor Plan

Full Specs & Features

Depth : 106'
Height : 33' 2"
Width : 112'
Basement Unfinished: 2150 sq/ft height 10'
Bonus: 925 sq/ft height 8'
First Floor: 3600 sq/ft height 10'
Second Floor: 1103 sq/ft height 8'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Shingle/Stone
Framing : Wood - 2x6
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Exercise Room
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Media Room
Mud Room
Open Floor Plan
Unfinished Future Space
Vaulted / Cathedral Ceilings
Wine Cellar
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Rear Porch
Screened Porch
Wrap Around Porch

Bedroom 2:

261 sq/ft width 14' 6" x depth 18'

Bedroom 3:

261 sq/ft width 14' 6" x depth 18'

Dining Room:

210 sq/ft width 14' x depth 15'

Exercise Room:

365 sq/ft width 20' 4" x depth 18'


675 sq/ft width 25' x depth 27'

Garage Two:

675 sq/ft width 27' x depth 25'

Hearth Room:

225 sq/ft width 15' x depth 15'

Home Theater:

500 sq/ft width 24' 4" x depth 20' 7"


242 sq/ft width 17' 4" x depth 14'

Living Room:

277 sq/ft width 15' x depth 18' 6"

Master Bathroom:

229 sq/ft width 13' 6" x depth 17'

Master Bedroom:

270 sq/ft width 15' x depth 18'

Porch - Screened:

144 sq/ft width 8' 6" x depth 17'


279 sq/ft width 15' 6" x depth 18'

What's Included In This Plan Set

See a sample plan set

Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in some areas of Michigan requires special permission from the Architect.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

» See important information before purchasing.

Plan Set

PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Daylight Basement:
Ideal for sloping lot, lower level of home partially underground.


Wood 2x6:
Wood 2x6

Additional Options

Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
