PLAN 1070-178

Photographs may show modified designs.

Save
Home  /  Style  /  Traditional

Key Specs


Plan Sq Ft

4713
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

4.5
Baths

Plan Floors

2
Floors

Plan Garages

2
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Subtotal
NOW $1935.00
You save $215.00 (10% savings)
Sale ends soon!
Best Price Guaranteed*

Also order by phone: 1-888-447-1946
Cost-to-Build Estimates

Cost to Build Reports Only $4.99 with Code CTBSUMMER (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-888-447-1946
Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 1070-178

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Full Specs & Features


Dimension

Depth : 54'

Height : 41' 1"

Width : 77'

Area

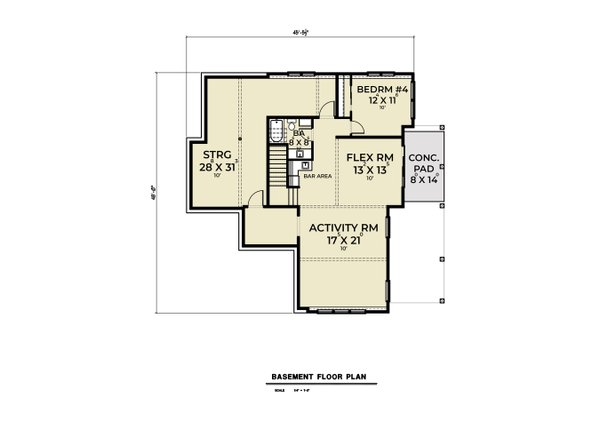

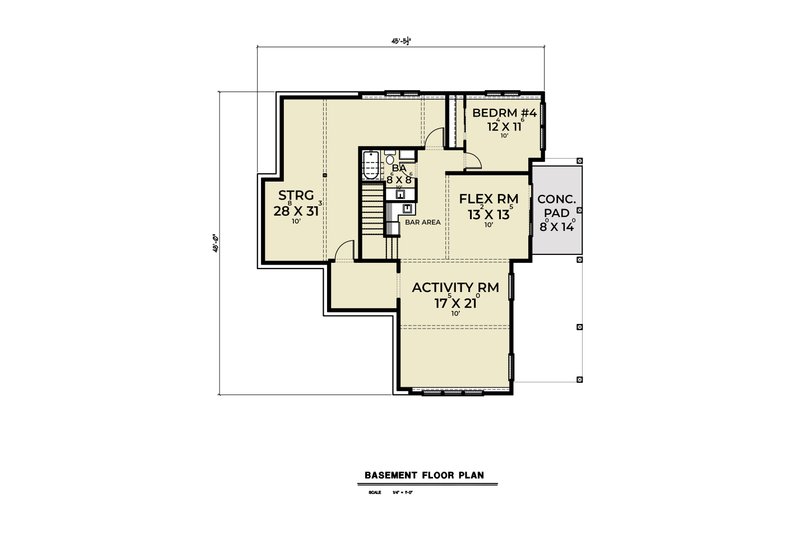

Basement : 1036 sq/ft

Garage : 919 sq/ft

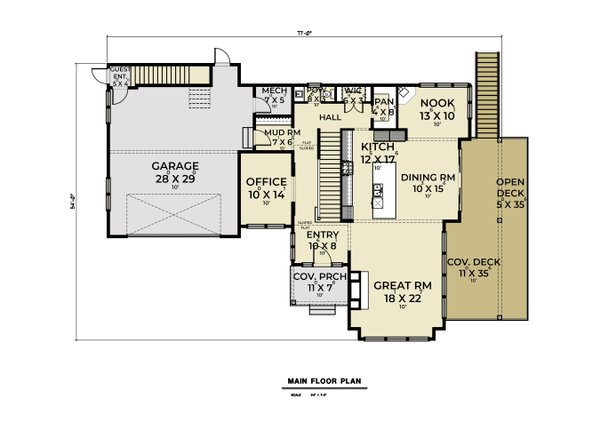

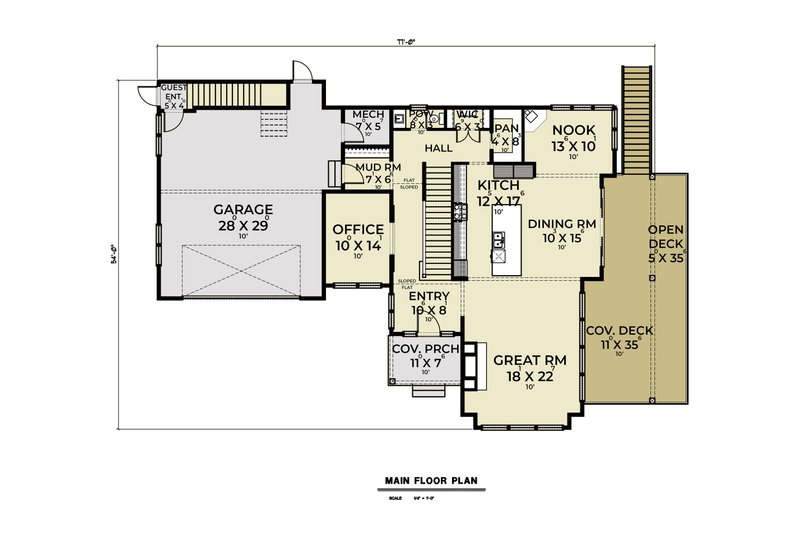

Main Floor : 1690 sq/ft

Storage : 618 sq/ft

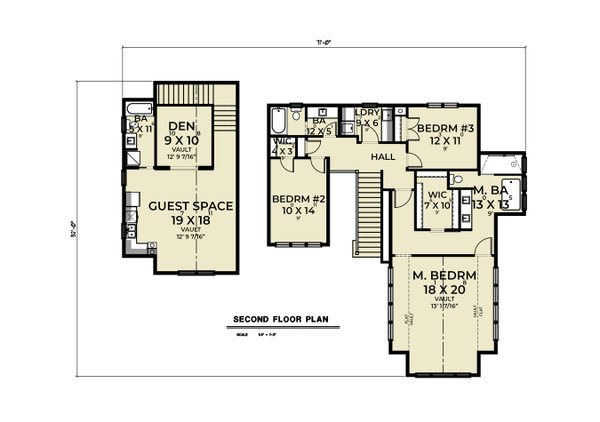

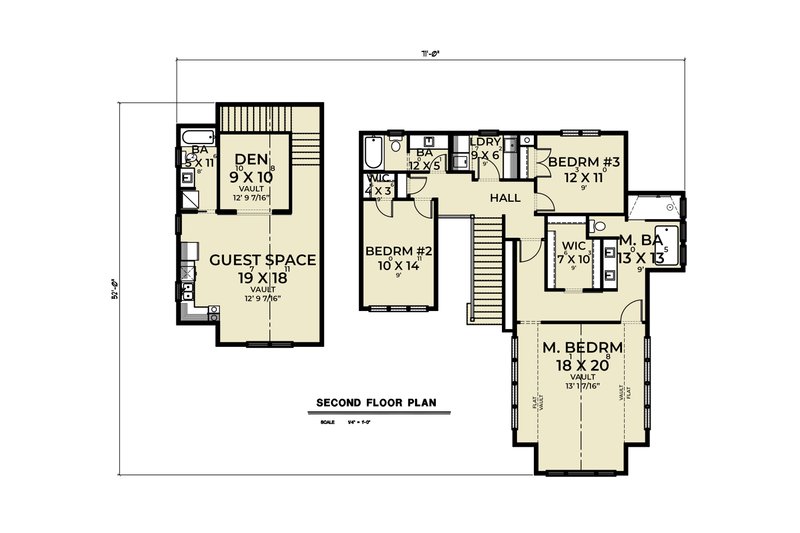

Upper Floor : 1987 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling : 10'

Lower Ceiling : 10'

Main Ceiling : 10'

Upper Ceiling Ft : 9'

Roof

Primary Pitch : 12/12

Roof Framing : Truss

Secondary Pitch : 4/12

Exterior Wall Framing

Framing : 2x6

Bedroom Features

Guest Suite

Lower Level Bedrooms

Split Bedrooms

Upstairs Bedrooms

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Loft

Main Floor Laundry

Mud Room

Play Flex Room

Upstairs Laundry

Garage Features

Front Entry Garage

Oversized Garage

Entryway

Friend S Entry

Lot Characteristics

Suited For Corner Lot

Suited For Sloping Lot

Outdoor Spaces

Grill Deck Sundeck

More

Two Family Home

What's Included In This Plan Set


Please note: This designer includes the bonus square feet to the total heated living square feet.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

» See important information before purchasing.
Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$1935.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$2070.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Single Build:
$2385.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set:
$1147.50
One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Walk Out Basement:
$0.00
Ideal for a sloping lot, lower level with outdoor access.

Framing

Wood 2x6:
$0.00
Wood 2x6

Additional Options

Right-Reading Reverse:
$175.50
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design:
$90.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$35.10
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$180.00
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
