Full Specs & Features
Depth : 47' 8"
Height : 28'
Width : 103'
First Floor: 2861 sq/ft height 8'
Second Floor: 1859 sq/ft
Primary Pitch : 6:12
Roof Framing : Combination Truss/Conventional
Exterior Wall Framing
Exterior Wall Finish : Stone
Framing : Wood - 2x6

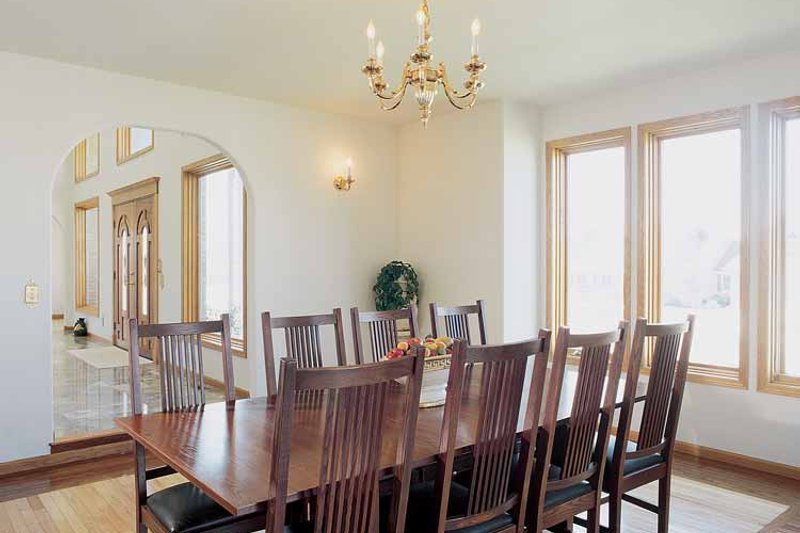

Formal Dining Room
Formal Living Room / Parlor
Kitchenette Wet Bar
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Side Entry Garage
Covered Front Porch
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

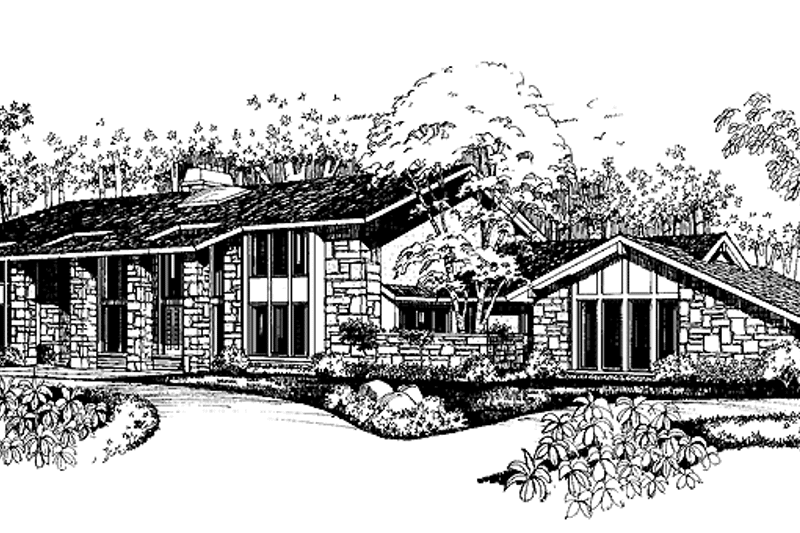

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

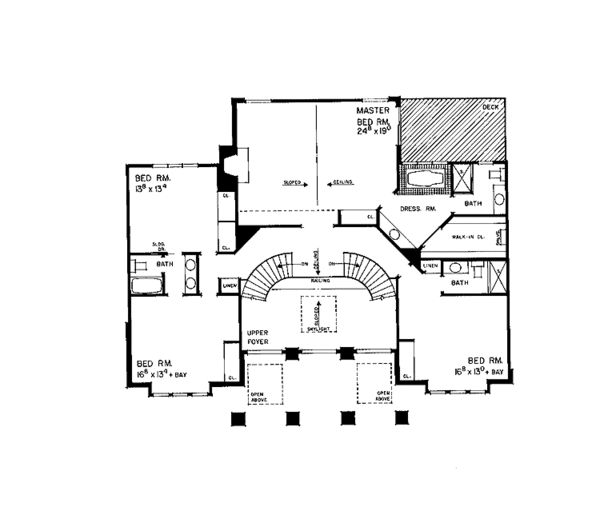

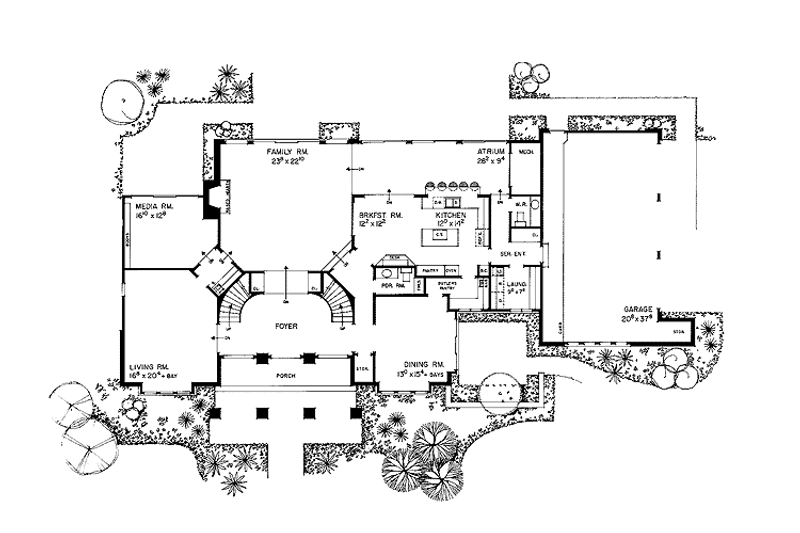

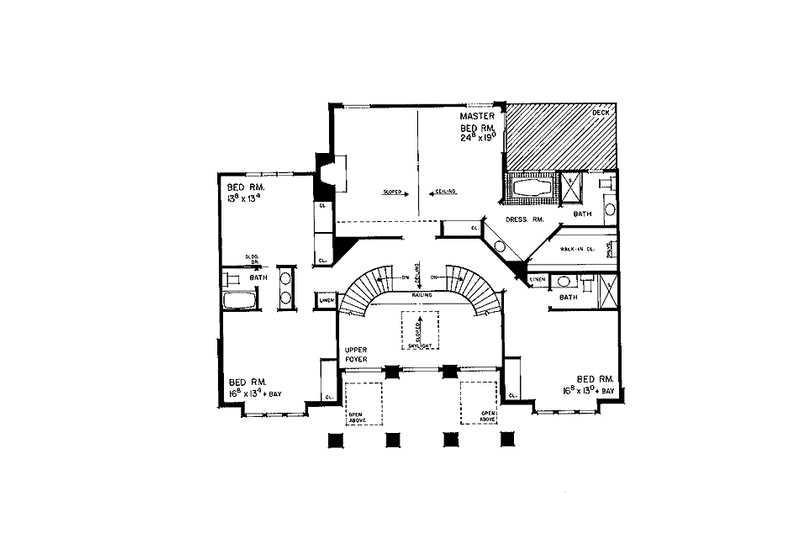

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
