Full Specs & Features
Depth : 68' 6"
Height : 30' 2"
Width : 59' 10"
Garage : 807 sq/ft
Main Floor : 2309 sq/ft
Patios : 182 sq/ft
Porch : 92 sq/ft
Upper Floor : 2451 sq/ft
Garage Ceiling : 11' 6"
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Primary Pitch : 7:12
Roof Framing : Truss
Secondary Pitch : 4:12
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

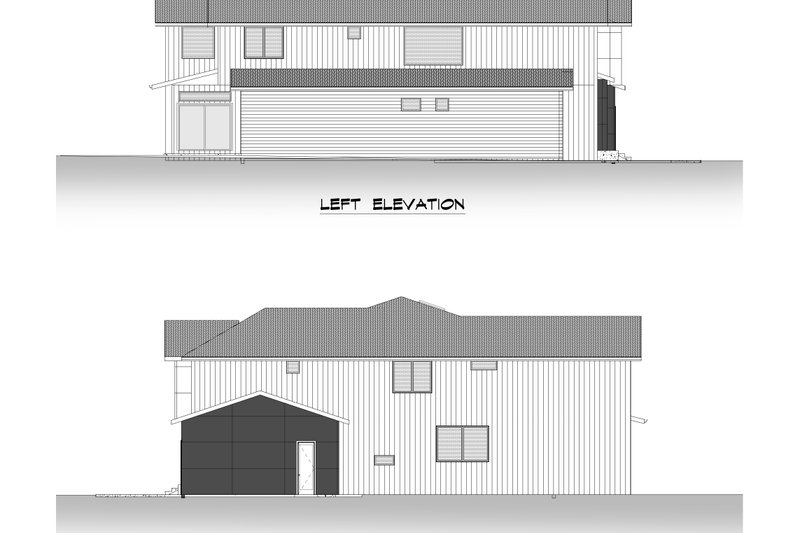

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

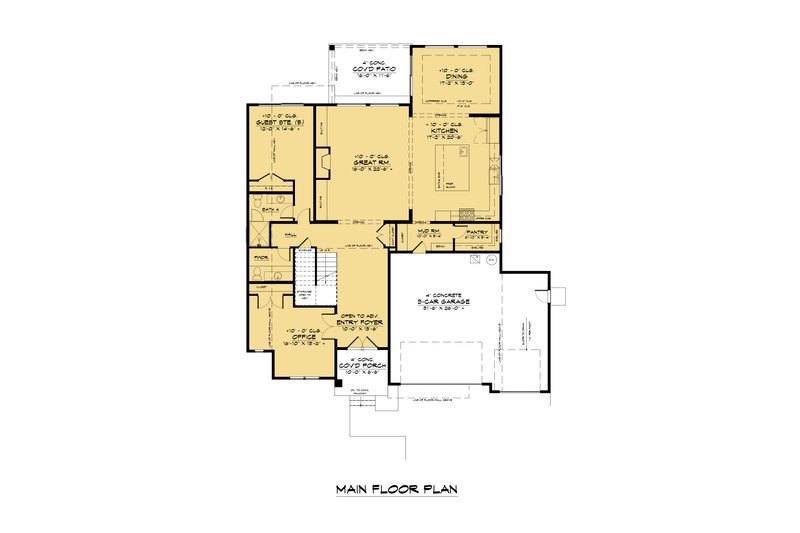

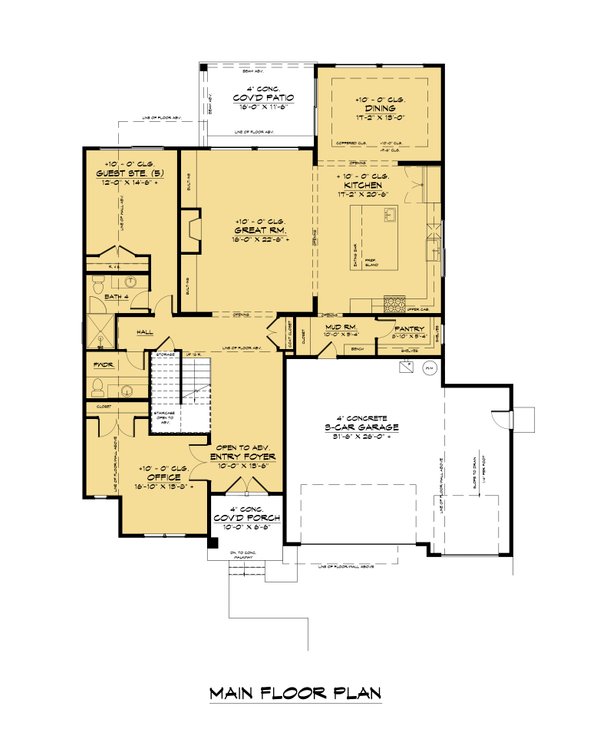

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
