PLAN 929-649
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Phone: 1-888-447-1946
See our Terms & Conditions and Privacy Policy.
PLAN 929-649
Key Specs
4776
sq ft
5
Beds
4
Baths
1
Floors
3
Garages
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description
A modern interpretation of a classic ranch estate, this house plan’s exterior features stately columns, decorative wood brackets and an inviting front porch. Rugged stonework combines with gentle arches in the front clerestory, dormer windows and entryway to add architectural interest. Inside, decorative ceilings with exposed wood beams top the master bedroom, great room, dining room, and screened porch. This hillside home boasts four fireplaces and a rear wall of windows that capture exceptional views. Other custom-styled elements include a wet bar in the media room and a private study/sitting area in the master suite. Lush yet practical, this home provides an abundance of storage and counter space as seen in the kitchen and laundry/mudroom.
Floor Plans
Floor Plan - Upper Floor Plan

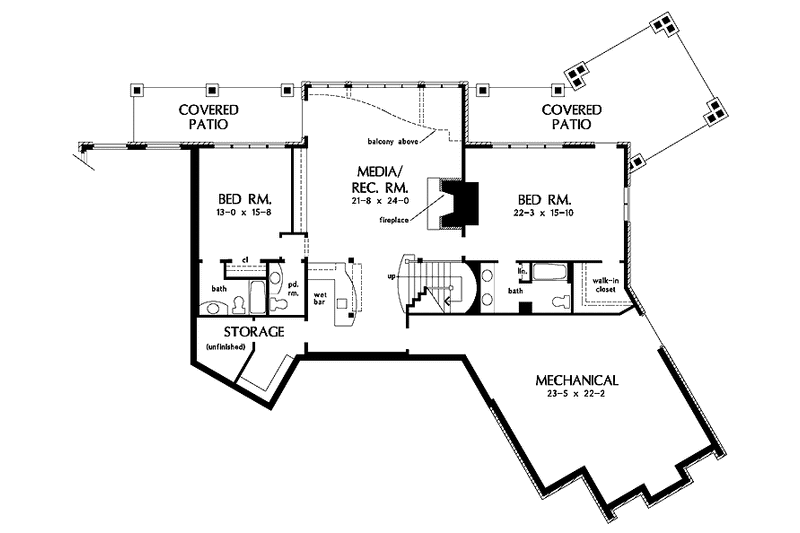

Floor Plan - Lower Floor Plan

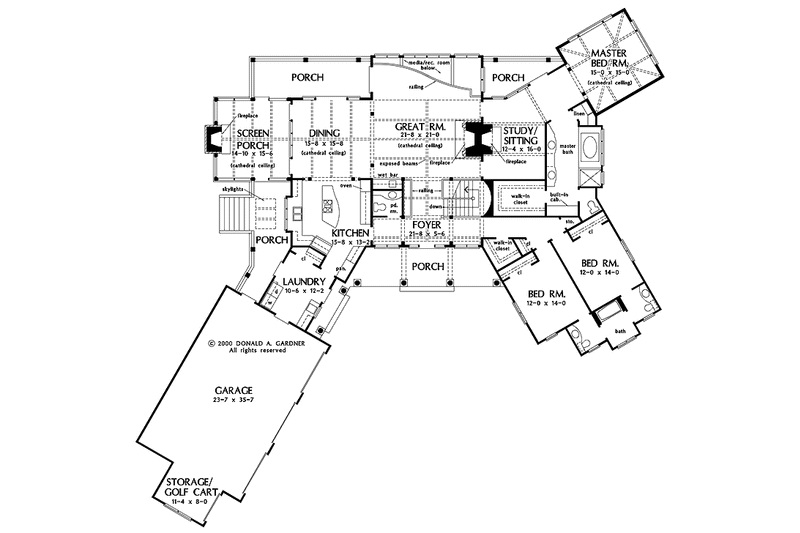

Floor Plan - Main Floor Plan
Full Specs & Features
Height : 41' 6"
Width : 106' 1"
First Floor: 3040 sq/ft height 10'
Garage: 976 sq/ft
Roof Framing : Conventional
Roof Type : Shingle
Framing : Wood - 2x4
Formal Dining Room
Formal Living Room / Parlor
Split Bedrooms
Sunroom
Covered Rear Porch
Screened Porch
3rd BR Closet:
16 sq/ft width 8' x depth 2'
Bathroom 2:
47 sq/ft width 9' 6" x depth 5'
Bathroom 3:
90 sq/ft width 12' 11" x depth 7'
Bedroom 2:
168 sq/ft width 12' x depth 14'
Bedroom 2 Closet:
16 sq/ft width 8' x depth 2'
Bedroom 3:
168 sq/ft width 12' x depth 14'
Bedroom 3 Closet:
16 sq/ft width 8' x depth 2'
Bedroom 4:
352 sq/ft width 22' 3" x depth 15' 10"
Bedroom 4 Closet:
49 sq/ft width 7' x depth 7'
Bedroom 5:
203 sq/ft width 13' x depth 15' 8"
Deck:
204 sq/ft width 24' x depth 8' 6"
Dining Room:
245 sq/ft width 15' 8" x depth 15' 8"
Foyer:
119 sq/ft width 21' 8" x depth 5' 6"
Garage:
839 sq/ft width 23' 7" x depth 35' 7"
Gathering Room:
455 sq/ft width 21' 8" x depth 21'
Hall Bathroom:
108 sq/ft width 18' x depth 6'
Hall Closet:
30 sq/ft width 5' 8" x depth 5' 4"
Kitchen:
206 sq/ft width 15' 8" x depth 13' 2"
Master Bathroom:
201 sq/ft width 10' 10" x depth 18' 7"
Master Bedroom:
225 sq/ft width 15' x depth 15'
Master Closet:
72 sq/ft width 10' 4" x depth 7'
Porch - Front:
216 sq/ft width 27' 11" x depth 7' 9"
Porch - Left:
136 sq/ft width 8' x depth 17'
Porch - Rear:
192 sq/ft width 24' x depth 8'
Powder Room:
28 sq/ft width 5' 10" x depth 4' 11"
Storage:
6 sq/ft width 3' 2" x depth 2'
Study:
197 sq/ft width 12' 4" x depth 16'
Utility Room:
127 sq/ft width 10' 6" x depth 12' 2"
What's Included In This Plan Set
Donald A. Gardner typically charges $100.00 to review plan changes and prepare an estimate for your modifications.
However, for a limited time, we're cutting that in half to only $49.00! This fee can be applied to your plan modifications once you move forward with the service. Please call if you would like to order a Plan Modification quote from the Donald A. Gardner Plan Collection.
Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
- Cover Sheet - A rendering of the front exterior of the house.
- Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
- Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
- Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
- Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
- Door and window schedules - Sizes, quantities and descriptions of all doors and windows shown on the plan.
- Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
- Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
- Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
- Each plan is designed to be consistent with CABO One and Two Family Dwelling Code or the International Residential Code in effect at the time the plan was created. Modifications may be necessary to meet applicable building codes, ordinances, local climatic, and geographical design criteria. Consult a builder, architect or other construction professional as necessary. Manufacturer instructions should be followed for all materials, appliances, and systems. Heating/air conditioning layouts, plumbing pipe layouts, and electrical wiring layouts are not included. Consult a local mechanical contractor for systems suitable for local climate conditions.
| 5 Copy Set
: $1386.00 |
5 printed plan sets mailed to you. |
| 8 Copy Set
: $1444.50 |
8 printed plan sets mailed to you. |
| PDF Set
: $1696.50 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set
: $1696.50 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| CAD Set
: $3132.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
| Single Set
: $1296.00 |
One printed set for bidding purposes only. Not a legal building set for construction. |
Foundation
| Daylight Basement: $0.00 |
Ideal for sloping lot, lower level of home partially underground. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
| Wood 2x6: $310.50 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse
: $180.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets
: $54.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design
: $90.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $35.10 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $180.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Material List
: $72.00 |
A list of building supplies needed to construct the infrastructure of your new house. |
*Alternate Foundations may take time to prepare.
