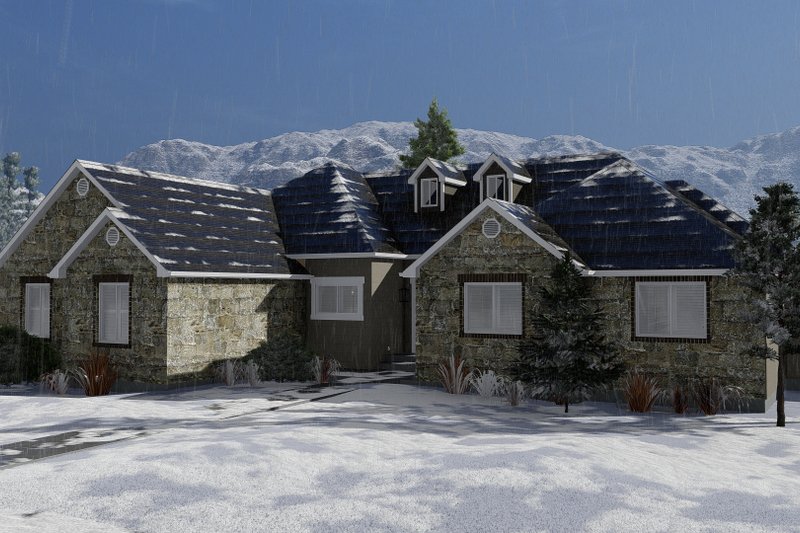

PLAN 1060-13
Photographs may show modified designs.
- Jump to:
- All (23)
- Floor plans (2)
Get Personalized Help
Phone: 1-888-447-1946
See our Terms & Conditions and Privacy Policy.
Use Code CTB2026
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1060-13
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Floor Plan - Main Floor
Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth: 58'
Height: 22' 10"
Width: 68' 4"
Area
Basement Living: 2404 sq/ft height 8'
First Floor: 2406 sq/ft height 10'
Garage: 622 sq/ft
Roof
Primary Pitch: 9:12
Roof Framing: Truss
Roof Type: Asphalt
Exterior Wall Framing
Exterior Wall Finish: Stone/Stucco
Framing: Wood - 2x6
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Media Room
Mud Room
Open Floor Plan
Garage Features
Side Entry Garage
Rooms
Bath 1:
55 sq/ft width 11' x depth 5'
Bath 3:
52 sq/ft width 10' 4" x depth 5'
Bedroom 1:
165 sq/ft width 11' 9" x depth 14'
Bedroom 2:
173 sq/ft width 12' x depth 14' 5"
Bedroom 4:
207 sq/ft width 11' 6" x depth 18'
Bedroom 4 Closet:
54 sq/ft width 9' x depth 6'
Bedroom 5:
173 sq/ft width 12' 1" x depth 14' 4"
Dining Room:
180 sq/ft width 18' x depth 10'
Family Media Room:
874 sq/ft width 48' 7" x depth 18'
Family Room:
556 sq/ft width 21' 8" x depth 26' 8"
Garage:
622 sq/ft width 23' 7" x depth 25' 2"
Hers Master Closet:
48 sq/ft width 8' x depth 6'
His Master Closet:
48 sq/ft width 8' x depth 6'
Home Office:
295 sq/ft width 17' 7" x depth 16' 9"
Home Office Closet:
66 sq/ft width 13' 2" x depth 5'
Kitchen:
303 sq/ft width 18' x depth 16' 10"
Laundry:
46 sq/ft width 8' x depth 5' 9"
Master Bath:
114 sq/ft width 13' 6" x depth 8' 5"
Master Bedroom:
240 sq/ft width 17' 9" x depth 13' 6"
Storage:
139 sq/ft width 17' 9" x depth 7' 10"
What's Included In This Plan Set
- Cover Sheet: General Notes for framing, plumbing, electrical, window/egress, concrete, fastener schedule; plan index.
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): Sectional details showing room and attached exterior details, floor-to-floor heights.
- Electrical Plan(s): Shows the location of lights, receptacles, switches, etc. with a legend.
- Detail Sheet(s): Roof vents, heel truss, soffit/ridge vents, stair framing, fasteners and connectors, flashing and air sealing (reference).
- Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Framing Detail(s): If included, the framing layout is intended to be a suggested layout only. Will typically show joist direction, stair opening, bearing walls.
- Wall Section(s): Sectionals showing wall types and details.
- Energy Guidelines: Climate zone estimations by component; R-values, U-factors, SHGC, air barrier & insulation installation criteria table.
Plan Set
$1250.00
$1495.00
$1650.00
$1795.00
$1950.00
$2250.00
Foundation
$350.00
$350.00
Framing
$0.00
$250.00
Additional Options
$195.00
$165.00
$395.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
