Full Specs & Features
Depth : 78' 6"
Height : 27' 4"
Width : 92' 1"

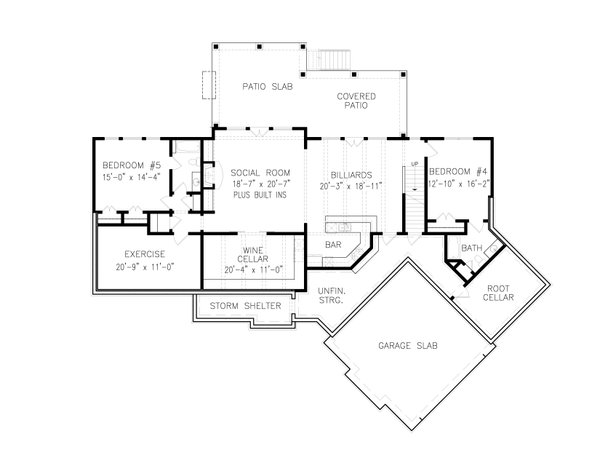

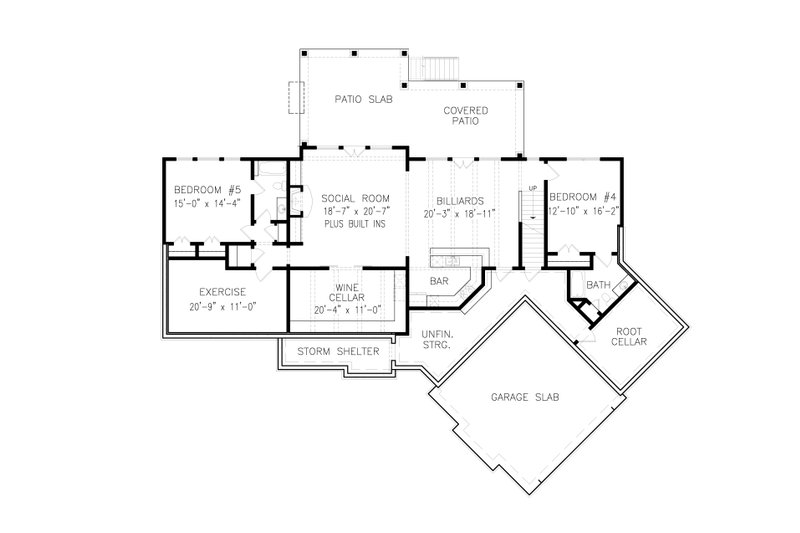

Basement : 2165 sq/ft
Garage : 594 sq/ft

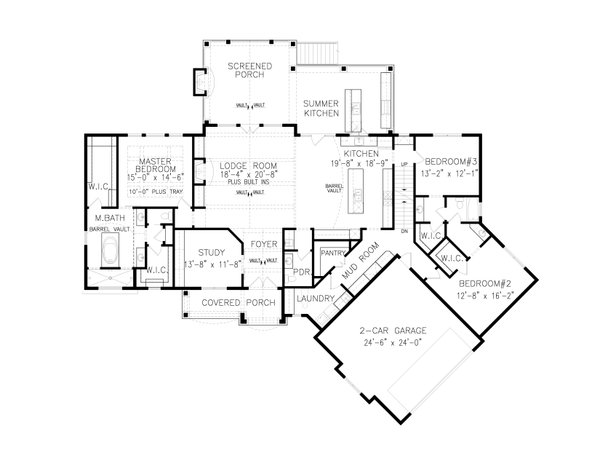

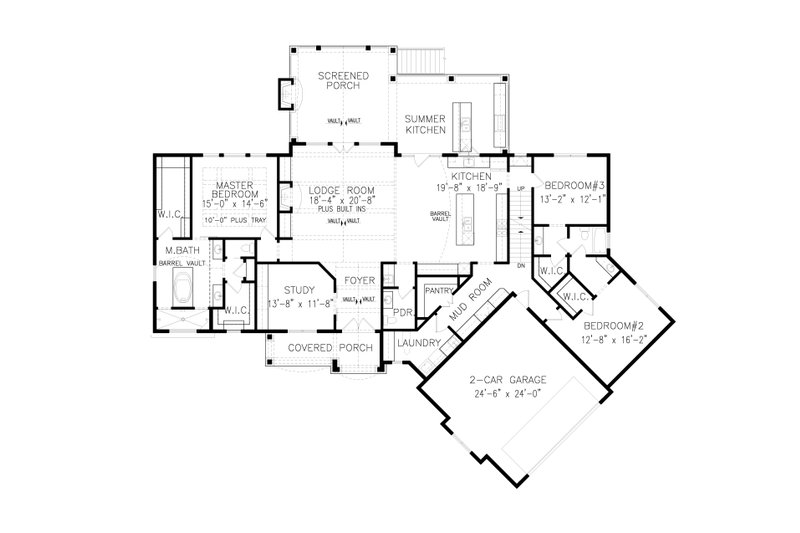

Main Floor : 2806 sq/ft
Storage : 538 sq/ft

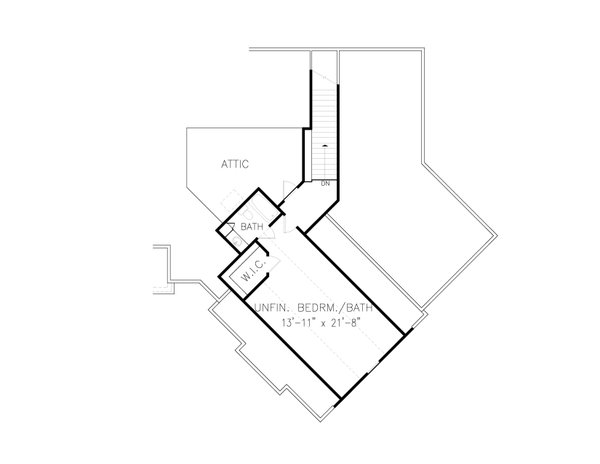

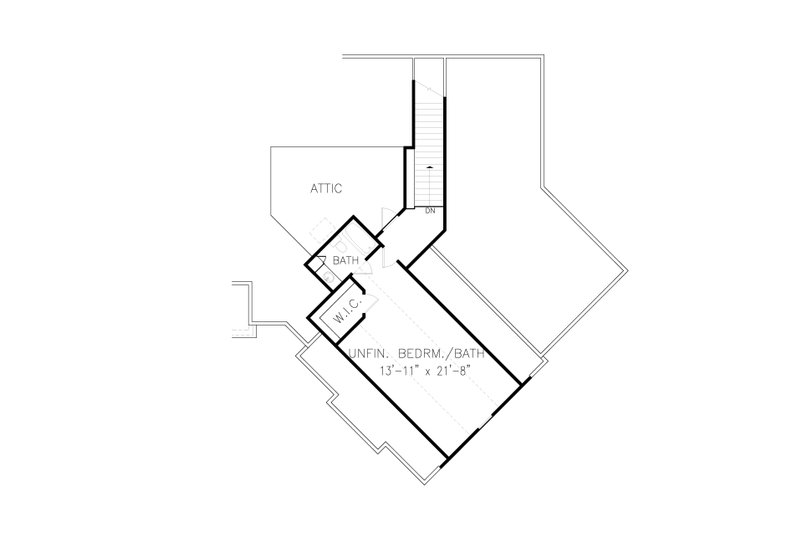

Upper Floor : 510 sq/ft
Lower Ceiling : 9'
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Exterior Wall Framing
Framing : 2x4
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
