Plan Description

This mediterranean design floor plan is 4994 sq ft and has 3 bedrooms and 2.5 bathrooms.

Floor Plans

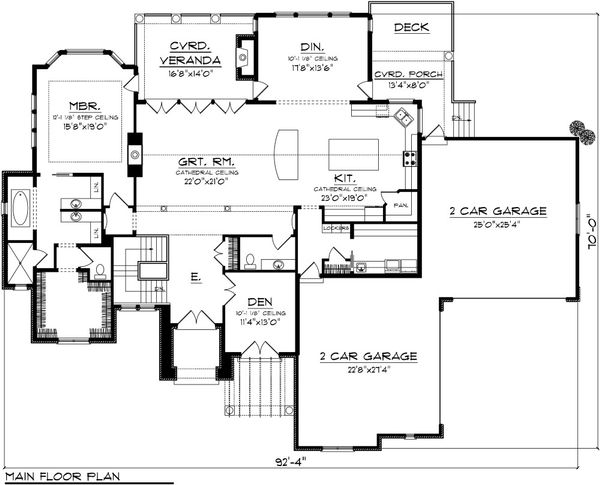

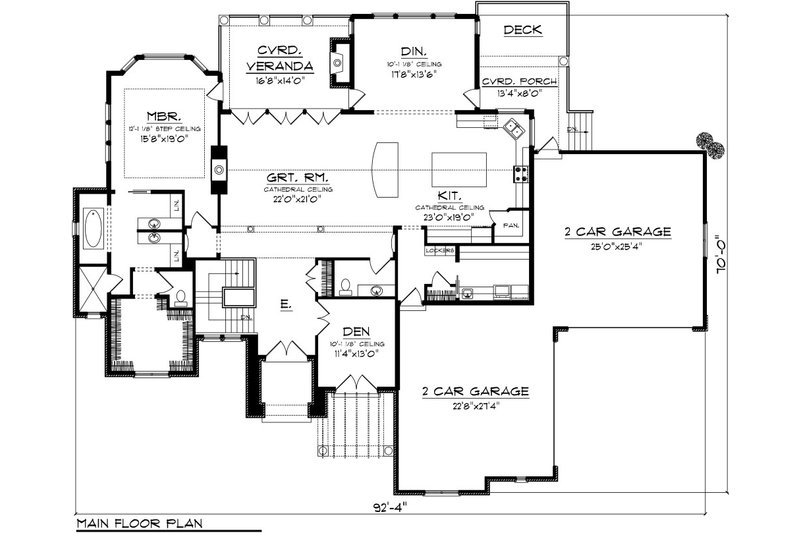

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

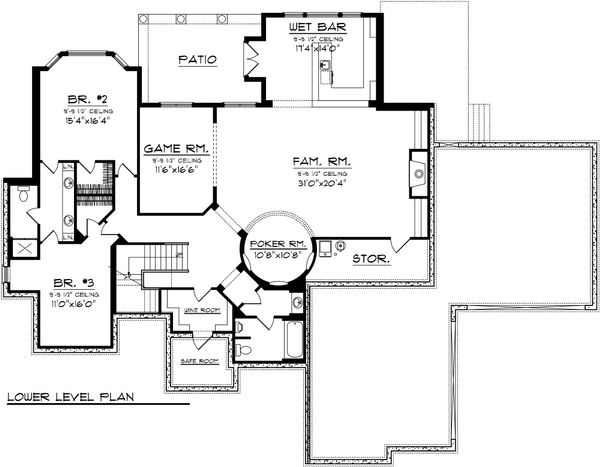

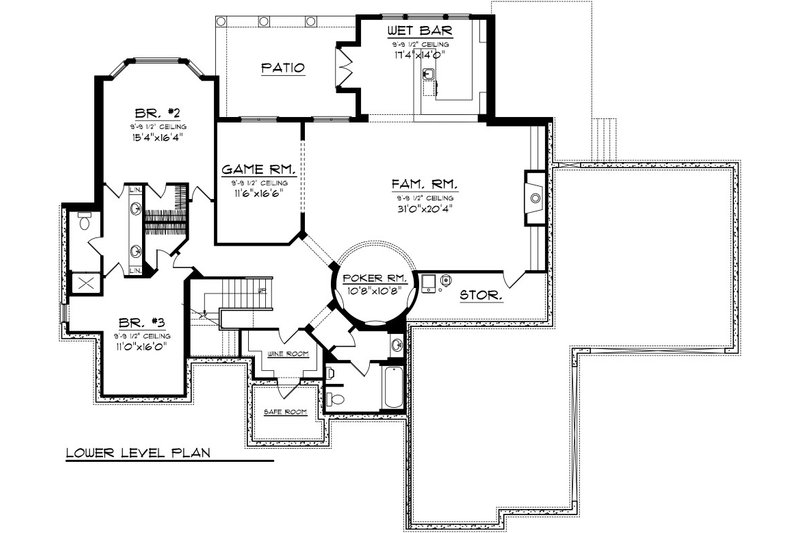

Floor Plan - Lower Floor

Reverse

Full Specs & Features

Dimension

Depth : 70'

Height : 27' 6"

Width : 92' 4"

Area

Basement Living: 2357 sq/ft height 9'

First Floor: 2637 sq/ft height 10'

Garage: 1272 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Upper Ceiling Ft : 10'

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Load : 47

Roof Type : shingle

Secondary Pitch : 5:12

Exterior Wall Framing

Exterior Wall Finish : Siding, Stucco, Stone

Framing : 2x6

Insulation : R-13

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Upstairs Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Great Room Living Room

Hobby Rec Room Game Room

Loft

Main Floor Laundry

Garage Features

Front Entry Garage

Side Entry Garage

Split Garage

Lot Characteristics

Suited For Corner Lot

Suited For Sloping Lot

Suited For View Lot

Outdoor Spaces

Balcony

Covered Front Porch

Covered Rear Porch

Grill Deck Sundeck

Rooms

Basement:

width 92' 4" x depth 70'

Bath 2:

width 10' x depth 12' 4"

Bedroom 2:

width 15' 4" x depth 16' 4"

Bedroom 2 Closet:

width 5' 8" x depth 4' 11"

Bedroom 3:

width 11' x depth 16'

Bedroom 3 Closet:

width 6' 6" x depth 4'

Deck:

width 13' 8" x depth 8'

Den:

width 11' 4" x depth 13'

Dining Room:

width 17' 8" x depth 13' 6"

Family Room:

width 31' x depth 20' 4"

Foyer:

width 8' 6" x depth 14' 3"

Garage:

width 25' x depth 25' 4"

Garage 2:

width 22' 8" x depth 27' 4"

Great Room:

width 22' x depth 21'

Hall:

width 3' 6" x depth 10' 3"

Hall Bath:

width 10' 9" x depth 11' 1"

Kitchen:

width 15' 8" x depth 19'

Laundry:

width 10' 4" x depth 8'

Master Bath:

width 16' 9" x depth 17' 5"

Master Bedroom:

width 15' 8" x depth 19'

Master Closet:

width 12' x depth 9'

Mud Room:

width 4' 7" x depth 5' 8"

Pantry:

width 54' 2" x depth 4' 11"

Poker Room:

width 10' 8" x depth 10' 8"

Porch Front:

width 8' 2" x depth 6' 10"

Porch Rear:

width 16' 8" x depth 14'

Porch Right:

width 13' 4" x depth 8'

Powder Room:

width 9' x depth 5' 5"

Wine Room:

width 9' 4" x depth 6' 6"

What's Included In This Plan Set

See a sample plan set

Cover sheet with front rendering
Foundation and floor plans at 1/4" = 1' scale
Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Building sections and details as required to construct the individual design
Interior elevation of cabinets at 1/4" = 1' scale
Roof plans
Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
