Full Specs & Features
Depth : 24'
Height : 14' 8"
Width : 25'
First Floor: 522 sq/ft height 8'
Porch: 78 sq/ft
Main Ceiling : 8'
Primary Pitch : 6:12
Roof Framing : stick
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x4"
Walk In Closet
Suited For Narrow Lot
Covered Front Porch
Economical To Build
Suited For Vacation Home
219 sq/ft width 12' 8" x depth 17' 4"
118 sq/ft width 11' 4" x depth 10' 6"
Porch - Front:
78 sq/ft width 13' x depth 6'
What's Included In This Plan Set
- FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
- FRONT RENDERING: 1/4" Scale

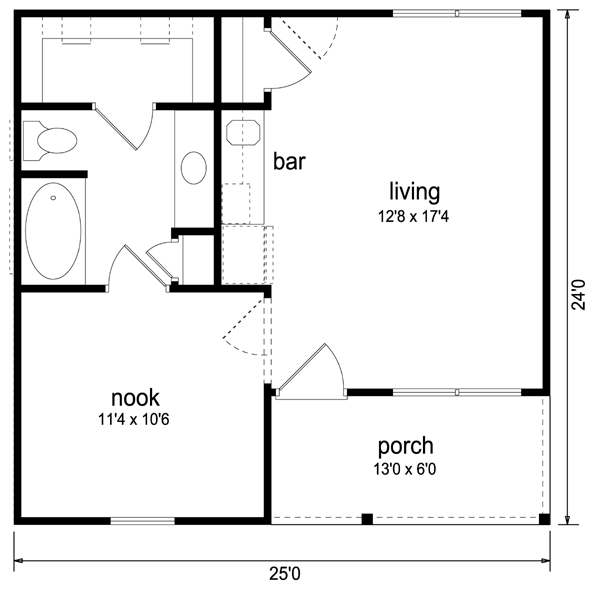

- FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.
- ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
- ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
- STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
