PLAN 314-294
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 103' 6"
Height : 29' 4"
Width : 88' 2"
Area
Deck: 410 sq/ft
First Floor: 3490 sq/ft
Garage: 800 sq/ft
Second Floor: 1767 sq/ft
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Shingle
Framing : Wood - 2x6
Bedroom Features
2 Master Suites
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Main Floor Master Bedroom
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Loft
Main Floor Laundry
Master Sitting Area
Open Floor Plan
Sunroom
Vaulted / Cathedral Ceilings
Outdoor Spaces
Balcony
Courtyard
Covered Front Porch
Covered Rear Porch
Deck
Screened Porch
Rooms
Bedroom 3:
231 sq/ft width 16' 4" x depth 14' 2"
Bedroom 4:
237 sq/ft width 14' 10" x depth 16'
Bedroom 5:
141 sq/ft width 11' x depth 12' 10"
Breakfast:
150 sq/ft width 10' 4" x depth 14' 6"
Covered Front Porch:
193 sq/ft width 26' 2" x depth 7'
Covered Rear Porch:
58 sq/ft
Dining:
235 sq/ft width 15' x depth 15' 8"
Family Room:
352 sq/ft width 18' 6" x depth 19'
Foyer:
123 sq/ft width 10' x depth 12' 4"
Garage:
800 sq/ft width 24' x depth 32'
Kitchen:
246 sq/ft width 14' 2" x depth 17' 4"
Laundry Room:
97 sq/ft width 7' 4" x depth 13' 2"
Living Room:
380 sq/ft width 19' 6" x depth 19' 6"
Loft:
98 sq/ft width 7' 8" x depth 12' 10"
Master Bath 2:
185 sq/ft width 15' x depth 12' 4"

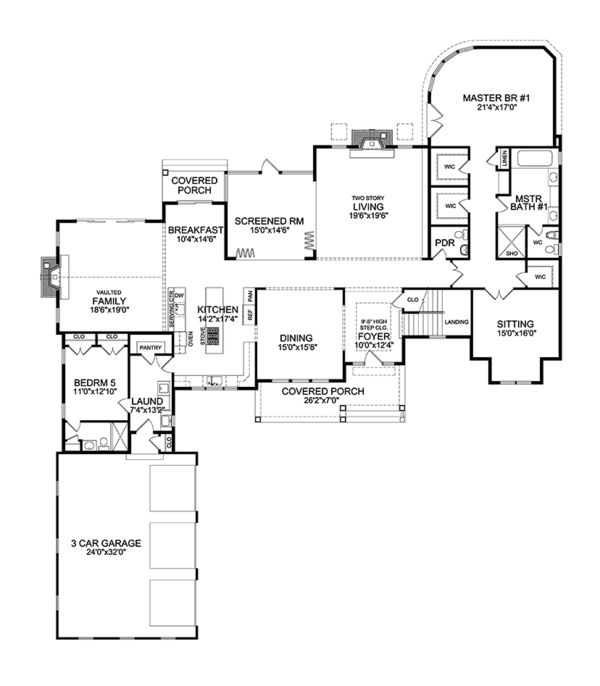

Master Bedroom 1:
363 sq/ft width 21' 4" x depth 17'
Master Bedroom 1 Sitting:
240 sq/ft width 15' x depth 16'

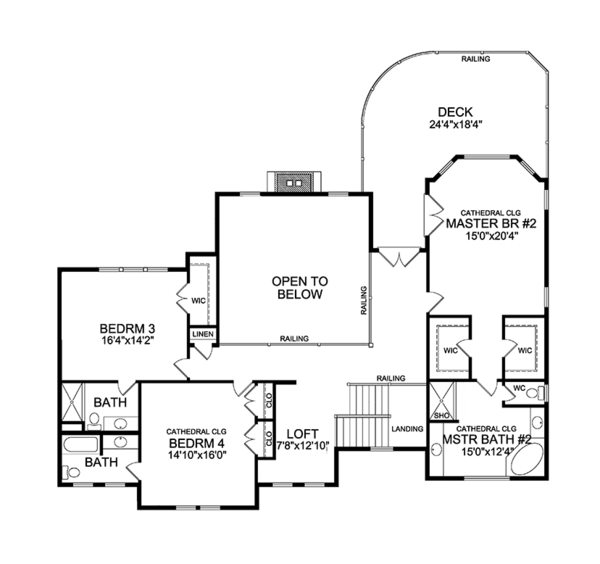

Master Bedroom 2:
305 sq/ft width 15' x depth 20' 4"
Screened Porch:
228 sq/ft width 15' x depth 14' 6"
Upper Level Deck:
410 sq/ft width 24' 4" x depth 18' 4"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1428.00
$1530.00
$1623.50
$1649.00
$2375.75
Foundation
$0.00
$0.00
$127.50
Framing
$0.00
$127.50
Additional Options
$297.50
$42.50
$85.00
$33.15
$42.50
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
