PLAN 928-259
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Phone: 1-888-447-1946
See our Terms & Conditions and Privacy Policy.
PLAN 928-259
Key Specs
5269
sq ft
4
Beds
5.5
Baths
2
Floors
5
Garages
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description
Here's a splendid hillside design that's right at home on a waterfront lot. Designed by Visbeen Architects, the home plan won Second Place in the Published Designs category at the 2013 American Residential Design Awards. The creative layout emphasizes open spaces and casual living. Relax in the covered deck off the living room, or downstairs at the impressive bar. The master suite enjoys a private porch. Another bedroom rests downstairs, with two more above the garage in the guest apartment. A clever bridge connects the garage to the main house. A plan for an additional detached garage is included.
Floor Plans

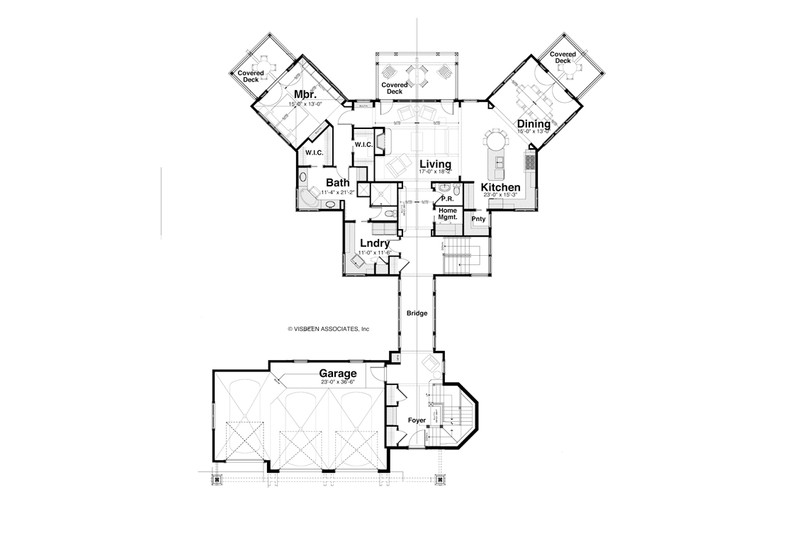

Floor Plan - Main Floor Plan

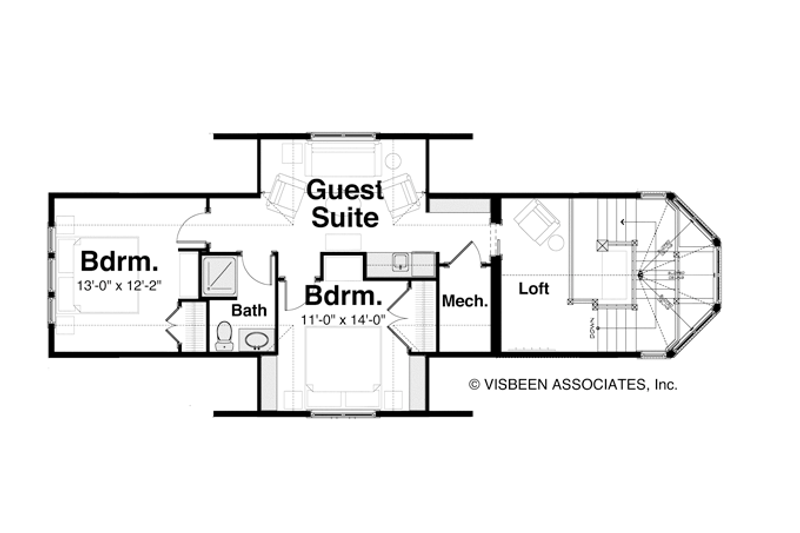

Floor Plan - Upper Floor Plan

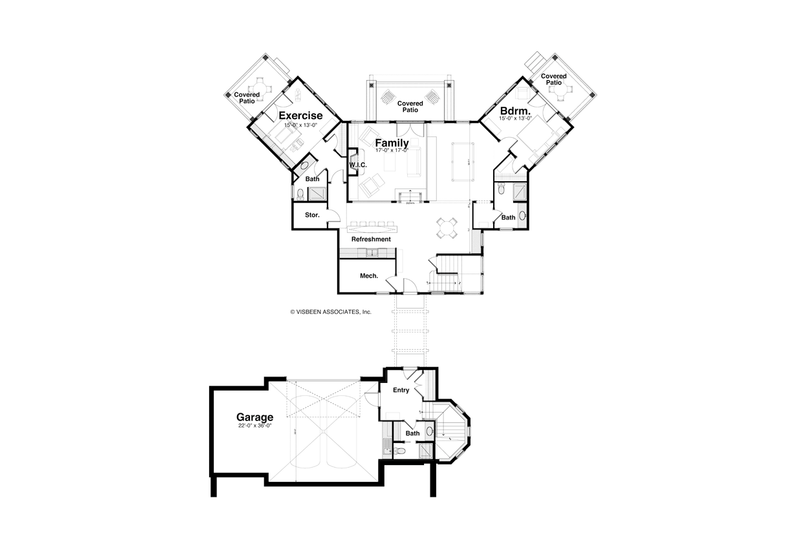

Floor Plan - Lower Floor Plan
Full Specs & Features
Height : 23' 8"
Width : 79' 10"
First Floor: 2462 sq/ft height 9'
Second Floor: 740 sq/ft height 8'
Roof Framing : Truss
Roof Type : Asphalt
Framing : Wood - 2x6
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Mud Room
Open Floor Plan
Workshop
Courtyard
Covered Front Porch
Covered Rear Porch
Deck
Bedroom 2:
width 13' x depth 12' 2"
Bedroom 3:
width 11' x depth 14'
Bedroom 4:
width 15' x depth 13'
Dining:
width 15' x depth 13'
Exercise:
width 15' x depth 13'
Family Room:
width 17' x depth 17'
Garage:
width 23' x depth 36' 6"
Garage 2:
width 22' x depth 36'
Kitchen:
width 23' x depth 15' 3"
Laundry:
width 11' x depth 11' 6"
Living Room:
width 17' x depth 18' 2"
Master Bath:
width 11' 4" x depth 21' 2"
Master Bedroom:
width 15' x depth 13'
What's Included In This Plan Set
Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in some areas of Michigan requires special permission from the Architect.
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
| PDF Set
: $1995.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Set
: $3995.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Basement: $0.00 |
Ideal for level lot, lower level of home partially or fully underground. |
Framing
| Wood 2x6: $0.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse
: $195.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
