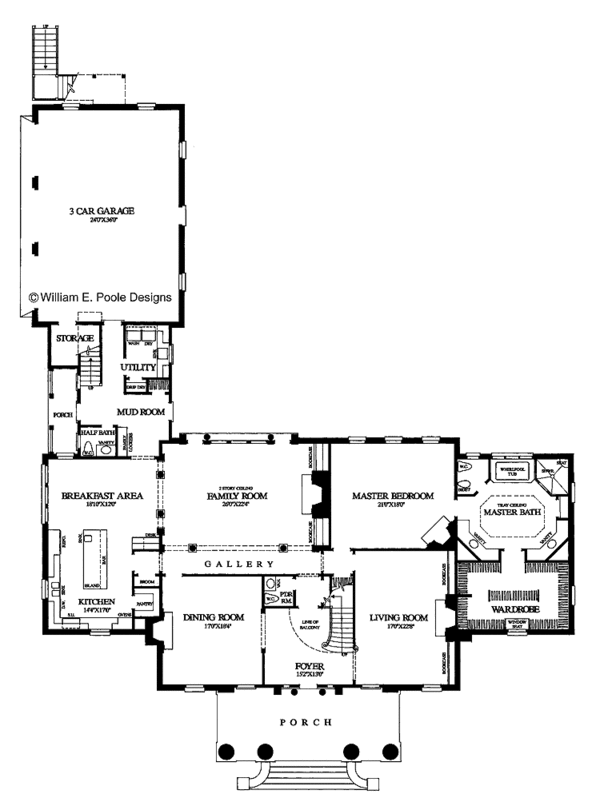

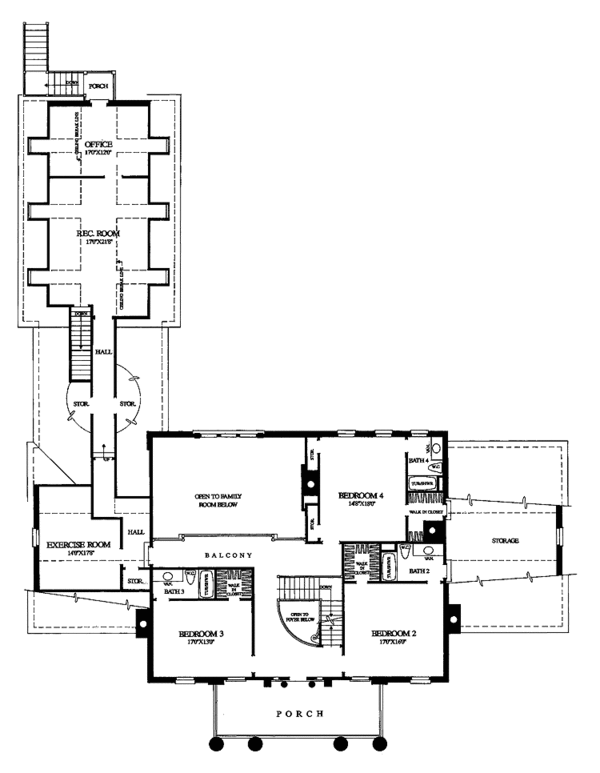

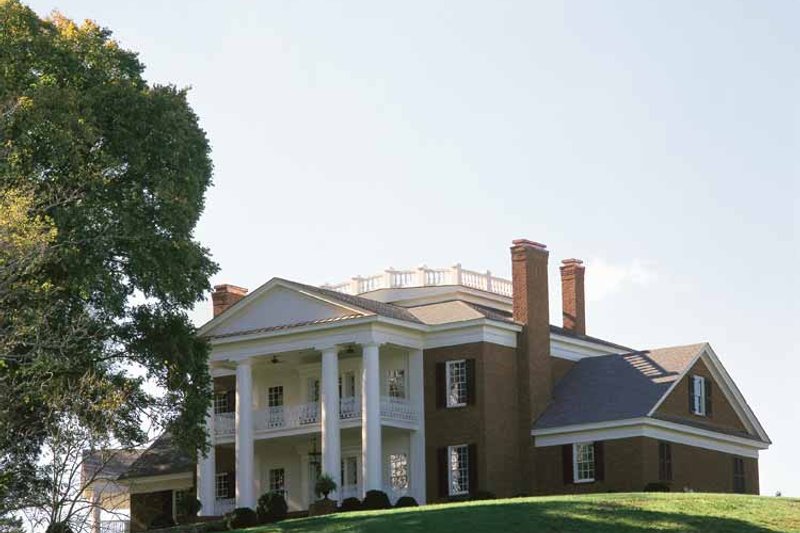

This stately manor brings to mind the grandeur of a fading age. The pedimented, columned porch commands awe and acts as centerpiece to the perfectly symmetrical facade. Inside, formal spaces welcome guests at the front of the plan, with an elegant dining room and formal living room flanking the large foyer. Ahead, past the staircase, find the gallery hall, which opens through double columns to the more casual family room. Here, a warming hearth and outdoor access will be enjoyed by family and guests. Another set of double columns on the left introduces the breakfast area and island kitchen. To the rear of these rooms, convenience is provided by a half-bath, mudroom, and utility area. A truly pampering master suite resides on the opposite side of the plan. Upstairs, three bedrooms each have a private bath. An exercise room, rec room, and office space complete the second floor.
272 sq/ft width 17' x depth 16'
221 sq/ft width 17' x depth 13'
205 sq/ft width 14' 8" x depth 14'
225 sq/ft width 18' 10" x depth 12'
311 sq/ft width 17' x depth 18' 4"
864 sq/ft width 24' x depth 36'
56 sq/ft width 8' x depth 7'
580 sq/ft width 26' x depth 22' 4"
243 sq/ft width 14' 4" x depth 17'
385 sq/ft width 17' x depth 22' 8"
323 sq/ft width 17' x depth 19'
378 sq/ft width 21' x depth 18'
216 sq/ft width 19' x depth 11' 5"
65 sq/ft width 7' 4" x depth 9'
|5 Copy Set
|5 printed plan sets mailed to you.|
|8 Copy Set
|8 printed plan sets mailed to you.|
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|One printed set for bidding purposes only. Not a legal building set for construction.|
|Ideal for level lot, lower level of home partially or fully underground.|
|Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
