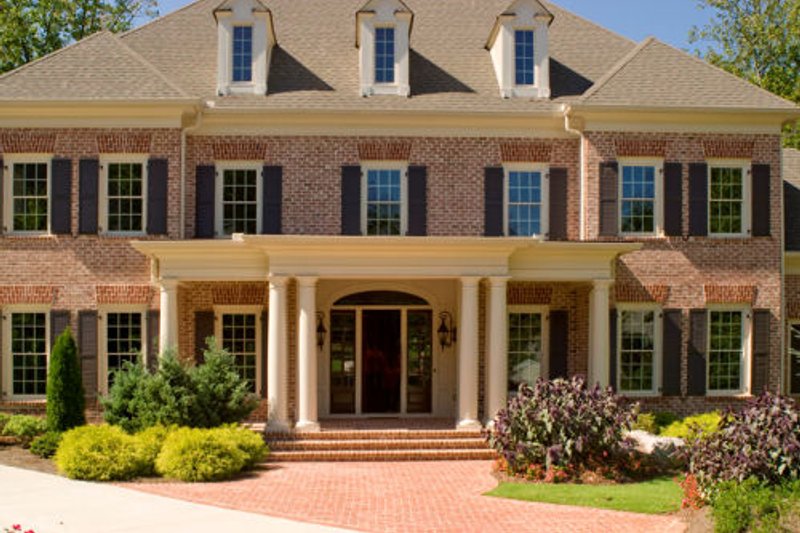

Photographs may show modified designs.


PLAN 119-357

Select Plan Set Options

What's included?
Additional Construction Sets
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.

We do our best to get back within 24 - 48 business hours.
Need an answer fast? Call us now.
Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN 119-357

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Floor Plans

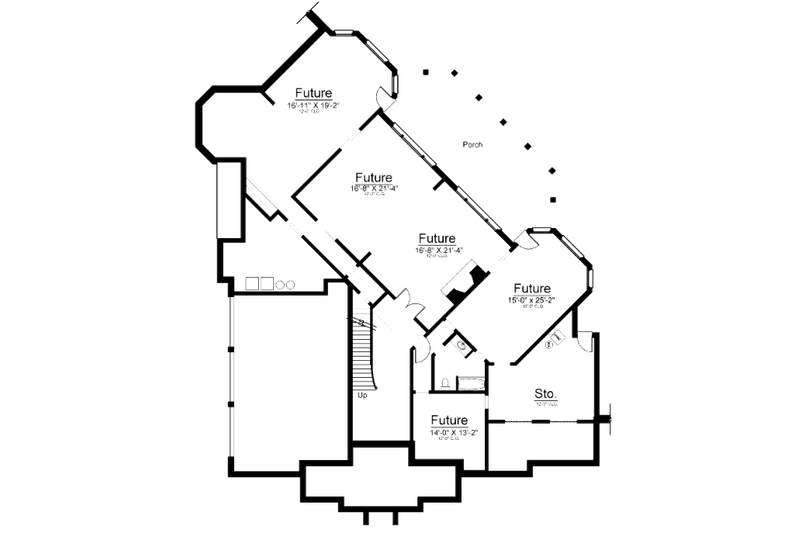

Floor Plan - Lower Floor Plan
European Floor Plan - Lower Floor Plan Plan #119-357

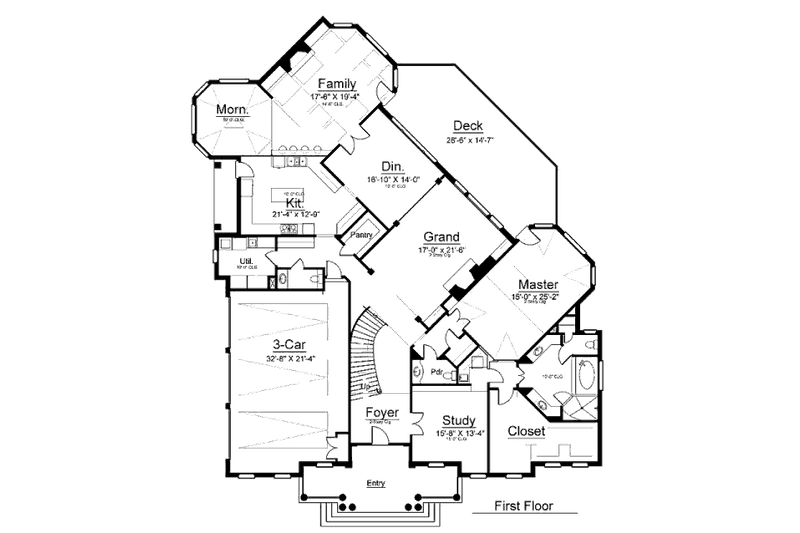

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #119-357

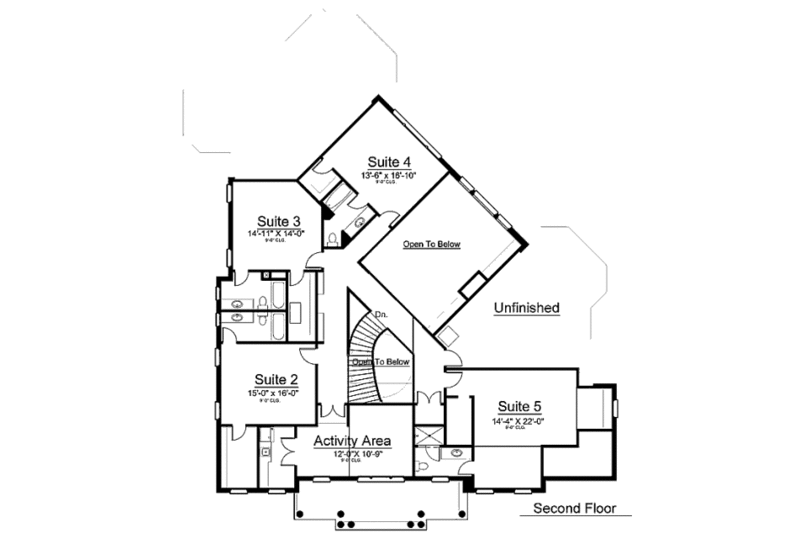

Floor Plan - Upper Floor Plan
European Floor Plan - Upper Floor Plan Plan #119-357

Full Specs & Features

Depth : 89'
Height : 42'
Width : 73'
Basement Unfinished: 3227 sq/ft
Bonus: 504 sq/ft
First Floor: 3246 sq/ft
Garage: 709 sq/ft
Second Floor: 1712 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Primary Pitch : 12:12
Roof Framing : Combination Truss/Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Master Sitting Area
Storage Area
Unfinished Future Space
Lot Characteristics
Suited For Corner Lot
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck

Activity Room:

132 sq/ft width 11' x depth 12'

Bath 2:

66 sq/ft width 11' x depth 6'

Bath 3:

66 sq/ft width 11' x depth 6'

Bath 4:

42 sq/ft width 7' x depth 6'

Bedroom 2:

240 sq/ft width 16' x depth 15'

Bedroom 2 Closet:

60 sq/ft width 6' x depth 10'

Bedroom 3:

210 sq/ft width 15' x depth 14'

Bedroom 3 Closet:

60 sq/ft width 5' x depth 12'

Bedroom 4:

238 sq/ft width 17' x depth 14'

Bedroom 4:

238 sq/ft width 17' x depth 14'

Bedroom 4 Closet:

16 sq/ft width 4' x depth 4'

Bonus Room:

504 sq/ft


182 sq/ft width 14' x depth 13'


435 sq/ft width 29' x depth 15'

Dining Room:

255 sq/ft width 17' x depth 14'

Family Room:

360 sq/ft width 18' x depth 20'


709 sq/ft width 21' x depth 33'

Great Room:

374 sq/ft width 17' x depth 22'


273 sq/ft width 21' x depth 13'

Master Bathroom:

225 sq/ft width 14' x depth 15'

Master Bedroom:

375 sq/ft width 15' x depth 25'

Master Walk-In Closet:

280 sq/ft width 20' x depth 14'


35 sq/ft width 5' x depth 7'

Powder Room 1:

40 sq/ft width 8' x depth 5'

Powder Room 2:

32 sq/ft width 8' x depth 4'


208 sq/ft width 13' x depth 16'

Upper Level Kitchen:

66 sq/ft width 6' x depth 11'

Utility Room:

90 sq/ft width 10' x depth 9'

What's Included In This Plan Set

  • Cover Sheet: The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
  • Foundation: These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
  • First Floor Plan: This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.
  • Second Floor Plan: The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
  • Lighting and Electrical: On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is common place to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
  • Second Floor Lighting: The same details as provided for the first floor.

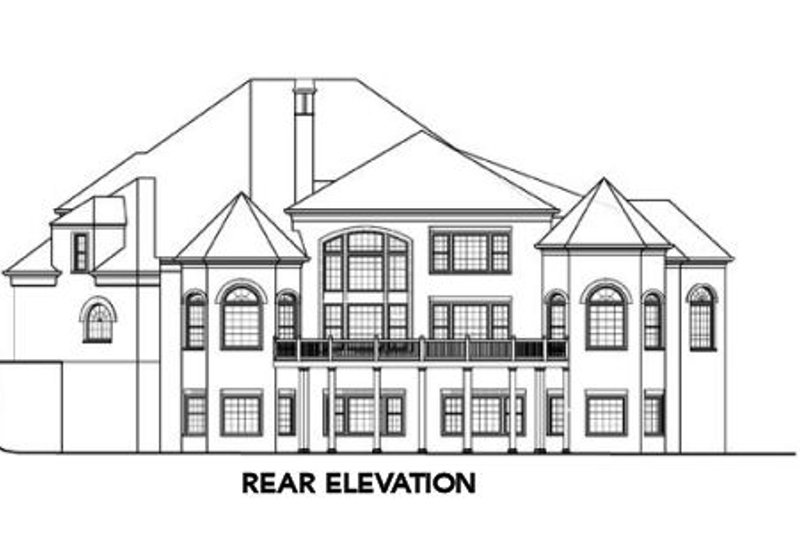

  • Front and Rear Elevations: The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.

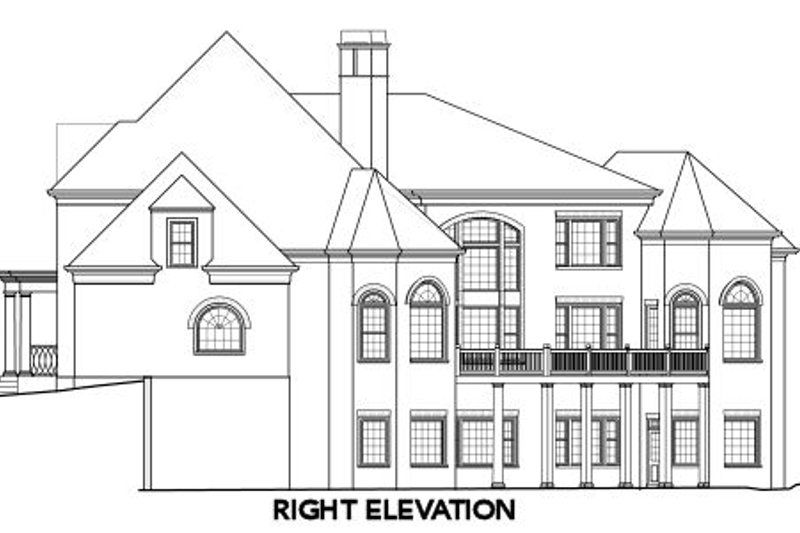

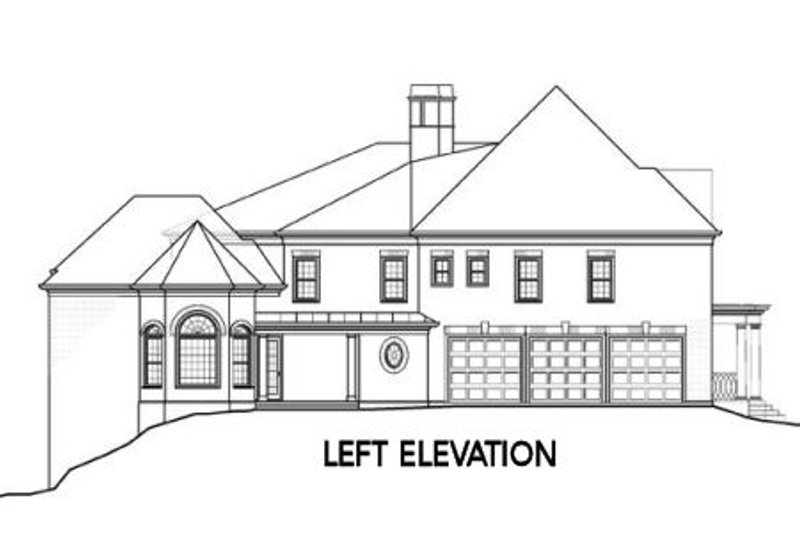

  • Right and Left Elevations: The right and left elevations provide the same details as the front and rear elevations.
  • Roof Plan: This drawing, usually at ¼”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.*Framing is not included.
  • Cross-Sections: Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
  • Cabinet Elevations*: Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes. Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified. Archival Designs believes cabinets should reflect your taste and budget. After framing and sheet rock installation sizes of walls may change slightly. The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: The majority of house plans will include cabinet elevations in construction set; however, not all will include.
  • General Notes: Separate sheets that provide standard construction notes, in addition included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).
» See important information before purchasing.

Plan Set

PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Ideal for level lot, lower level of home partially or fully underground.

Additional Options

Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
