Full Specs & Features
Depth : 61'
Height : 36' 4"
Width : 108'
First Floor: 3115 sq/ft height 10'
Second Floor: 2653 sq/ft height 10'
Main Ceiling : 10'
Upper Ceiling Ft : 10'
Primary Pitch : 10:12
Roof Framing : Combination Truss/Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x4
Main Floor Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Additional Room Features
Family Room Keeping Room
Master Sitting Area
Side Entry Garage
Suited For Corner Lot
Suited For View Lot
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Jack & Jill Bath
189 sq/ft width 12' 9" x depth 14' 10"
234 sq/ft width 18' x depth 13'
326 sq/ft width 16' 5" x depth 19' 11"
156 sq/ft width 15' 8" x depth 10'
342 sq/ft width 19' 8" x depth 17' 5"
367 sq/ft width 15' 4" x depth 24'
694 sq/ft width 21' 5" x depth 32' 5"
195 sq/ft width 13' x depth 15'
268 sq/ft width 13' 8" x depth 19' 8"
331 sq/ft width 19' 8" x depth 16' 10"
143 sq/ft width 13' 8" x depth 10' 6"
350 sq/ft width 16' 8" x depth 21'
Master Sitting Area:
136 sq/ft width 13' x depth 10' 6"
Porch - Screened:
203 sq/ft width 15' 7" x depth 13' 1"
What's Included In This Plan Set
- Cover Sheet: The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
- Foundation: These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.

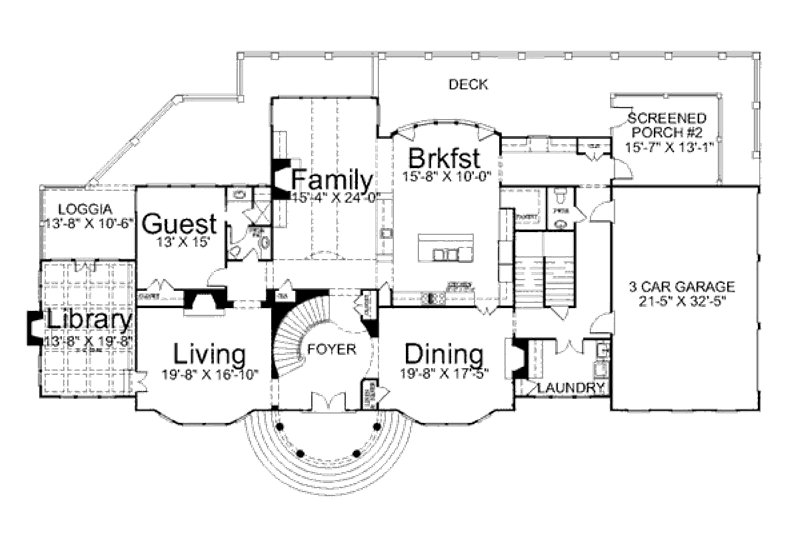

- First Floor Plan: This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.

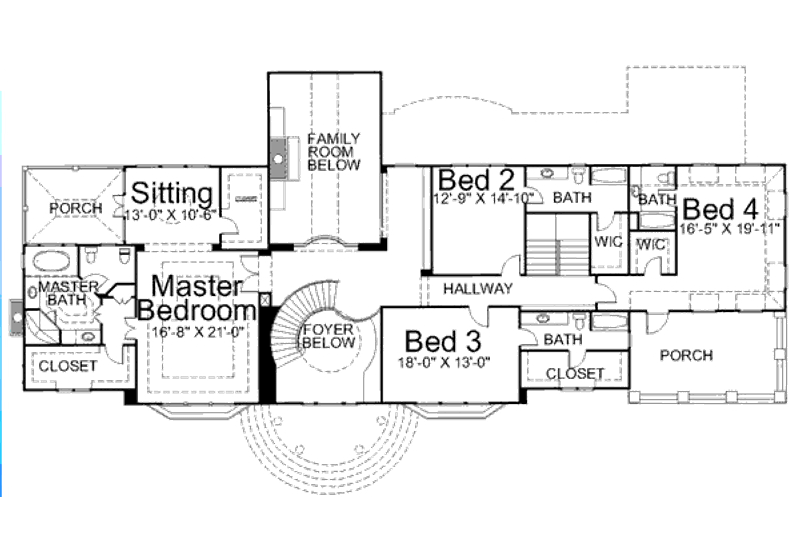

- Second Floor Plan: The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
- Lighting and Electrical: On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is common place to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
- Second Floor Lighting: The same details as provided for the first floor.
- Front and Rear Elevations: The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.
- Right and Left Elevations: The right and left elevations provide the same details as the front and rear elevations.
- Roof Plan: This drawing, usually at ¼”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.*Framing is not included.
- Cross-Sections: Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
- Cabinet Elevations*: Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes. Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified. Archival Designs believes cabinets should reflect your taste and budget. After framing and sheet rock installation sizes of walls may change slightly. The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: The majority of house plans will include cabinet elevations in construction set; however, not all will include.
- General Notes: Separate sheets that provide standard construction notes, in addition included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
