PLAN 70-740
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

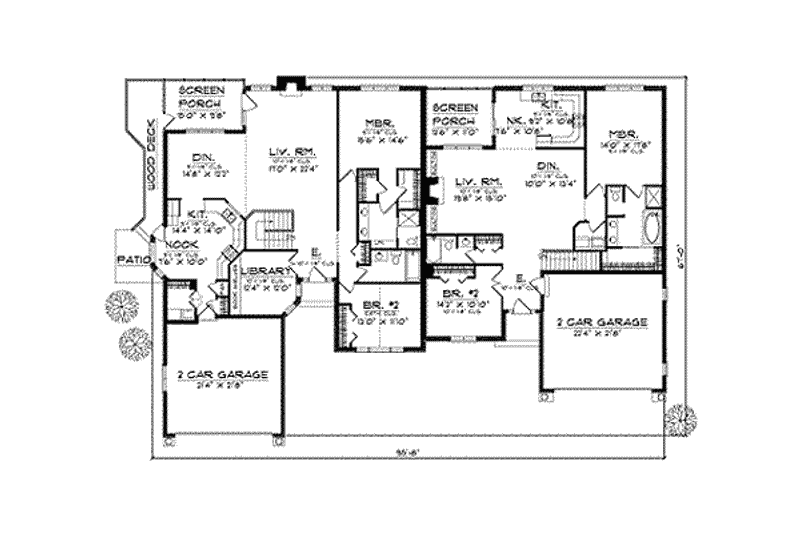

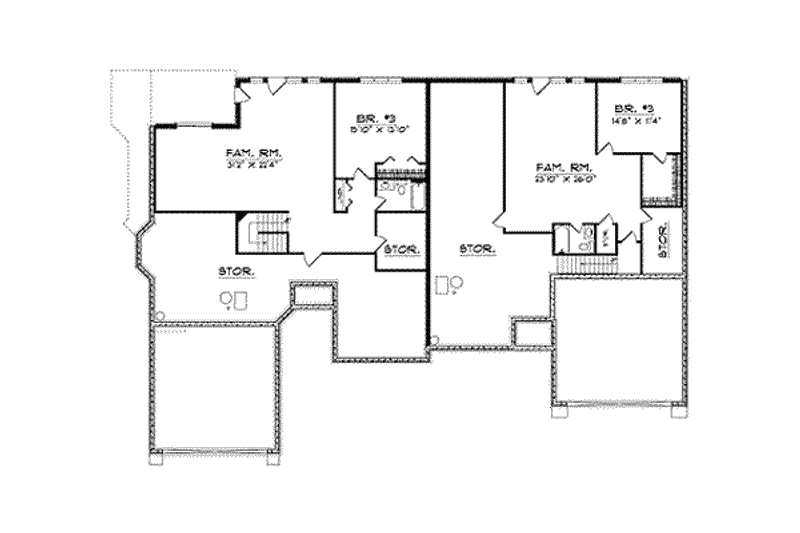

Floor Plans
Full Specs & Features
Dimension
Depth : 67'
Height : 25'
Width : 93' 4"
Area
Basement Living: 1216 sq/ft
Basement Living: 888 sq/ft
First Floor: 2027 sq/ft
First Floor: 1655 sq/ft
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 7:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Stucco
Framing : 2"x6"
Bedroom Features
Split Bedrooms
Kitchen Features
Breakfast Nook
Additional Room Features
Family Room Keeping Room
Storage Area
Sunroom
Outdoor Spaces
Screened Porch
Rooms
Bedroom 2:
153 sq/ft width 13' x depth 11' 10"
Bedroom 2:
153 sq/ft width 14' 2" x depth 10' 10"
Bedroom 3:
219 sq/ft width 15' 10" x depth 13' 10"
Bedroom 3:
166 sq/ft width 14' 8" x depth 11' 4"
Dining Room:
178 sq/ft width 14' 8" x depth 12' 2"
Dining Room:
133 sq/ft width 10' x depth 13' 4"
Family Room:
696 sq/ft width 31' 2" x depth 22' 4"
Family Room:
619 sq/ft width 23' 10" x depth 26'
Garage:
462 sq/ft width 21' 4" x depth 21' 8"
Garage:
483 sq/ft width 22' 4" x depth 21' 8"
Kitchen:
212 sq/ft width 14' 4" x depth 14' 10"
Kitchen:
97 sq/ft width 9' 2" x depth 10' 8"
Library:
147 sq/ft width 12' 4" x depth 12'
Living Room:
379 sq/ft width 17' x depth 22' 4"
Living Room:
311 sq/ft width 19' 8" x depth 15' 10"
Master Bedroom:
224 sq/ft width 15' 6" x depth 14' 6"
Master Bedroom:
247 sq/ft width 14' x depth 17' 8"
Nook:
75 sq/ft width 7' 6" x depth 10'
Nook:
80 sq/ft width 7' 6" x depth 10' 8"
Porch - Screened:
145 sq/ft width 15' x depth 9' 8"
Porch - Screened:
137 sq/ft width 12' 6" x depth 11'
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale

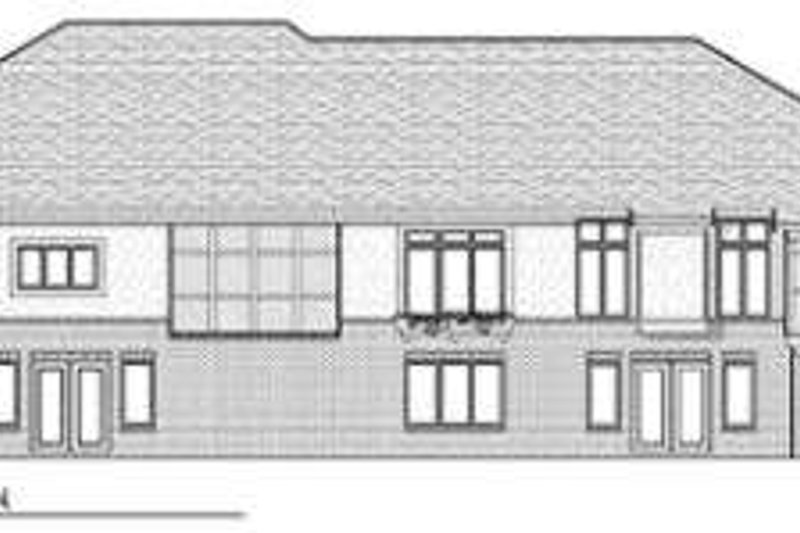

- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
Plan Set
$3761.00
$3993.00
$5497.00
$5497.00
$10705.00
Foundation
$0.00
$650.00
$650.00
Additional Options
$395.00
$80.00
$100.00
$495.00
$39.00
$75.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
