PLAN 51-1073
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

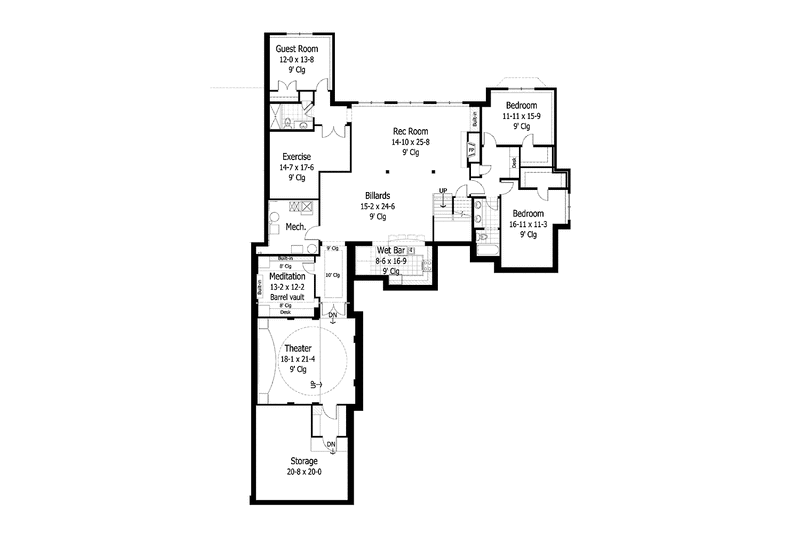

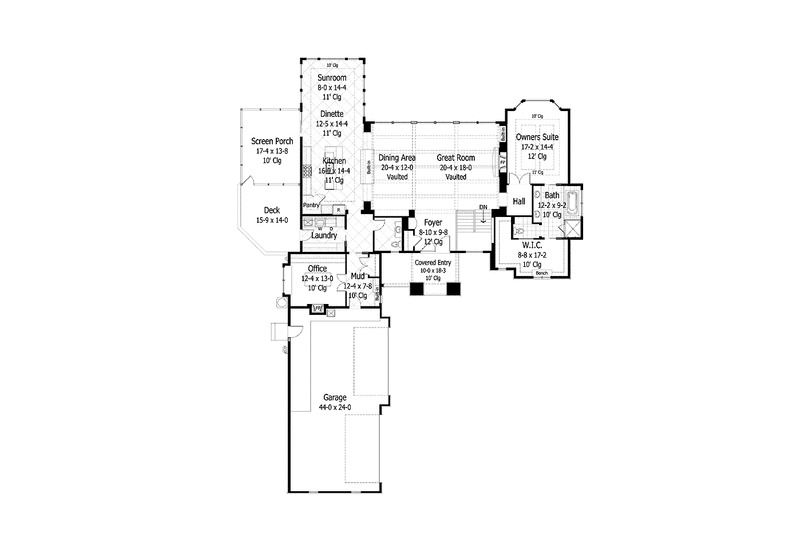

Floor Plans
Full Specs & Features
Dimension
Depth : 102'
Height : 30'
Width : 70' 10"
Area
Basement Living: 3132 sq/ft height 8'
First Floor: 2700 sq/ft height 9'
Garage: 1003 sq/ft
Roof
Primary Pitch : 12:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x6
Bedroom Features
Formal Dining Room
Guest Suite
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Exercise Room
Great Room Living Room
Hobby Rec Room Game Room
Sunroom
Outdoor Spaces
Covered Front Porch
Deck
Screened Porch
Rooms
Bedroom 2:
187 sq/ft width 11' 11" x depth 15' 9"
Bedroom 3:
190 sq/ft width 16' 11" x depth 11' 3"

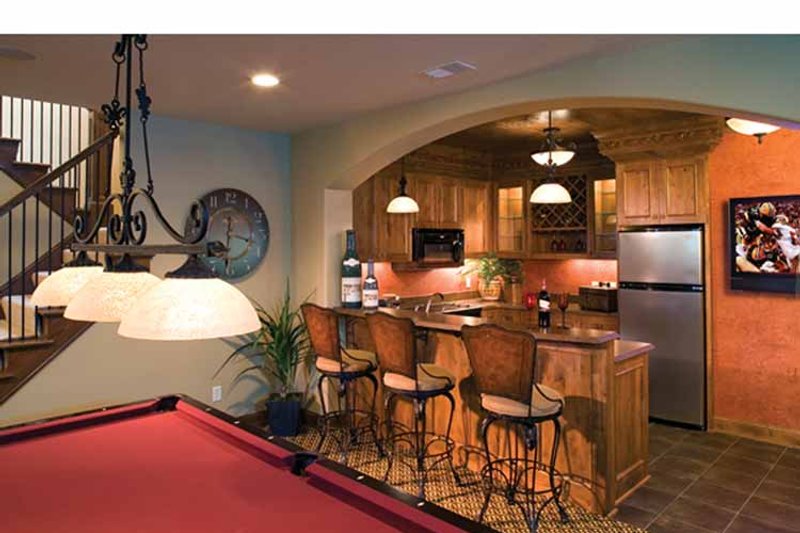

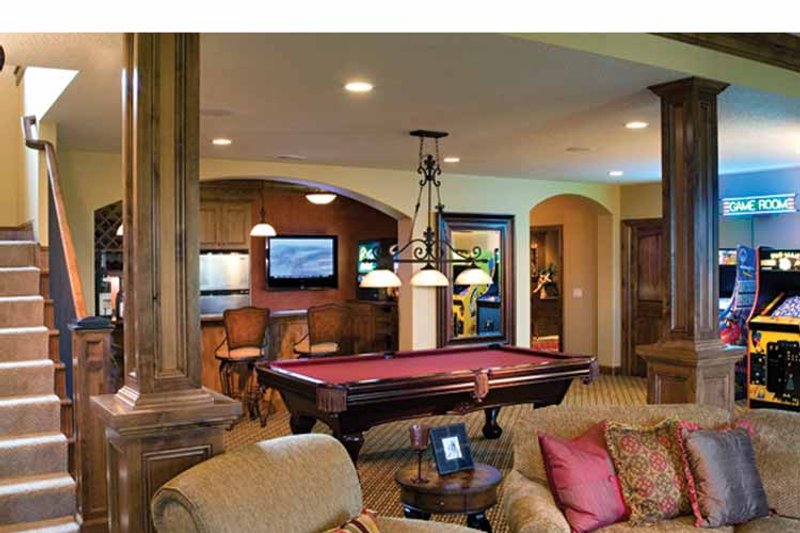

Billiards Room:
371 sq/ft width 15' 2" x depth 24' 6"
Deck:
220 sq/ft width 15' 9" x depth 14'
Dinette:
177 sq/ft width 12' 5" x depth 14' 4"
Dining Room:
243 sq/ft width 20' 4" x depth 12'
Exercise Room:
255 sq/ft width 14' 7" x depth 17' 6"
Foyer:
85 sq/ft width 8' 10" x depth 9' 8"
Garage:
1056 sq/ft width 44' x depth 24'

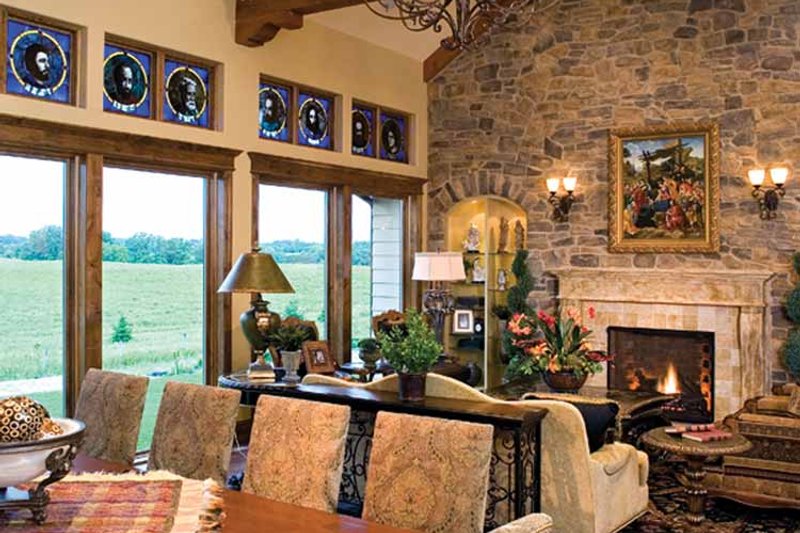

Great Room:
365 sq/ft width 20' 4" x depth 18'
Guest Bedroom:
164 sq/ft width 12' x depth 13' 8"

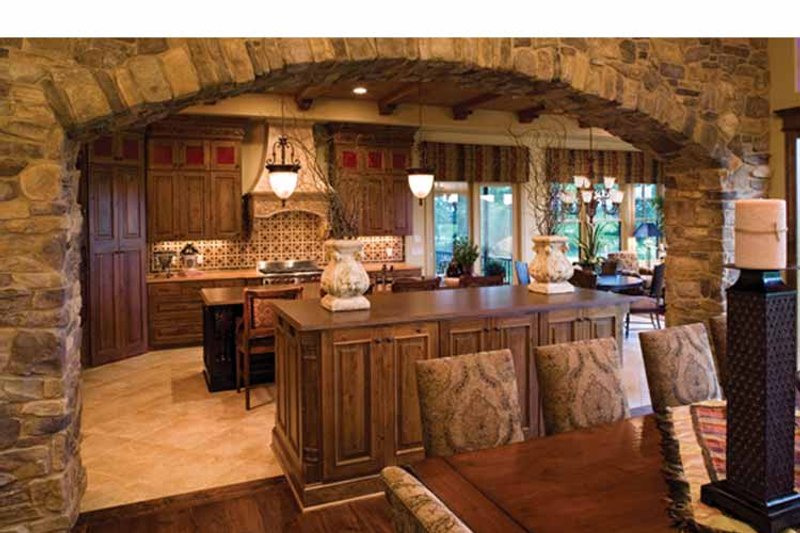

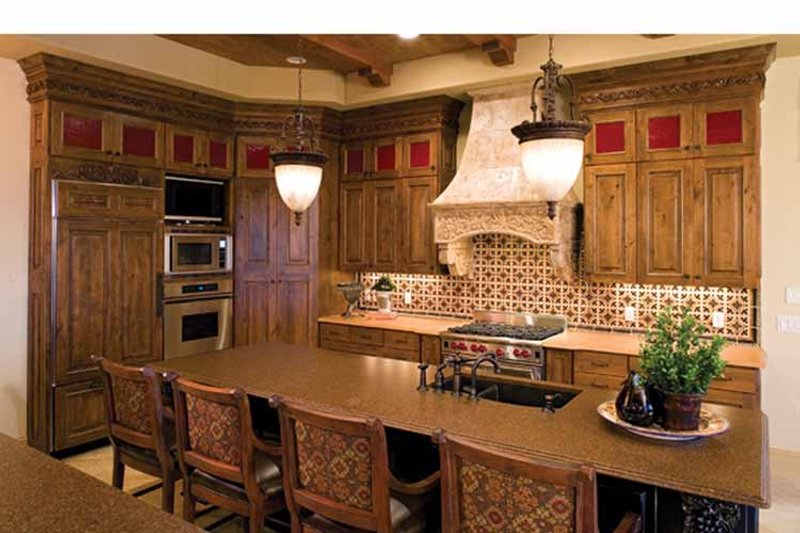

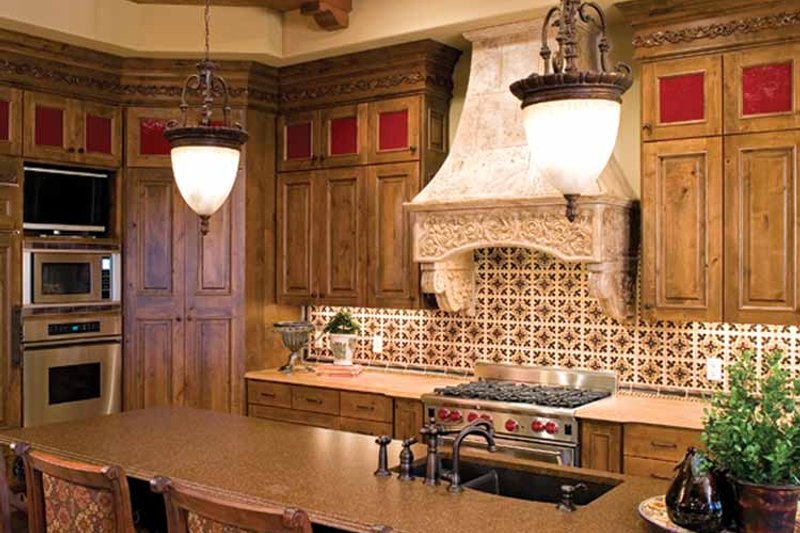

Kitchen:
240 sq/ft width 16' 9" x depth 14' 4"
Master Bathroom:
111 sq/ft width 12' 2" x depth 9' 2"
Master Suite:
246 sq/ft width 17' 2" x depth 14' 4"
Master Walk-In Closet:
148 sq/ft width 8' 8" x depth 17' 2"
Mud Room:
94 sq/ft width 12' 4" x depth 7' 8"
Office:
160 sq/ft width 12' 4" x depth 13'

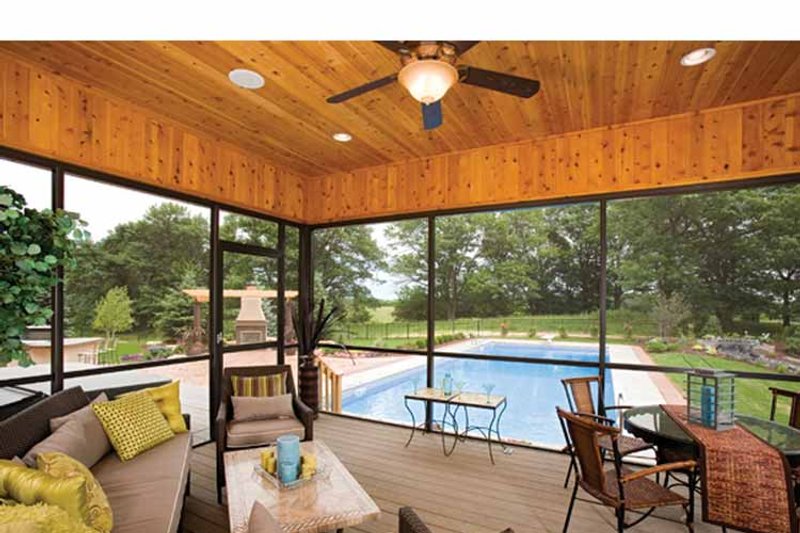

Porch - Screened:
236 sq/ft width 17' 4" x depth 13' 8"
Recreation Room:
380 sq/ft width 14' 10" x depth 25' 8"

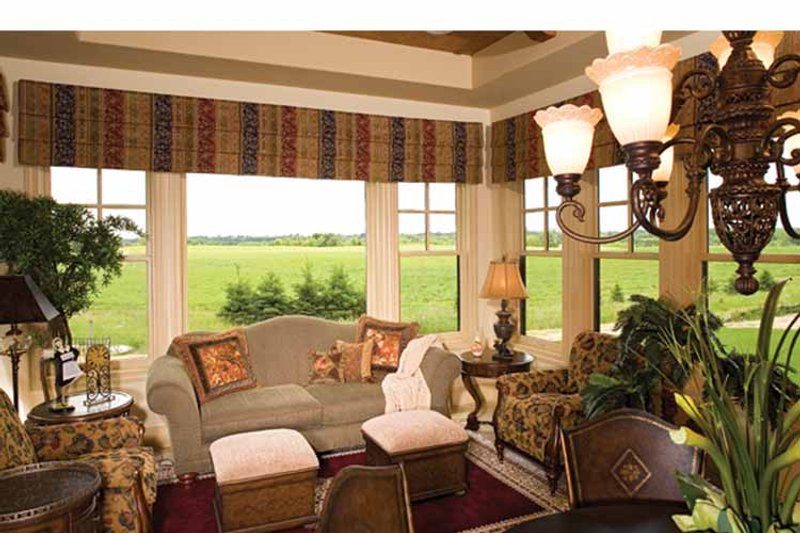

Sun Room:
114 sq/ft width 8' x depth 14' 4"

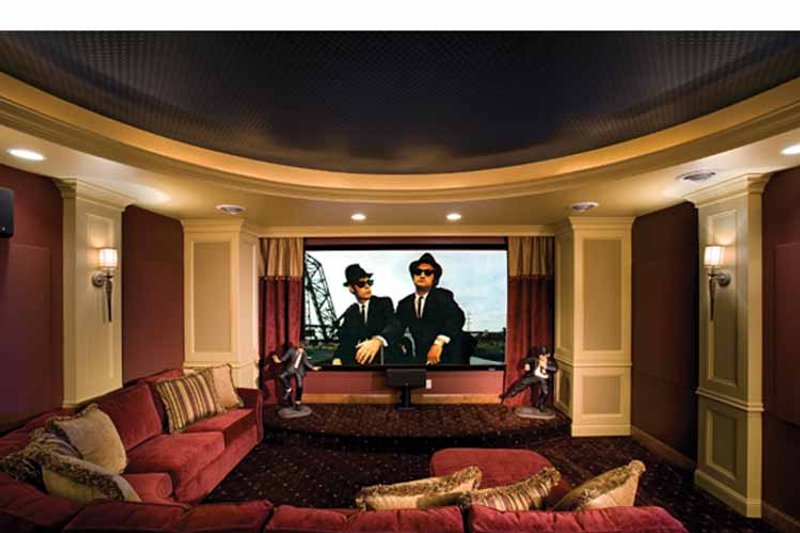

Theatre Room:
385 sq/ft width 18' 1" x depth 21' 4"
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
- Note: These plans will not contain an electrical layout.
Plan Set
$1720.00
$1960.00
$2000.00
$2600.00
Foundation
$0.00
Framing
$0.00
$250.00
Additional Options
$200.00
$60.00
$100.00
$39.00
$200.00
$50.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
