PLAN 54-284

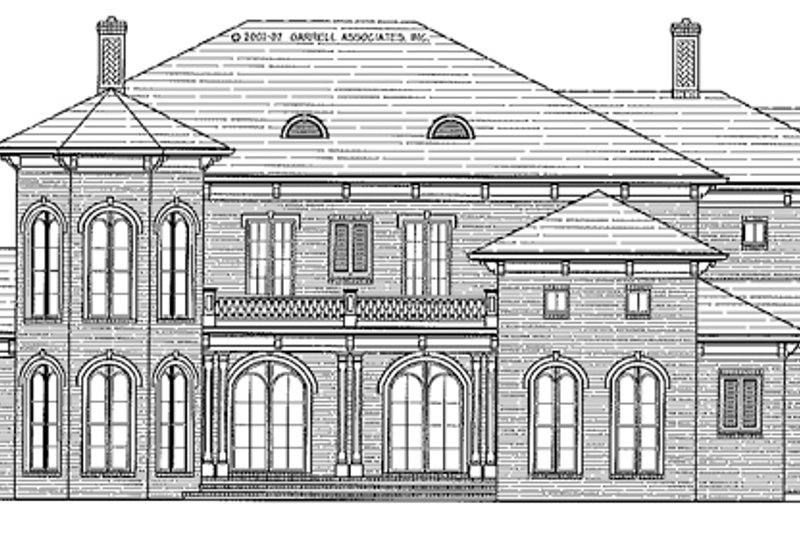

Home Plan - Mediterranean Exterior - Front Elevation Plan #54-284
Home Plan - Mediterranean Exterior - Front Elevation Plan #54-284

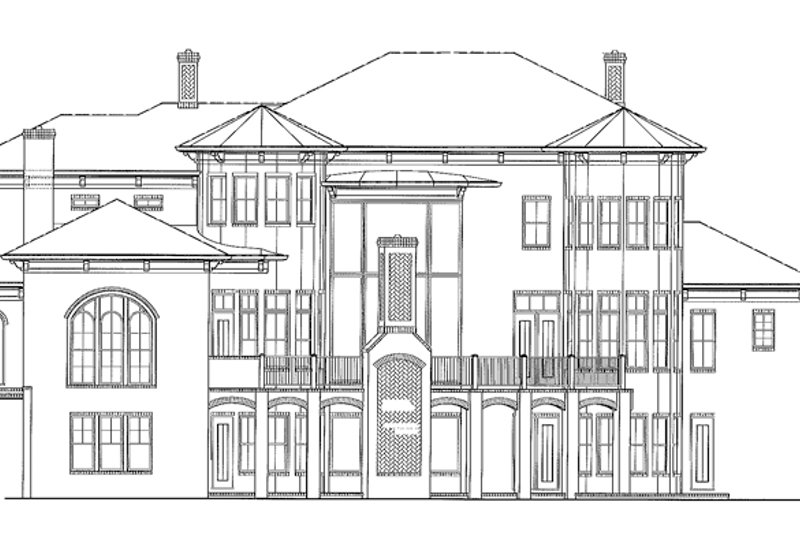

Home Plan - Mediterranean Exterior - Rear Elevation Plan #54-284

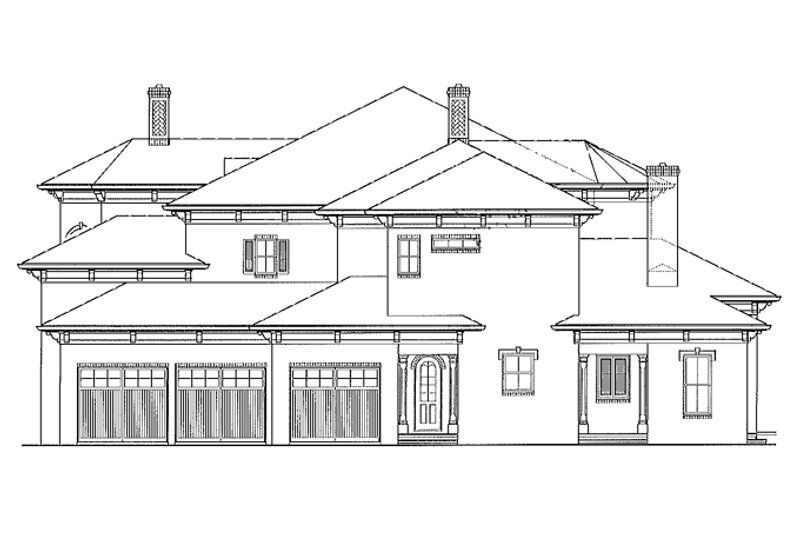

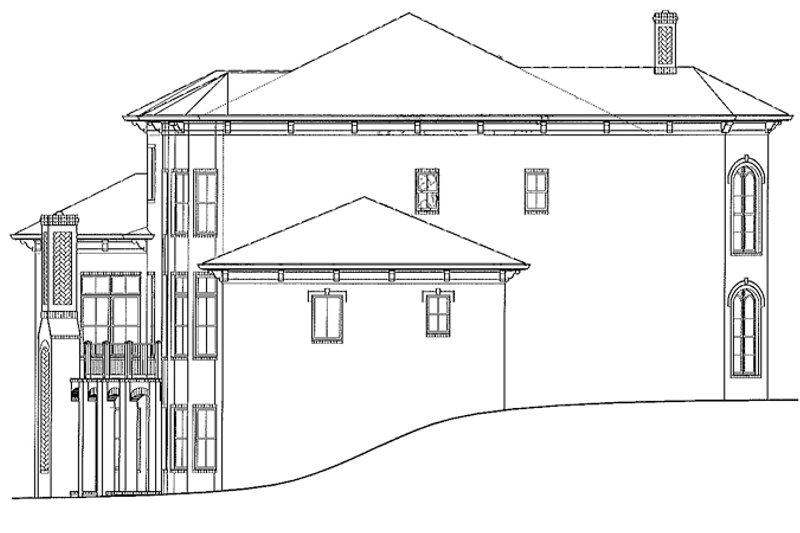

Home Plan - Mediterranean Exterior - Other Elevation Plan #54-284

Key Specs


Plan Sq Ft

5834
sq ft

Plan Bedrooms

5
Beds

Plan Bathrooms

5
Baths

Plan Floors

2
Floors

Plan Garages

3
Garages

Select Plan Set Options

What's included?
Audio Video Design
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design
$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Subtotal
$2995.00
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Get Personalized Help
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 54-284

Key Specs


Plan Sq Ft

5834
sq ft

Plan Bedrooms

5
Beds

Plan Bathrooms

5
Baths

Plan Floors

2
Floors

Plan Garages

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description


Gracious living and entertaining reach their height in this truly amazing Italianate design. Public areas include the grand two-story salon, warmed by a cozy fireplace and easily accessing the dining room, keeping room and kitchen, which with a large island offers abundant counter space. The first-floor master suite includes a bow-windowed sitting area, a lavish bath with His and Hers shower and toilet areas, and a palatial walk-in closet. Four family bedrooms upstairs each enjoy their own bathroom. Two of these also feature private sitting areas, including a turreted reading room in the princess suite.

Full Specs & Features


Dimension
Depth : 74' 6"
Height : 36' 2"
Width : 89' 11"
Area
Basement Unfinished: 2955 sq/ft
Bonus: 257 sq/ft
First Floor: 3487 sq/ft
Garage: 780 sq/ft
Second Floor: 2347 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 0:0
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Main Floor Master Bedroom
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Den Office Study Computer
Master Sitting Area
Outdoor Spaces
Courtyard
Covered Front Porch
Rooms

Bedroom 2:

335 sq/ft width 16' 11" x depth 19' 10"

Bedroom 3:

429 sq/ft width 18' 2" x depth 23' 8"

Bedroom 4:

193 sq/ft width 12' 7" x depth 15' 5"

Bedroom 5:

223 sq/ft width 13' 5" x depth 16' 8"

Dining Room:

209 sq/ft width 12' 7" x depth 16' 8"

Garage:

528 sq/ft width 24' 8" x depth 21' 5"

Garage Two:

237 sq/ft width 11' 9" x depth 20' 3"

Keeping Room:

289 sq/ft width 18' 1" x depth 16'

Kitchen:

336 sq/ft width 18' 6" x depth 18' 2"

Library:

176 sq/ft width 13' 5" x depth 13' 2"

Master Suite:

496 sq/ft width 19' 4" x depth 25' 8"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

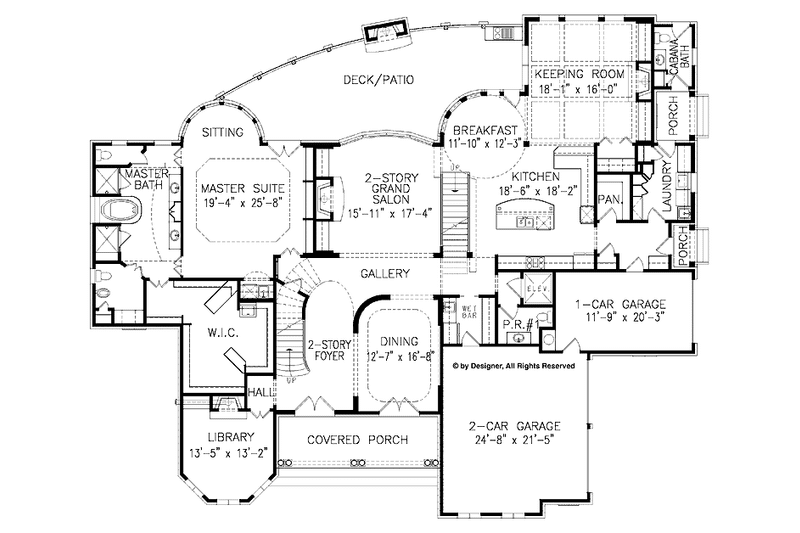

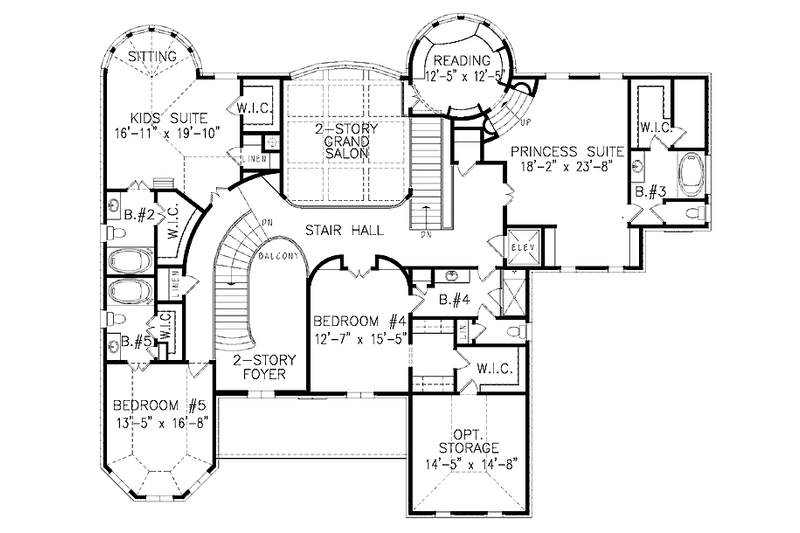

  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-888-447-1946
Plan Set
PDF Set :
$2995.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$4245.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
CAD and PDF Set :
$4340.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x4:
$0.00
Wood 2x4

Additional Options

Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
