PLAN 1123-8
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
This is an Accessory Dwelling Unit (ADU). ADUs are small living spaces built on an existing property. The ADU Plan is ideal for a guest suite or a private place for multi-generational living. The plan offers a complete living experience with ample sized spaces that include a living room, dining room, kitchen with pantry, and bedroom suite. Uniquely, the plan includes spacious closets and a guest powder room.

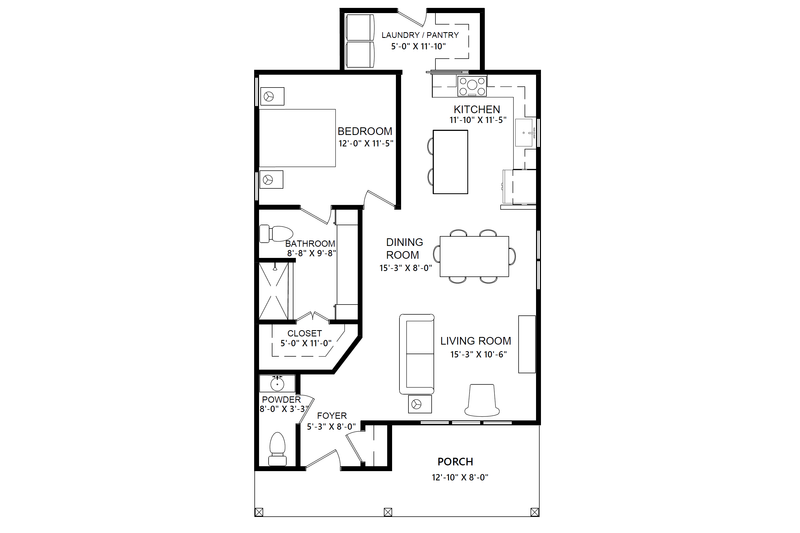

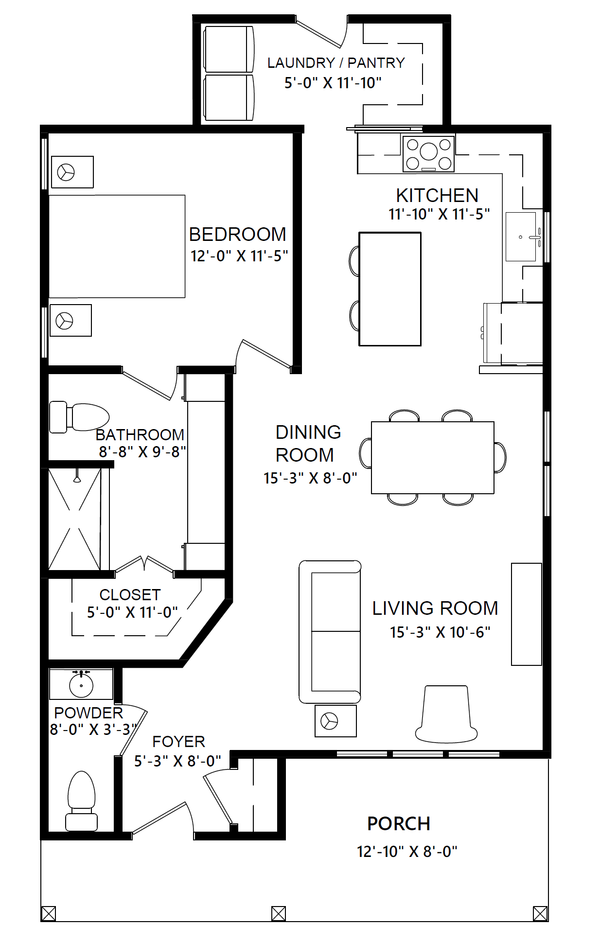

Floor Plans
Full Specs & Features
Dimension
Depth: 25'
Height: 23' 6"
Width: 40' 6"
Area
Garage: 0 sq/ft
Main Floor: 838 sq/ft
Patios: 0 sq/ft
Porch: 152 sq/ft
Upper Floor: 0 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Bonus Ceiling: 0"
Garage Ceiling: 0"
Main Ceiling: 10'
Upper Ceiling Ft: 0"
Roof
Primary Pitch: 12:12
Roof Framing: Stick Framing
Roof Type: 2x8s main and 2x6s porch
Secondary Pitch: 6:12
Exterior Wall Framing
Exterior Wall Finish: Siding
Framing: 2x4
Insulation: Fiberglas or spray foam
What's Included In This Plan Set
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
