Key Specs
5937
sq ft
3
Beds
3
Baths
1
Floors
4
Garages
Phone: 1-888-447-1946
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 46-102
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

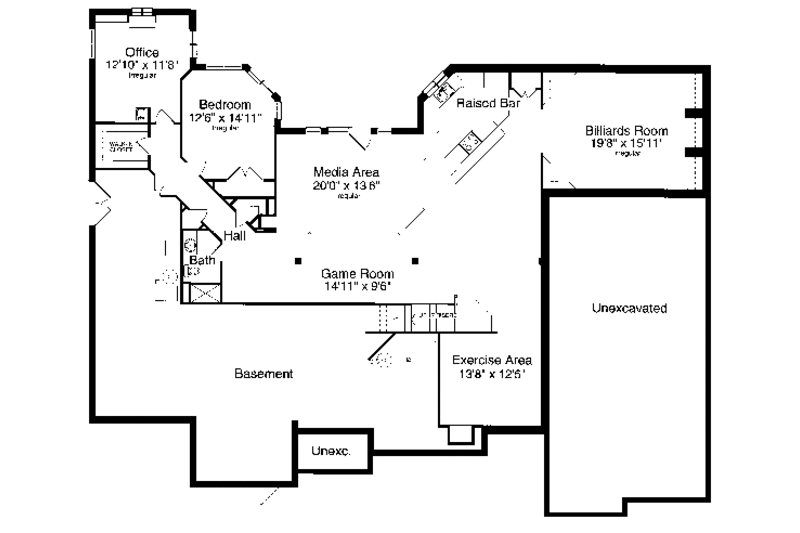

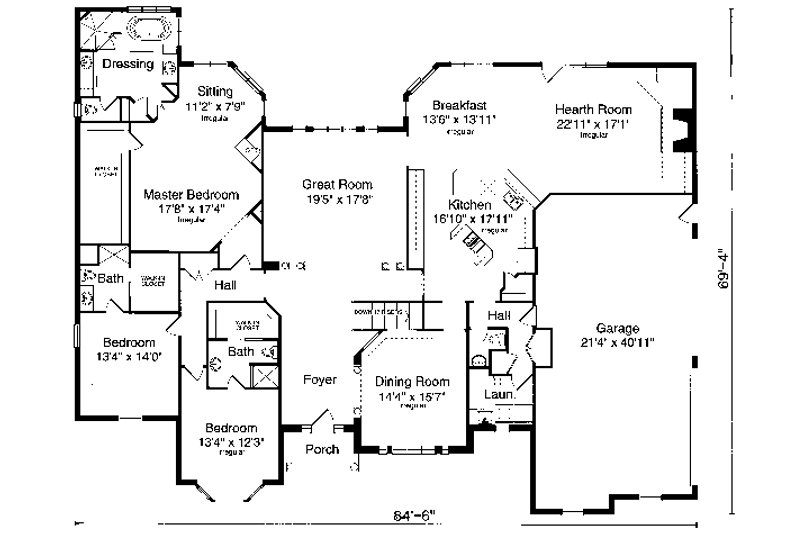

Floor Plans
Full Specs & Features
Dimension
Depth : 69' 4"
Height : 30'
Width : 84' 6"
Area
Basement Living: 2367 sq/ft
First Floor: 3570 sq/ft
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : 2"x4"
Bedroom Features
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Master Sitting Area
Storage Area
Unfinished Future Space
Garage Features
Oversized Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For Sloping Lot
Suited For View Lot
Rooms
Bedroom 2:
186 sq/ft width 13' 4" x depth 14'
Bedroom 3:
173 sq/ft width 13' 4" x depth 13'
Bedroom 4:
186 sq/ft width 12' 6" x depth 14' 11"
Breakfast Room:
187 sq/ft width 13' 6" x depth 13' 11"
Den/Office or Bedroom 1:
169 sq/ft width 13' 8" x depth 12' 5"
Dining Room:
223 sq/ft width 14' 4" x depth 15' 7"
Game Room:
270 sq/ft width 20' x depth 13' 6"
Garage:
853 sq/ft width 21' 4" x depth 40'
Gathering Room:
343 sq/ft width 19' 5" x depth 17' 8"
Kitchen:
301 sq/ft width 16' 10" x depth 17' 11"

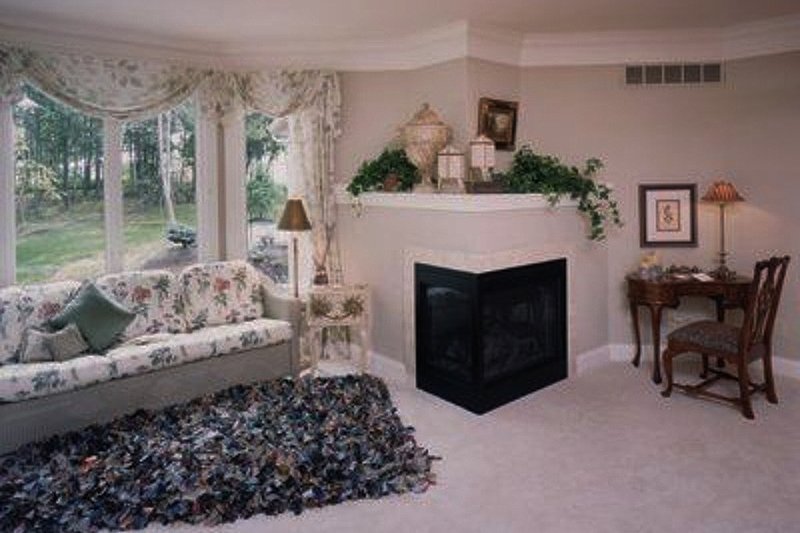

Master Bedroom:
306 sq/ft width 17' 8" x depth 17' 4"
Parlor:
313 sq/ft width 19' 8" x depth 15' 11"
Study:
149 sq/ft width 12' 10" x depth 11' 8"
What's Included In This Plan Set
- Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
- Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
- Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
- Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
- Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
- Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
- Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
- Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
- Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
- Fireplace detail shows how the fireplace is to be built.
- Wall section shows typical framing detail of house.
Plan Set
$1300.00
$1325.00
$1380.00
$1915.00
$1000.00
Foundation
$0.00
Framing
$0.00
Additional Options
$50.00
$250.00
$100.00
$39.00
$200.00
$35.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
