Key Specs
6024
sq ft
6
Beds
6.5
Baths
2
Floors
2
Garages
Phone: 1-888-447-1946
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 120-211
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 109'
Height : 35'
Width : 112'
Area

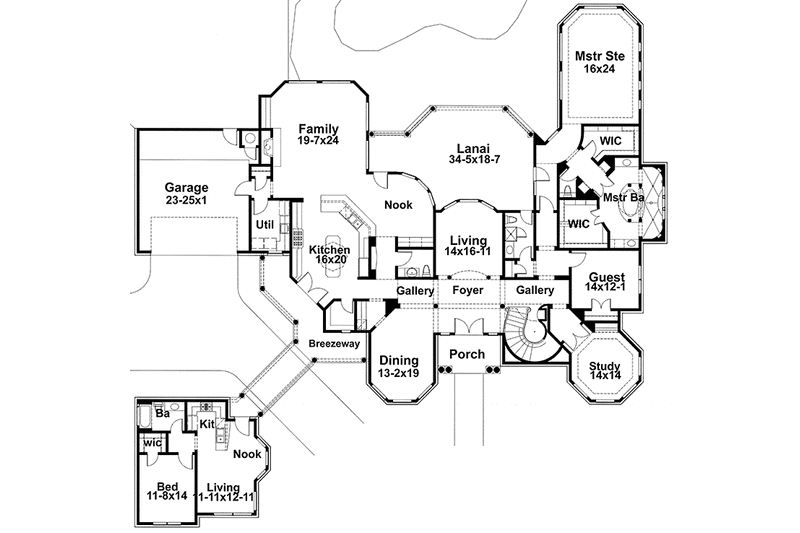

First Floor: 4582 sq/ft height 12'

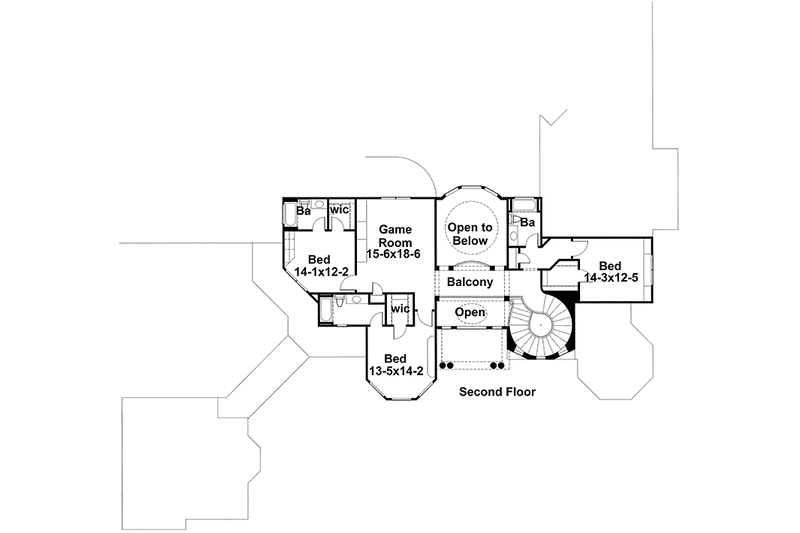

Second Floor: 1442 sq/ft height 10'
Roof
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Stone/Stucco
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Guest Suite
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Master Sitting Area
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 2:
190 sq/ft width 13' 5" x depth 14' 2"
Bedroom 3:
171 sq/ft width 14' 1" x depth 12' 2"
Bedroom 4:
177 sq/ft width 14' 4" x depth 12' 5"
Bedroom 6:
161 sq/ft width 11' 6" x depth 14' 1"
Breakfast Nook:
162 sq/ft width 12' x depth 13' 6"
Dining Room:
250 sq/ft width 13' 2" x depth 19'
Entry:
143 sq/ft width 13' x depth 11'
Family Room:
469 sq/ft width 19' 7" x depth 24'
Game Room:
286 sq/ft width 15' 6" x depth 18' 6"
Guest Bedroom:
169 sq/ft width 14' x depth 12' 1"
Kitchen:
80 sq/ft width 8' x depth 10'
Kitchen:
320 sq/ft width 16' x depth 20'
Living Room:
153 sq/ft width 11' 11" x depth 12' 11"
Living Room:
236 sq/ft width 14' x depth 16' 11"
Master Bedroom:
384 sq/ft width 16' x depth 24'
Study:
196 sq/ft width 14' x depth 14'
What's Included In This Plan Set
- Designer offers a 2nd Build License for $395 with a PDF purchase as well as an Unlimited License for $395 with the purchase of a CAD.
- Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
- Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
- Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
- Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances.
- Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
- Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
- Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.
Plan Set
$1595.00
$1595.00
$1745.00
$1845.00
$2395.00
Foundation
$0.00
$0.00
$395.00
$395.00
Framing
$0.00
$245.00
Additional Options
$195.00
$50.00
$395.00
$165.00
$395.00
$39.00
$395.00
$195.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
