PLAN 17-3316
Key Specs
6089
sq ft
6
Beds
4.5
Baths
2
Floors
3
Garages
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-888-447-1946
Questions?
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Phone: 1-888-447-1946
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 17-3316
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Full Specs & Features
Dimension
Depth : 79' 2"
Height : 31'
Width : 69' 10"
Height : 31'
Width : 69' 10"
Area

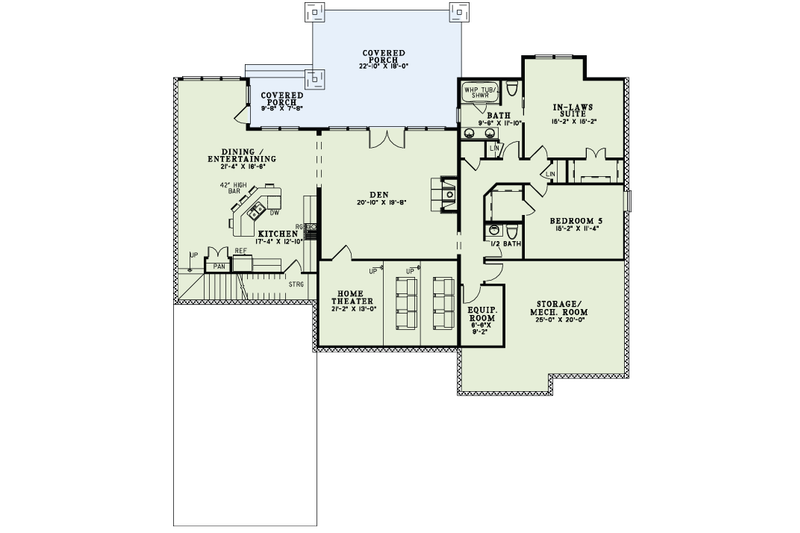

Basement Living: 2922 sq/ft height 9'
Bonus: 360 sq/ft height 8'

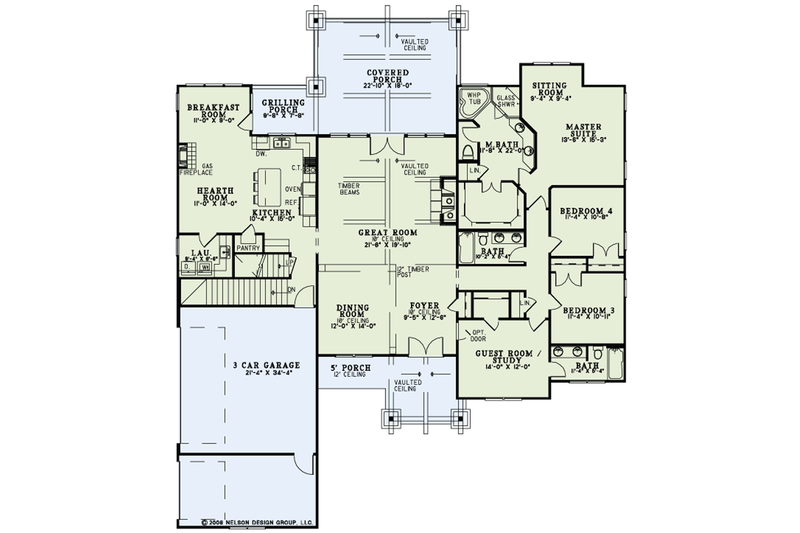

First Floor: 2712 sq/ft height 9'
Garage: 752 sq/ft height 9'
Porch: 1133 sq/ft
Second Floor: 455 sq/ft height 8'
Bonus: 360 sq/ft height 8'
First Floor: 2712 sq/ft height 9'
Garage: 752 sq/ft height 9'
Porch: 1133 sq/ft
Second Floor: 455 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x4
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Guest Suite
Main Floor Master Bedroom
Guest Suite
Main Floor Master Bedroom
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Master Sitting Area
Media Room
Unfinished Future Space
Great Room Living Room
Master Sitting Area
Media Room
Unfinished Future Space
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Covered Rear Porch
Rooms
Bedroom 3:
123 sq/ft width 11' 4" x depth 10' 11"
Bedroom 4:
120 sq/ft width 11' 4" x depth 10' 8"

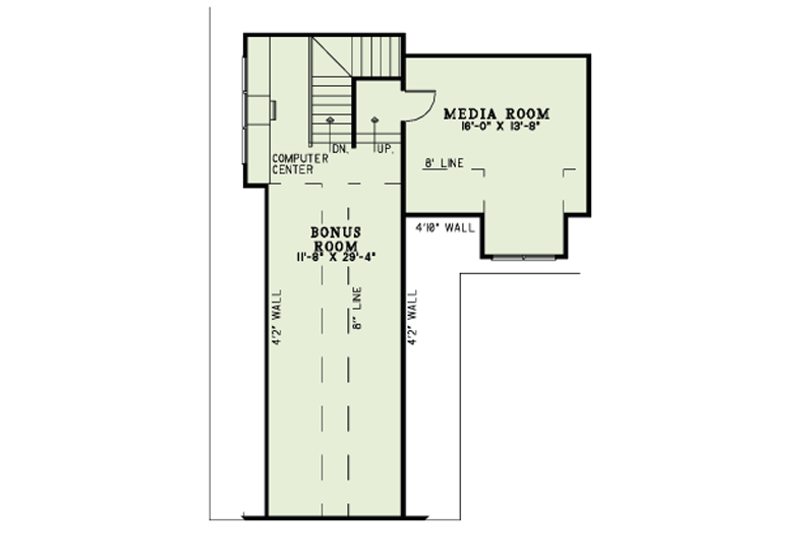

Bonus Room - Unfinished:
342 sq/ft width 11' 8" x depth 29' 4"
Breakfast Room:
99 sq/ft width 11' x depth 9'
Covered Porch:
410 sq/ft width 22' 10" x depth 18'
Dining Room:
168 sq/ft width 12' x depth 14'
Foyer:
117 sq/ft width 9' 5" x depth 12' 6"
Garage:
732 sq/ft width 21' 4" x depth 34' 4"
Great Room:
426 sq/ft width 21' 6" x depth 19' 10"
Grilling Porch:
410 sq/ft width 22' 10" x depth 18'
Guest Bedroom:
168 sq/ft width 14' x depth 12'
Hearth Room:
154 sq/ft width 11' x depth 14'
Kitchen:
154 sq/ft width 10' 4" x depth 15'
Master Sitting Room:
87 sq/ft width 9' 4" x depth 9' 4"
Master Suite:
205 sq/ft width 13' 6" x depth 15' 3"
Media Room:
218 sq/ft width 16' x depth 13' 8"
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
- Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
Questions? Call 1-888-447-1946
Plan Set
| PDF Set : $2450.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 5 Copy Set : $2550.00 |
5 printed plan sets mailed to you. |
| 5 Copy and PDF Set : $2800.00 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Set : $4900.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Daylight Basement: $299.00 |
Ideal for sloping lot, lower level of home partially underground. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
| Wood 2x6: $299.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse : $199.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $75.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
