PLAN 17-3347

Key Specs

7784
sq ft

5
Beds

4
Baths

2
Floors

4
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Floor Plans

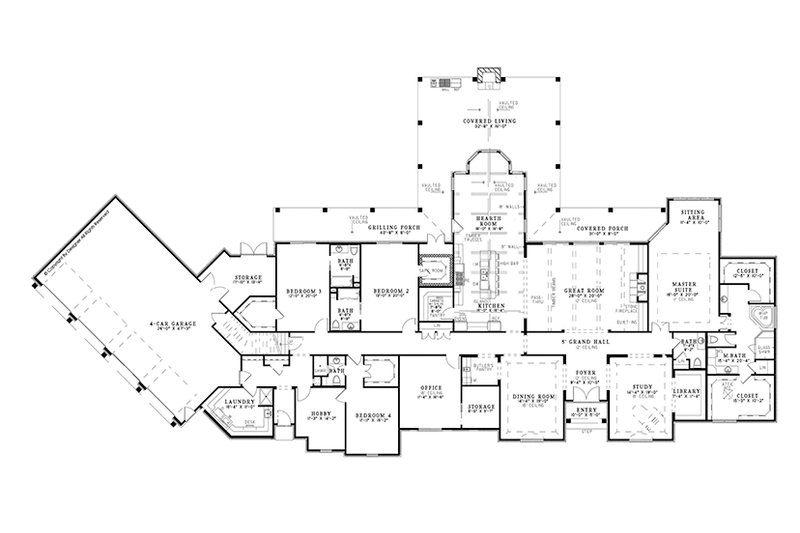

Floor Plan - Main Floor Plan

Reverse

European Floor Plan - Main Floor Plan Plan #17-3347

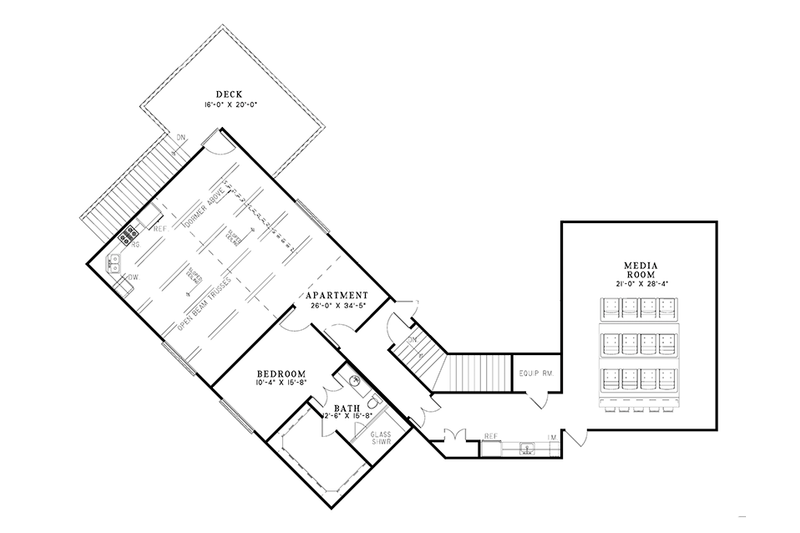

Floor Plan - Upper Floor Plan

Reverse

European Floor Plan - Upper Floor Plan Plan #17-3347

Full Specs & Features

Dimension

Depth : 86' 10"
Height : 36' 8"
Width : 170' 4"

Area

First Floor: 5714 sq/ft height 10'
Garage: 1429 sq/ft height 10'
Porch: 1450 sq/ft
Second Floor: 2070 sq/ft height 9'

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Stone
Framing : Wood - 2x4

Bedroom Features

Formal Dining Room
Guest Suite
Main Floor Master Bedroom

Kitchen Features

Kitchen Island
Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Media Room

Outdoor Spaces

Covered Rear Porch

Rooms

Bathroom 2:

64 sq/ft width 6' 8" x depth 9' 8"

Bathroom 3:

64 sq/ft width 6' 8" x depth 9' 8"

Bathroom 5:

195 sq/ft width 12' 6" x depth 15' 8"

Bedroom 2:

260 sq/ft width 13' x depth 20'

Bedroom 3:

240 sq/ft width 12' x depth 20'

Bedroom 4:

180 sq/ft width 11' 11" x depth 15' 2"

Bedroom 5:

161 sq/ft width 10' 4" x depth 15' 8"

Dining Room:

272 sq/ft width 14' 4" x depth 19'

Entry:

50 sq/ft width 10' x depth 5'

Foyer:

97 sq/ft width 9' 4" x depth 10' 5"

Garage:

1228 sq/ft width 26' x depth 47' 3"

Garage Storage:

240 sq/ft width 17' 10" x depth 13' 6"

Great Room:

560 sq/ft width 28' x depth 20'

Grilling Porch:

325 sq/ft width 40' 8" x depth 8'

Hearth Room:

314 sq/ft width 16' x depth 19' 8"

Kitchen:

261 sq/ft width 16' x depth 16' 4"

Laundry Room:

179 sq/ft width 16' 4" x depth 11'

Library:

83 sq/ft width 7' 4" x depth 11' 4"

Master Bathroom:

311 sq/ft width 15' 4" x depth 20' 4"

Master Closet:

155 sq/ft width 15' 3" x depth 10' 2"

Master Closet Two:

124 sq/ft width 12' 5" x depth 10'

Master Sitting Area:

113 sq/ft width 11' 4" x depth 10'

Master Suite:

320 sq/ft width 16' x depth 20'

Media Room:

594 sq/ft width 21' x depth 28' 4"

Office:

186 sq/ft width 11' 4" x depth 16' 6"

Pantry:

61 sq/ft width 7' 8" x depth 8'

Storage:

81 sq/ft width 8' 6" x depth 9' 7"

Study:

272 sq/ft width 14' 4" x depth 19'

What's Included In This Plan Set

See a sample plan set

Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.

» See important information before purchasing.

Questions? Call 1-888-447-1946

Plan Set

PDF Set : $2850.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set : $2950.00	5 printed plan sets mailed to you.
5 Copy and PDF Set : $3200.00	5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set : $5700.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace: $0.00	Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab: $0.00	Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4: $0.00	Wood 2x4
Wood 2x6: $299.00	Wood 2x6

Additional Options

Right-Reading Reverse : $199.00	Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets : $75.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $100.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $39.00	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $200.00	Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
