Full Specs & Features
Depth : 34'
Height : 29'
Width : 22' 2"

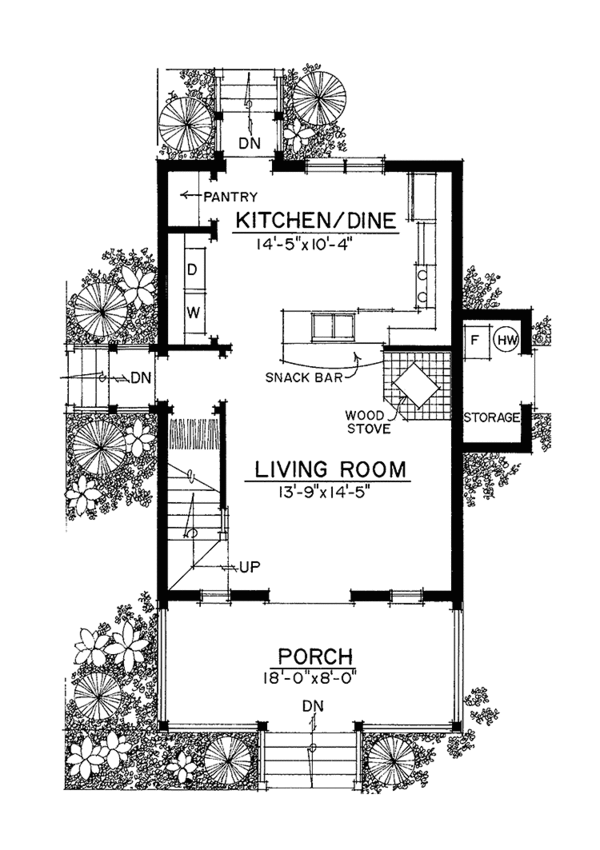

First Floor: 472 sq/ft height 9'

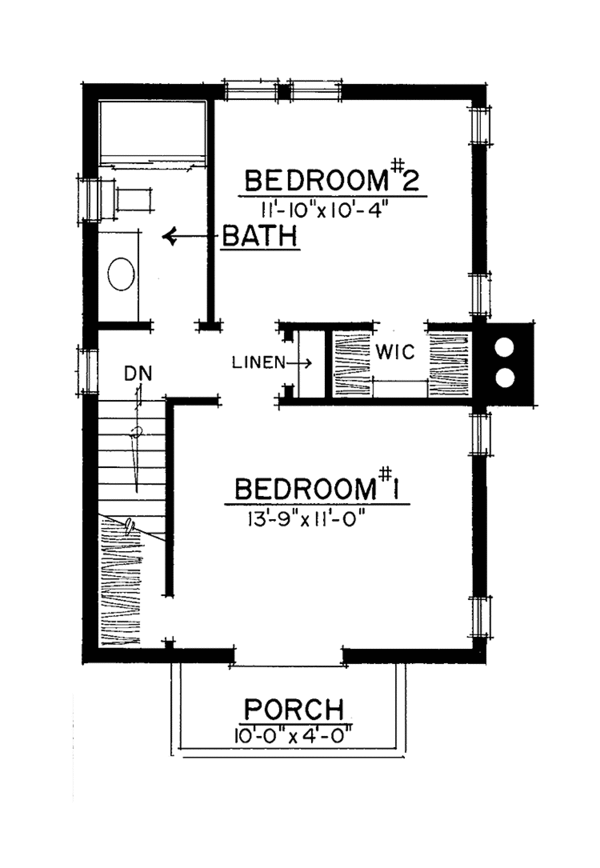

Second Floor: 472 sq/ft
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Formal Living Room / Parlor
Kitchenette Wet Bar
Covered Front Porch
151 sq/ft width 13' 9" x depth 11'
122 sq/ft width 11' 10" x depth 10' 4"
148 sq/ft width 14' 5" x depth 10' 4"
198 sq/ft width 13' 9" x depth 14' 5"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
