This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Modify This Plan
Full Specs & Features
Depth : 44'
Height : 17'
Width : 36'

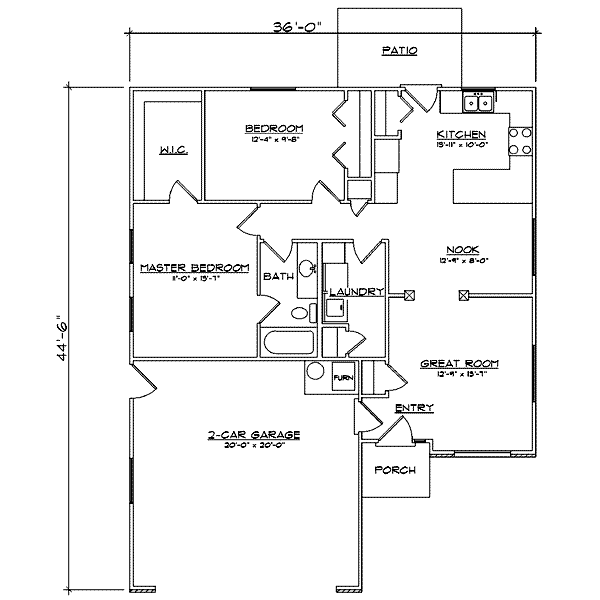

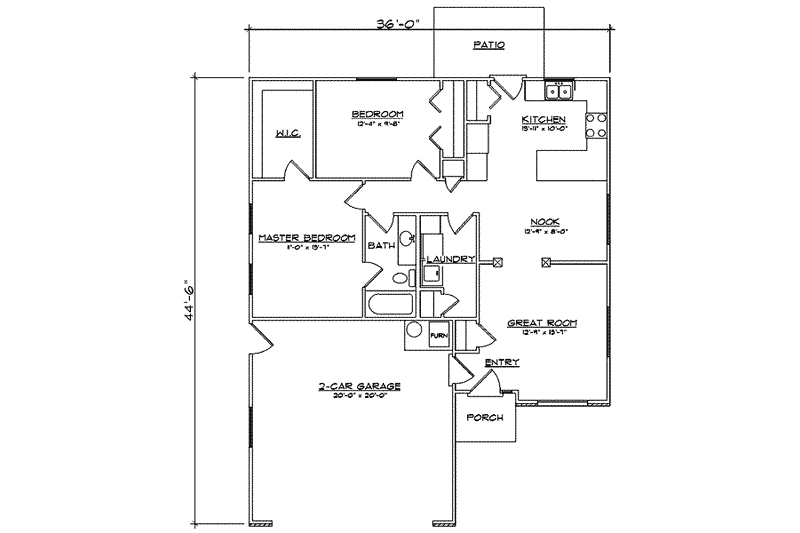

Main Floor : 998 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Main Ceiling : 9'
Primary Pitch : 6:12
Exterior Wall Framing
Framing : 2"x4"
Walk In Closet
Additional Room Features
Great Room Living Room
Suited For Narrow Lot
Suited For Vacation Home
What's Included In This Plan Set
All plans are drawn at ¼" scale or larger and include : IMPORTANT NOTE: Study Set Includes: floor plans (main / upper / basement (if available) ) - exterior elevations.» See important information before purchasing.
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Questions? Call 1-888-447-1946
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
One electronic set for bidding purposes only. Not a legal building set for construction.
Ideal for level lot, single layer concrete poured directly on grade.
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design:
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Receive an overlay sheet with suggested placement of lighting fixtures.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
