PLAN 928-92

Photographs may show modified designs.

Save
Home  /  Style  /  Craftsman

Key Specs


Plan Sq Ft

1038
sq ft

Plan Bedrooms

2
Beds

Plan Bathrooms

1.5
Baths

Plan Floors

2
Floors

Plan Garages

0
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Right-Reading Reverse
$195.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Subtotal
$995.00
Best Price Guaranteed*

Also order by phone: 1-888-447-1946
Cost-to-Build Estimates

Wow! Cost to Build Reports Only $4.99 with Code CTBHOLIDAY (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-888-447-1946
Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours: Mon - Fri 8:30 - 8:30 (EDT)

See our Terms & Conditions and Privacy Policy.

PLAN 928-92

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

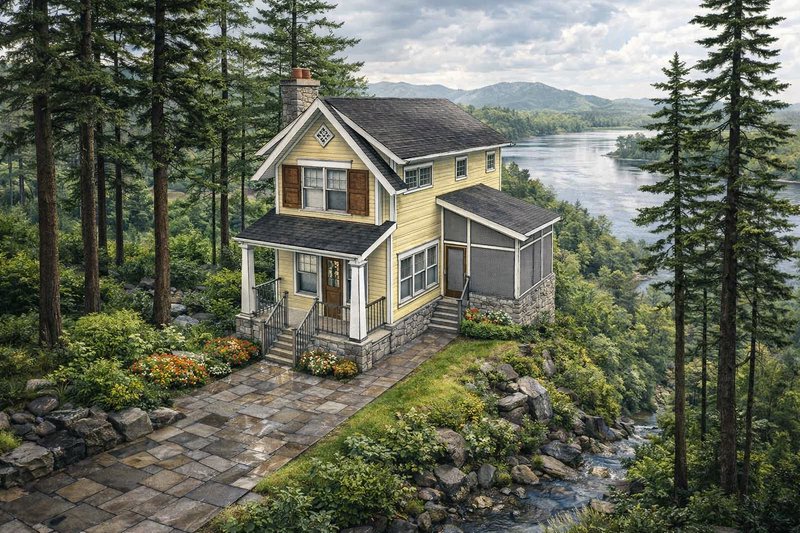

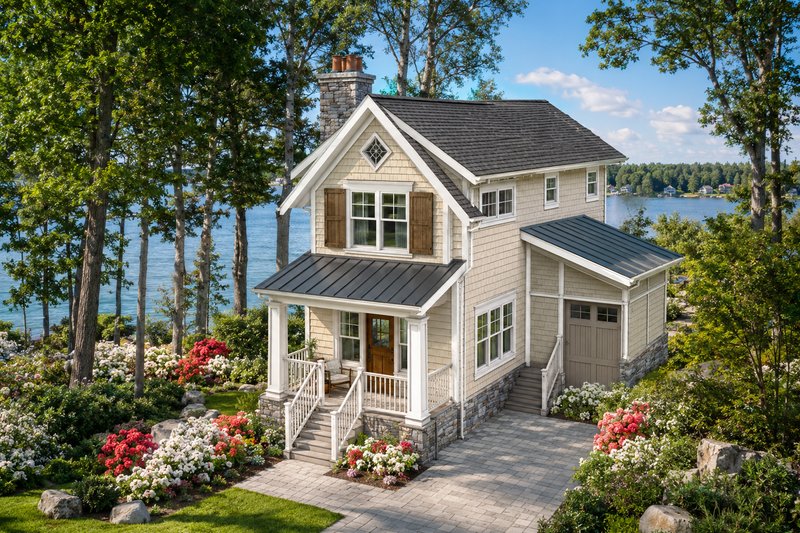

Character makes up for what this simple rectangle cottage lacks in size. “This plan is ideal for a small lakefront lot or place in the woods, for someone seeking a basic vacation home that won’t cost a fortune but definitely has charm,” said architect Wayne Visbeen, of Visbeen Associates, Inc. Intended first for traditional construction, it’s a plan that also could easily be built off-site, transported and efficiently put up in modular fashion. “There’s very sure momentum behind modular home design right now – it’s a trend we’re seeing even in the higher end home market,” noted Visbeen. Shown rising off a stone base for substance, Whistling Cove’s floor plan is straightforward: “From the front porch, you walk right into the living room (fireplace optional), which flows into the dining room – flanked here by a screened room – kitchen, and laundry area,” Visbeen said. “Up an L-shaped stairway, a simple hall and full bath separate a master bedroom with fireplace if desired and a second bedroom or bunkroom.” Although not a big home with storage, Visbeen said, this simple rectangular footprint can easily be expanded: “It’s good as is or a good place to start. There are a lot of options.” Outside, a false gable off this getaway’s steeper roof slope creates visual interest, while a shed roof over both the front porch and screened room offers inviting character. Other details including double-hung, cottage-style windows and a wood front door take plain our of the plan, “drawing attention instead to a small, simple home that’s well-proportioned and welcoming.”

Full Specs & Features


Dimension

Depth : 40'

Height : 27' 3"

Width : 26'

Area

First Floor: 552 sq/ft height 9'

Second Floor: 486 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone

Framing : Wood - 2x4

Bedroom Features

Fireplace

Upstairs Master Bedrooms

Kitchen Features

Breakfast Nook

Kitchen Island

Additional Room Features

Open Floor Plan

Vaulted / Cathedral Ceilings

Rooms

Bedroom 2:

175 sq/ft width 15' 4" x depth 11' 5"

Dining Room:

69 sq/ft width 9' 3" x depth 7' 6"

Kitchen:

92 sq/ft width 9' 3" x depth 10'

Living Room:

181 sq/ft width 15' x depth 12' 1"

Master Suite:

175 sq/ft width 15' 4" x depth 11' 5"

What's Included In This Plan Set


Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in the state of Michigan requires special permission from the Architect.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

» See important information before purchasing.
Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$995.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$2995.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x4:
$0.00
Wood 2x4

Additional Options

Right-Reading Reverse:
$195.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design:
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
