Full Specs & Features
Depth : 36'
Height : 22' 5"
Width : 26'

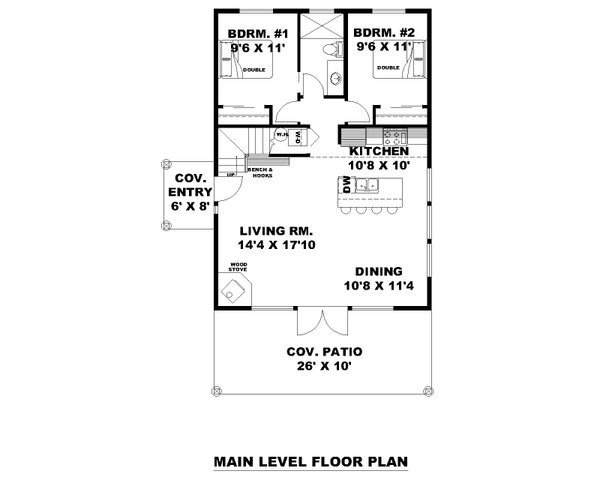

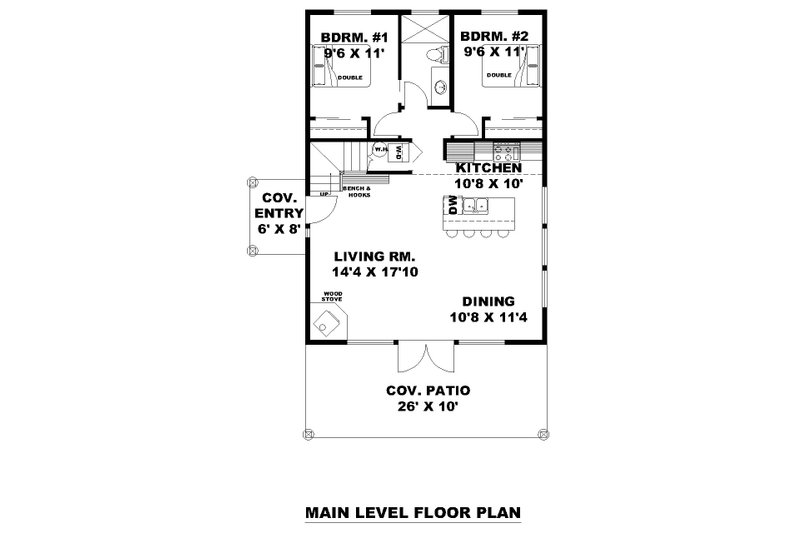

Main Floor : 936 sq/ft

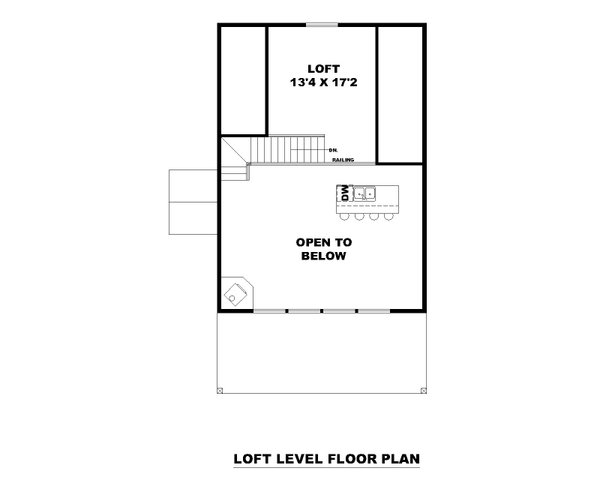

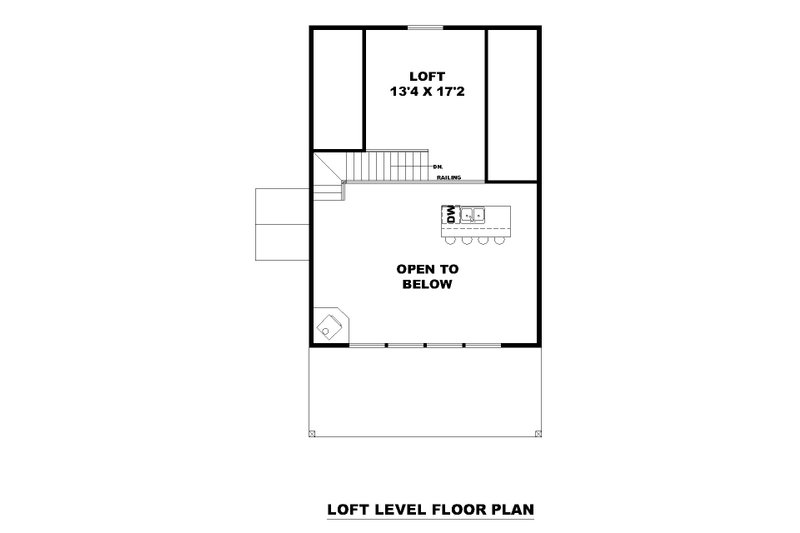

Upper Floor : 236 sq/ft
Ceiling Details : Main Level: 9'1" Great Area: 12'1" to 19'4" 2nd Level: 5'9" to 9'2"
Main Ceiling : 9' 1"
Primary Pitch : 7/12
Roof Framing : Truss
Exterior Wall Framing
Framing : 2x6
Additional Room Features
Main Floor Laundry
Covered Front Porch
Covered Rear Porch
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

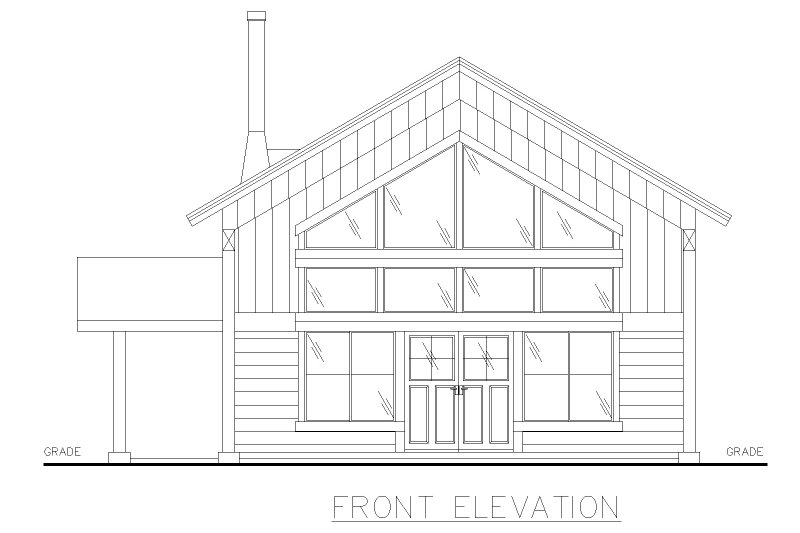

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
