This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Modify This Plan
Full Specs & Features
Depth : 28'
Height : 19'
Width : 52'
First Floor: 250 sq/ft height 9'
Garage: 926 sq/ft height 9'
Garage Ceiling : 9'
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Primary Pitch : 6:12
Roof Framing : 2x6
Roof Load : 25
Roof Type : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding/Shingle
Framing : 2"x6"
Additional Room Features
Hobby Rec Room Game Room
Covered Front Porch
Structural Information Provided
Structural 1st Floor Framing
Structural Roof Framing
180 sq/ft width 10' x depth 18'
823 sq/ft width 30' 6" x depth 27'
What's Included In This Plan Set
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
- Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

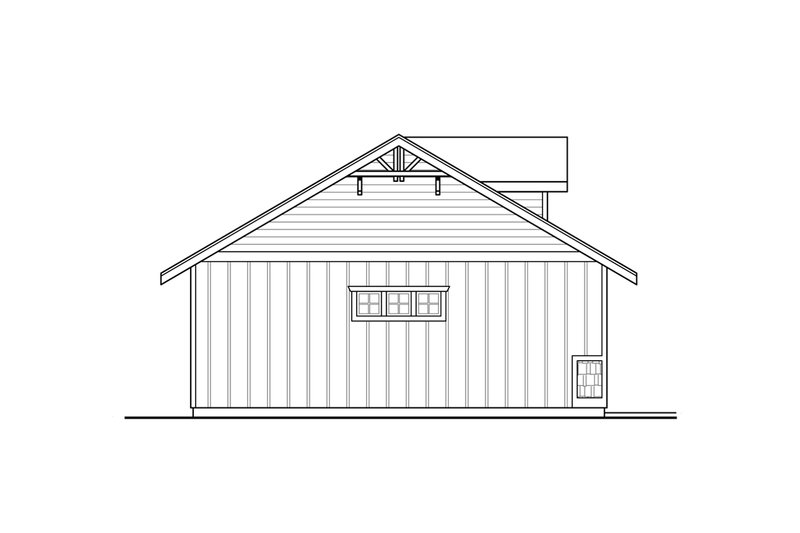

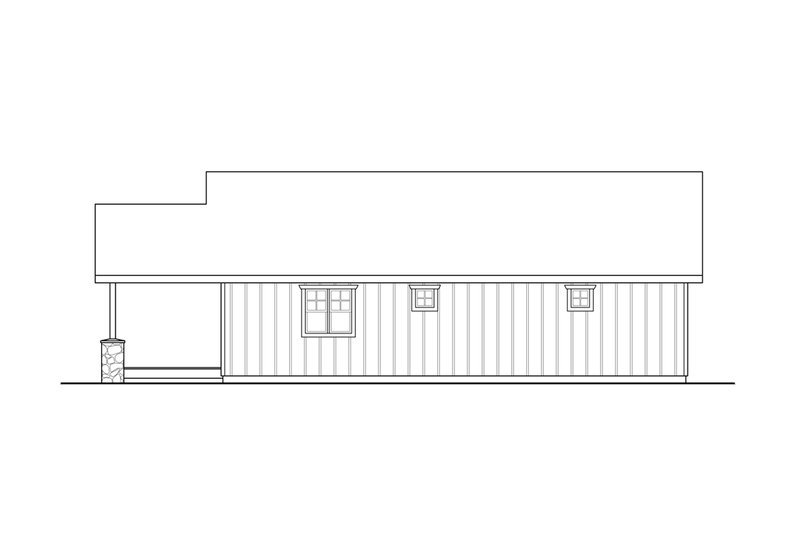

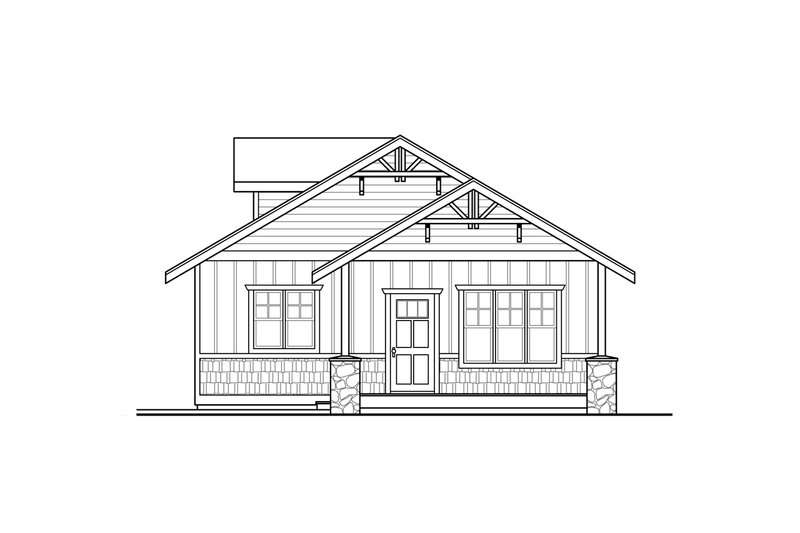

- Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

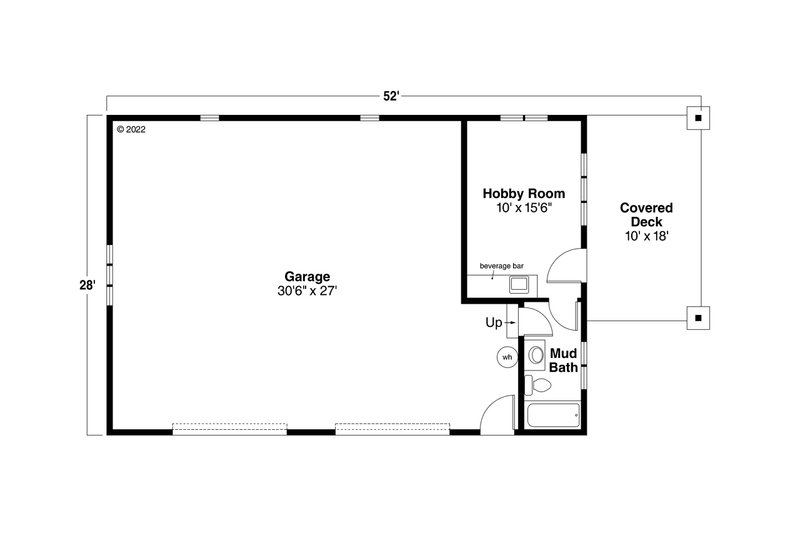

- Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
- Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
- Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
- Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
- Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
- Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
- Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
