Full Specs & Features
Depth : 34'
Height : 40'
Width : 28'
Basement Living: 102 sq/ft height 9'
Bonus: 104 sq/ft
First Floor: 586 sq/ft height 9'
Second Floor: 499 sq/ft height 8'
Primary Pitch : 14:12
Roof Framing : Truss
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Upstairs Master Bedrooms
Kitchenette Wet Bar
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Open Floor Plan
Vaulted / Cathedral Ceilings
Covered Front Porch
Covered Rear Porch

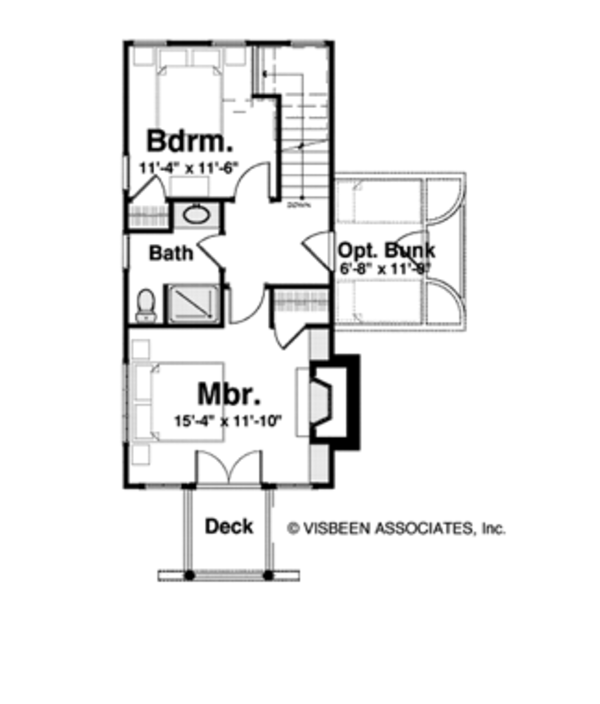

width 11' 4" x depth 11' 6"
width 6' 8" x depth 11' 8"

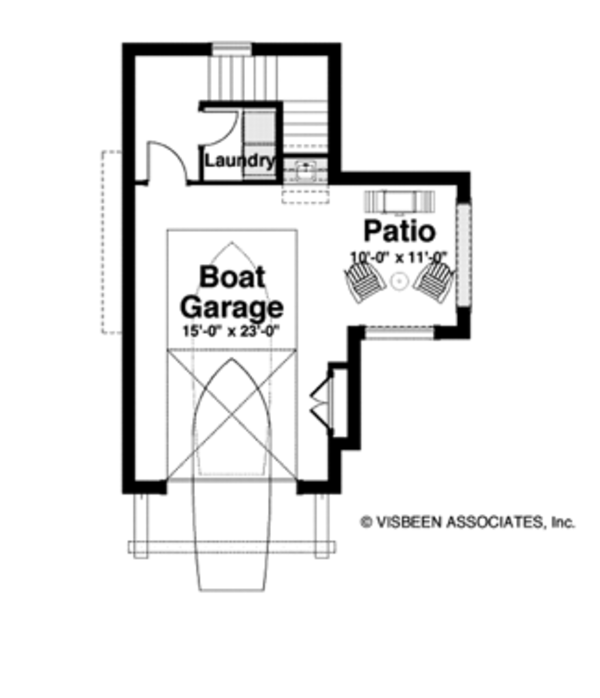

width 15' x depth 23'

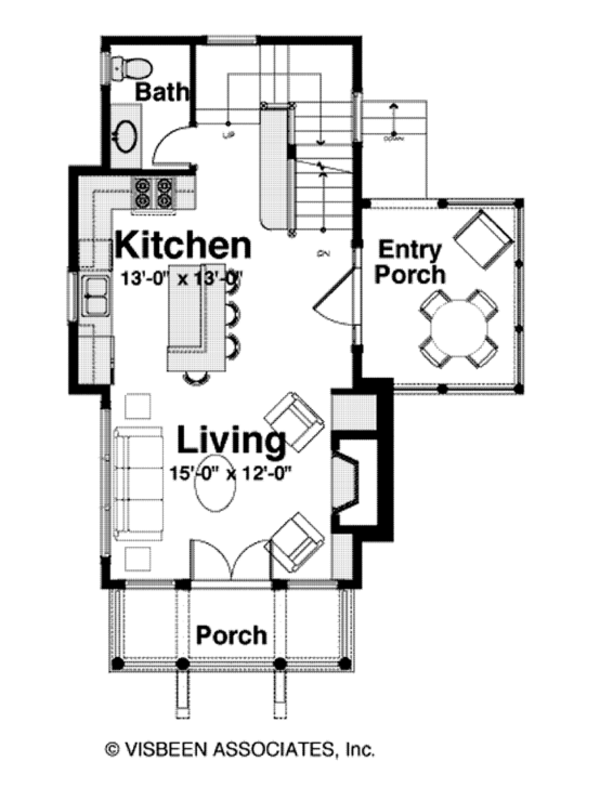

width 13' x depth 13'
width 15' x depth 12'
width 15' 4" x depth 11' 10"
width 10' x depth 11'
What's Included In This Plan Set
Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in the state of Michigan requires special permission from the Architect.
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
