PLAN 417-582

Home > Style > Mediterranean

Key Specs

1188
sq ft

4
Beds

1.5
Baths

1
Floors

0
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This four-bedroom home is absolutely perfect for any family. Enter to a tiled foyer with a coat closet and an open family room. The kitchen and dining area combine for convenience and include a hidden laundry area. A long hallway begins with a full bath and a powder room to the left and two family bedrooms on each side. Bedrooms 1 and 3 contain double-door closets and all four bedrooms feature double-hung windows for a pleasant view of the outdoors. Access the backyard from the kitchen.

Floor Plans

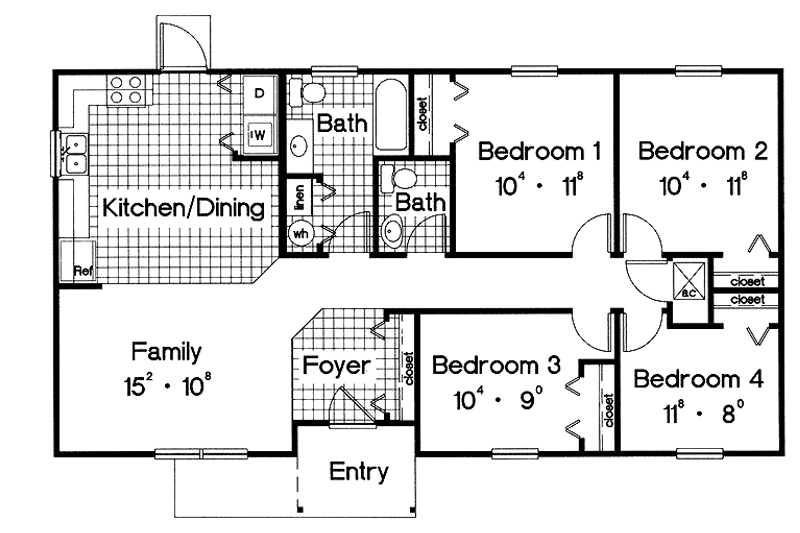

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 25' 4"

Height : 13'

Width : 47' 6"

Area

First Floor: 1188 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 5:12

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : Wood - 2x4

Bedroom Features

Guest Suite

Additional Room Features

Family Room Keeping Room

Rooms

Bedroom 2:

120 sq/ft width 10' 4" x depth 11' 8"

Bedroom 3:

92 sq/ft width 10' 4" x depth 9'

Bedroom 4:

93 sq/ft width 11' 8" x depth 8'

Dining Room:

72 sq/ft width 9' x depth 8'

Kitchen:

177 sq/ft width 11' 8" x depth 15' 3"

Living Room:

160 sq/ft width 15' 2" x depth 10' 7"

Master Bathroom:

93 sq/ft width 8' x depth 11' 8"

Master Bedroom:

120 sq/ft width 10' 4" x depth 11' 8"

Utility Room:

17 sq/ft width 3' x depth 5' 8"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
